Road course

3D print Circuit de Barcelona-Catalunya

Circuit de Barcelona-Catalunya on one print: a 1.3 by 1.5 km map of the 4.657 km circuit, with the track in its own color and the buildings, roads and terrain around it.

Print this track Free, in your browser. Exports a slicer-ready 3MF.

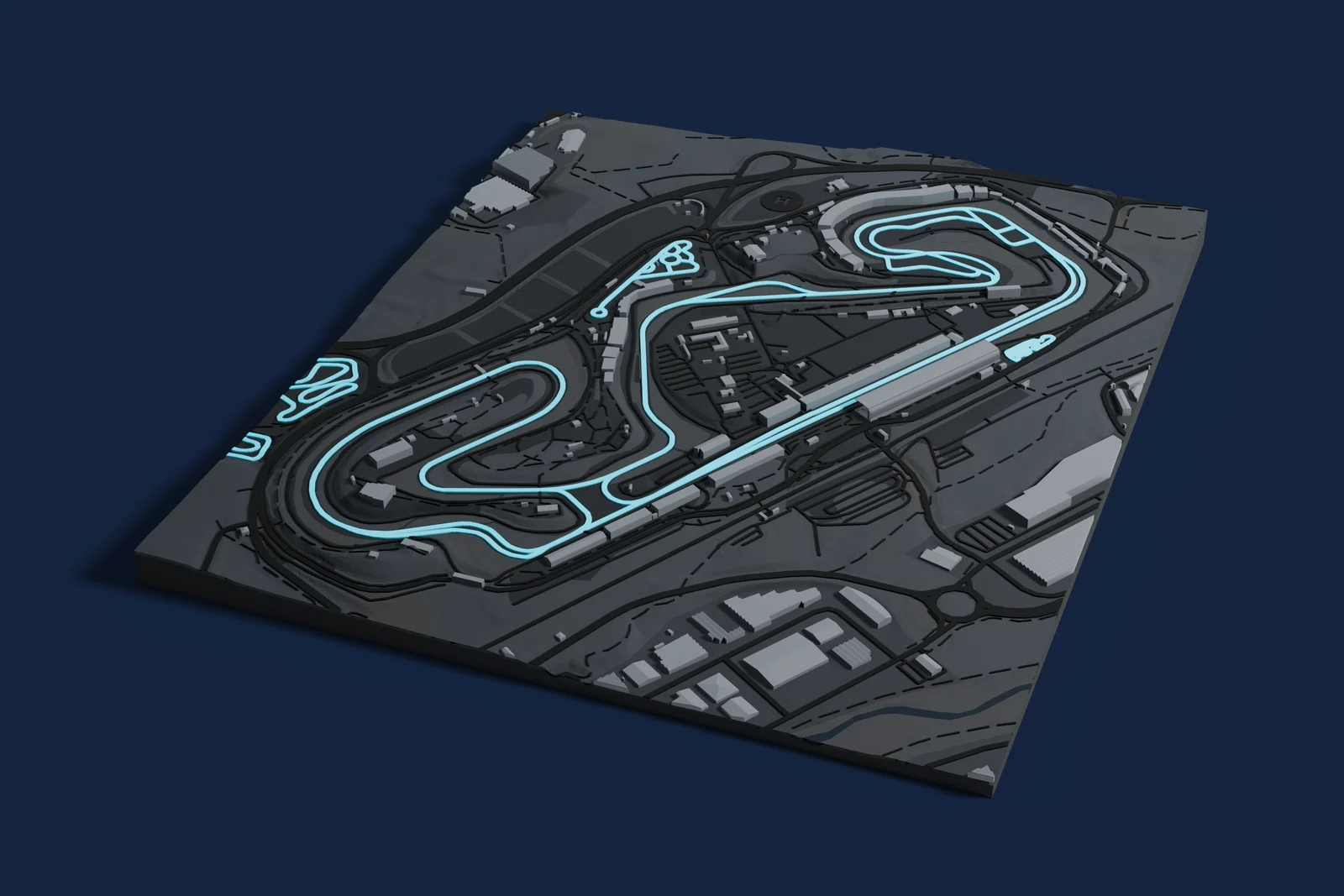

Render of a 3D printed map of Circuit de Barcelona-Catalunya, the track in cyan on a dark grey model of the land and buildings around it.
Studio render of a 160 mm print of Circuit de Barcelona-Catalunya in dark grey with a cyan track, from the 3MF this page's link exports. Pick your own colors in the generator.
Location
Barcelona, Catalonia, Spain
Type
Road course
Opened
1991
Lap length
4.657 km (2.894 mi)
Turns
14
Racing here
Formula One, Grand Prix motorcycle racing, FIA World Endurance Championship, European Le Mans Series
Map of the Circuit de Barcelona-Catalunya track as it prints, north at the top
4.657 km lap · 14 turns Drawn from the OpenStreetMap lines the print uses

On the print

1.3 by 1.5 km, on a 160 mm print

The track in its own color
The racing surface is its own part in the 3MF with its own color, so the lap stands out from the roads around it. Change the color, or print the whole map in one filament.
The footprint
The print opens in City mode on a 1.3 by 1.5 km rectangle around the mapped track, with a margin on every side. Move or resize it in the generator to take in more of the area.

Common questions

Is the Circuit de Barcelona-Catalunya 3D print free?

Yes. The generator runs in your browser and exports a 3MF file you can open in any common slicer. There is no account or payment.

Does the print show the whole track?

Yes. It opens on a 1.3 by 1.5 km rectangle around the track as OpenStreetMap maps it, so the 4.657 km circuit fits with some of the land around it.

Are the buildings around the track included?

Yes. Grandstands, pit buildings and everything else mapped nearby print with the rest of the map, at their mapped heights where those are known.

Can I get an STL instead of a 3MF?

The generator exports 3MF, which keeps each color as its own part. Any slicer can open it and save an STL if you need one.

Sources: Wikipedia: Circuit de Barcelona-Catalunya, Wikidata: Circuit de Barcelona-Catalunya, OpenStreetMap: Circuit de Barcelona-Catalunya, Official website
