3D print Narendra Modi Stadium
A free, printable model of the stadium and the roads, fields and buildings around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About Narendra Modi Stadium
Narendra Modi Stadium stands in Motera, in the city of Ahmedabad in Gujarat, India, close to the Sabarmati River. Its total capacity of 132,000 makes it the largest cricket stadium in the world, and the largest stadium of any kind in the world by capacity. The Gujarat Cricket Association owns it, and it has hosted the 2023 Cricket World Cup final. It is named after Narendra Modi, who earlier served as Chief Minister of Gujarat and as president of the Gujarat Cricket Association.
The stadium replaced Sardar Patel Gujarat Stadium, which was demolished in 2015. Populous designed the new building and Larsen and Toubro built it. Construction formally began on January 16, 2017, and was finished in February 2020. It first opened to the public on February 24, 2020, and was officially inaugurated a year later, on February 24, 2021, hours before the first international match played there, a day-night Test between India and England using a pink ball.
The site covers 63 acres and has four entry points. Most stands have two tiers, with a three-tier main pavilion. Y-shaped columns carry the two-tier sections from below, so no pillars block the view of the field. An LED lighting system runs around the inner edge of the roof in place of floodlights, and the roof was kept light and apart from the seating bowls to improve earthquake resistance.
How it prints
Make this print opens the generator on a 750 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 12 mm | 1:4,688 |
| 200 mm | 15 mm | 1:3,750 |
| 256 mm | 20 mm | 1:2,930 |
-

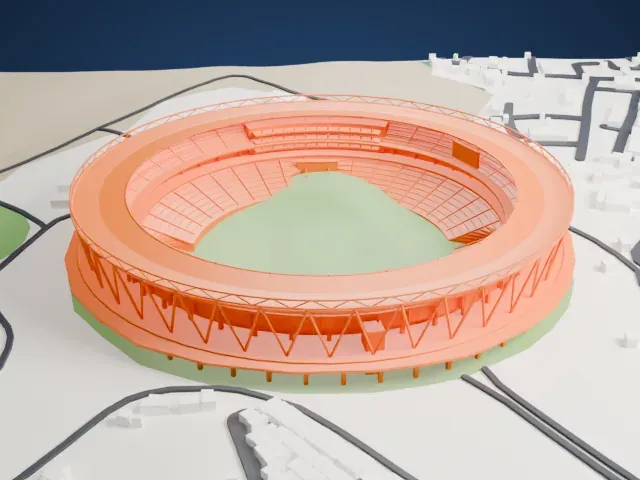

North
-

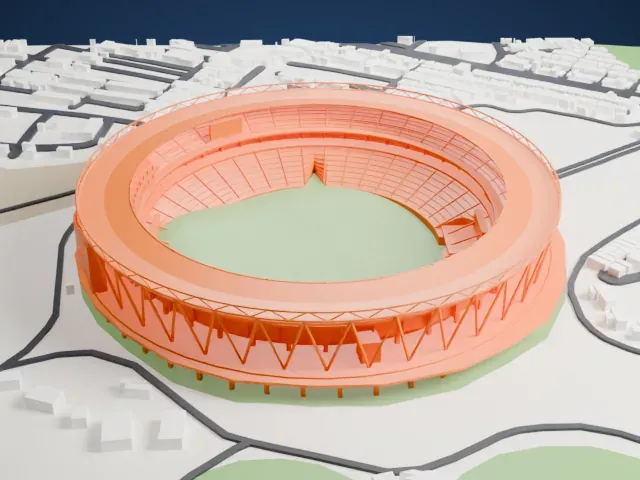

East
-
South
-

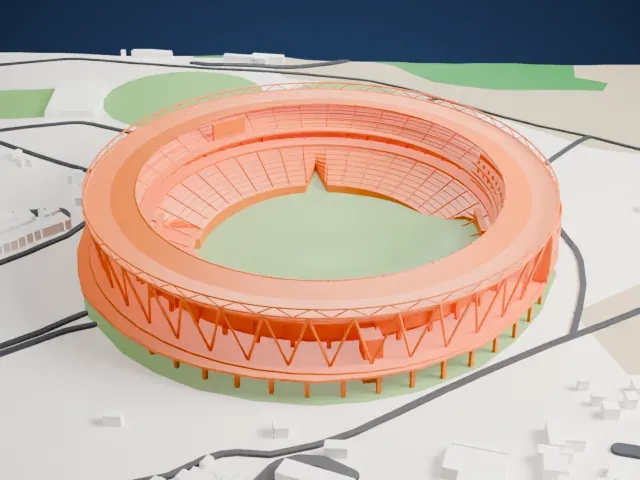

West

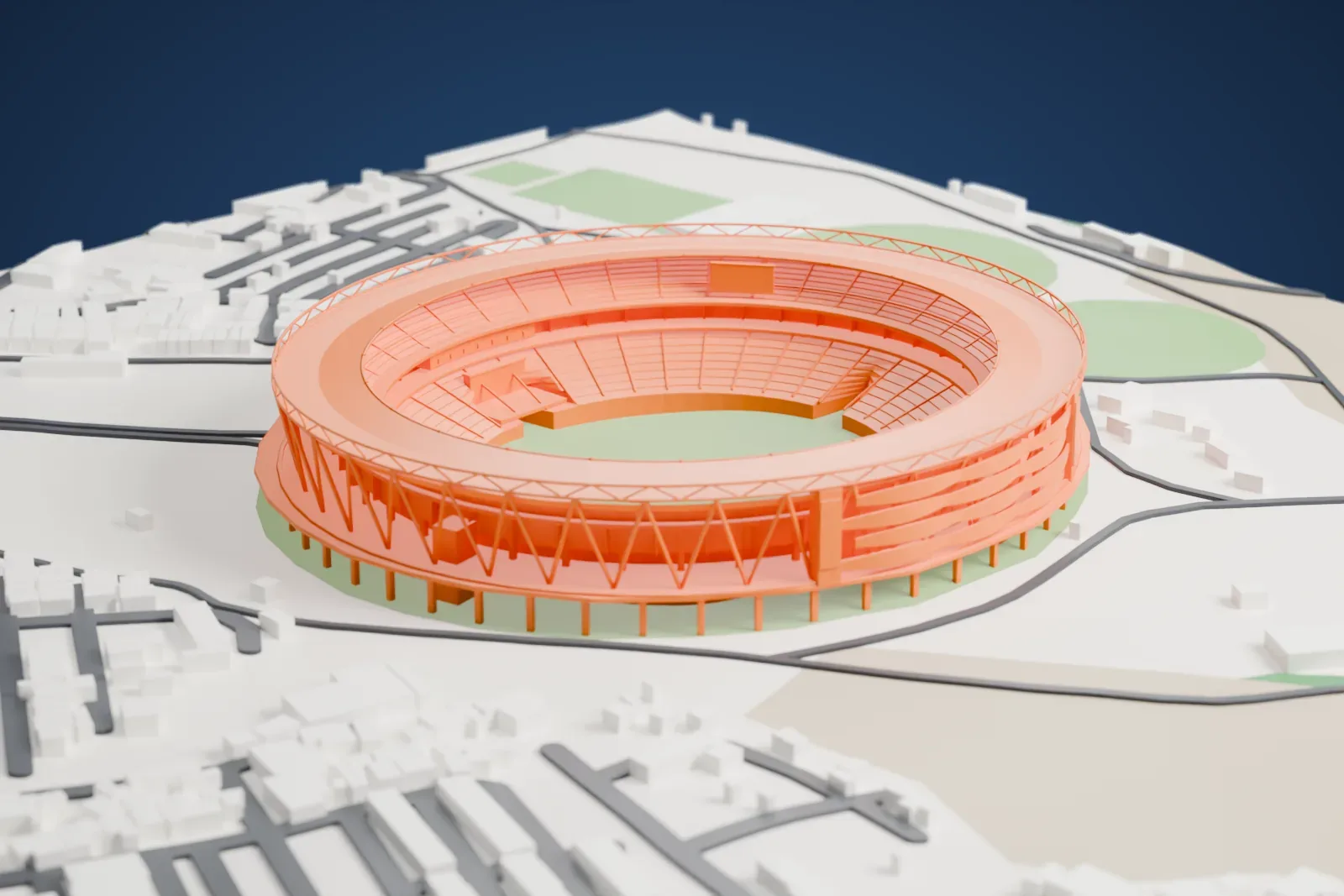

- A ring of slanted supports
- The outer wall is a ring of slanted struts under a thin roof rim. Print friendly adapts them to the print scale; Full detail keeps every strut, which suits a larger print or a fine nozzle.
- A wide, open bowl
- The seating bowl is open to the sky, so the stepped tiers are visible from above. A bigger print size shows them more clearly, and layers of 0.12 to 0.16 mm keep the steps crisp.
- One piece with the ground
- Narendra Modi Stadium is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Narendra Modi Stadium takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
Narendra Modi Stadium is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a Narendra Modi Stadium STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. Narendra Modi Stadium grows with the print: about 12 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
