3D print Lake Huron down to its bed

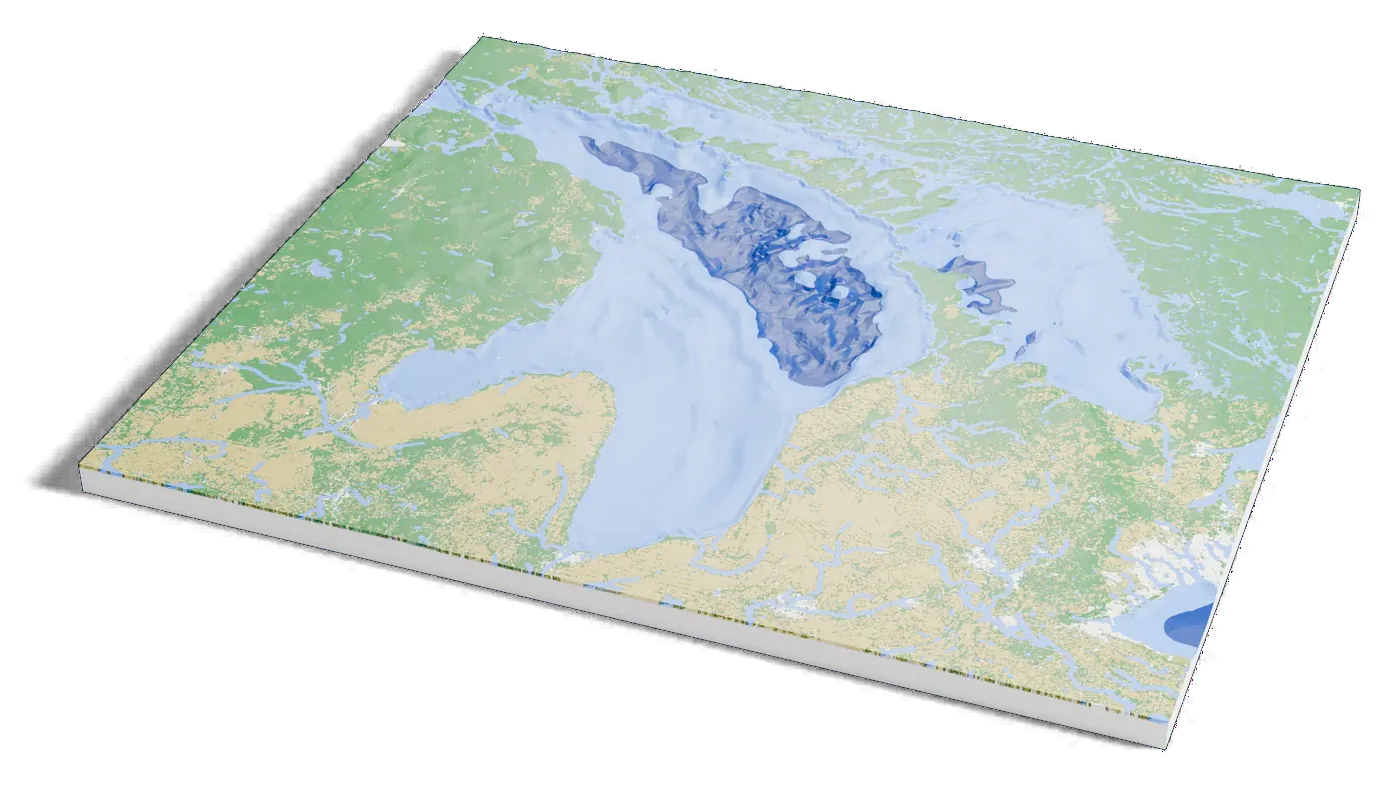

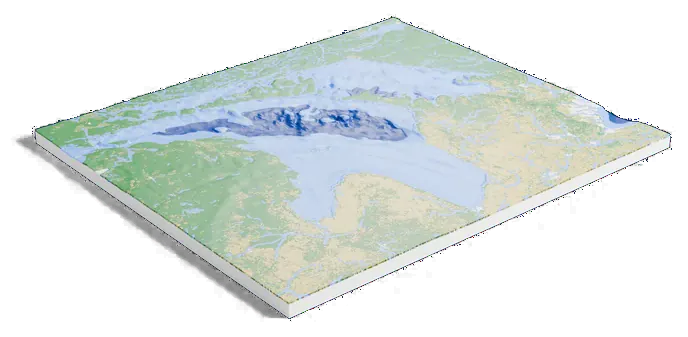

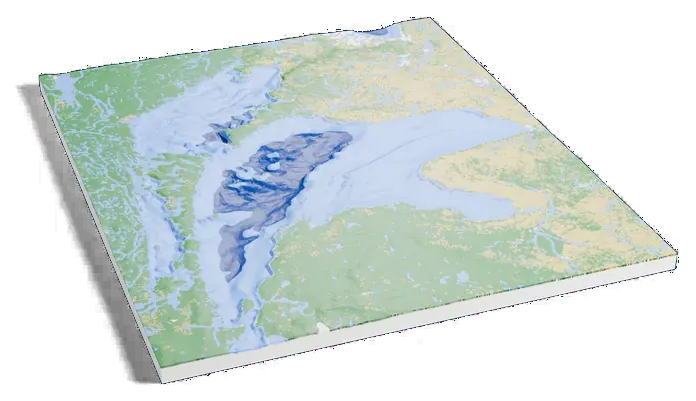

Lake Huron with the water taken away: its bed from NOAA’s Great Lakes bathymetry, shaded darker where it is deeper, and the land around it in relief. Open it in the generator, change the size or colors, and export a slicer-ready 3MF.
229 m of water, 3.3 mm on your shelf
The print covers 449 by 400 km. On a 160 mm print the deepest point sits 3.3 mm below the shore.
| Deepest point | Scale | |
|---|---|---|
| 160 mm default | 3.3 mm | 1:2,800,000 |
| 200 mm | 4.1 mm | 1:2,240,000 |
| 256 mm | 5.2 mm | 1:1,750,000 |
- Real depths
The bed comes from NOAA’s Great Lakes bathymetry, a grid about 90 m apart that NOAA compiled from depth soundings. Water depth: Sea floor drains the water away and prints the bed in its place.
- 40 times deeper than life
At true scale the deepest point would sit 0.1 mm below the water line on a 160 mm print, too little to see. The print opens with the Elevation multiplier at 8 and the Sea floor depth scale at 5, so the bed is 40 times deeper than life and the land 8 times taller.
- Shades of depth
The bed prints in four shades of the water color, lighter in the shallows and darker in the deeps, each its own filament. Change the number of shades on the Water tab.
About Lake Huron
Lake Huron is shared by the Canadian province of Ontario on the north and east and the U.S. state of Michigan on the south and west. Its northern parts include the North Channel and Georgian Bay, and Saginaw Bay cuts into its southwest corner.
It is the eastern half of Lake Michigan–Huron, joined to Lake Michigan at the Straits of Mackinac. Lake Superior drains into it through the St. Marys River, and it drains south through the St. Clair River toward Lake Erie.
Next to the others
Lake Huron next to the other lakes
Common questions
Is the Lake Huron depth map free?
Yes. The generator runs in your browser and exports a 3MF file you can open in any common slicer. There is no account or payment.
Are the depths real?
Yes. The bed is read from NOAA’s Great Lakes bathymetry, a grid about 90 m apart that NOAA compiled from depth soundings, when the model is made. It is not estimated from the land around the lake.
Is the lake printed at its true depth?
No. It opens 40 times deeper than life, about 3.3 mm at the deepest point on a 160 mm print, because at true scale the bed would be only 0.1 mm deep. Lower the Elevation multiplier or the Sea floor depth scale for a flatter model.
Can I get an STL instead of a 3MF?
The generator exports 3MF, which keeps each color as its own part. Any slicer can open it and save an STL if you need one.
