3D print the Atomic Bomb Dome
A free, printable model of the Atomic Bomb Dome beside a river, with park paths and nearby buildings, generated from real map data in your browser.
-
North
-
East
-
South
-
West
- On a 160 mm print
- 7 mm
- Scale
- 1:3,750
7 mm tall on a 160 mm print
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- Retain the open dome lattice

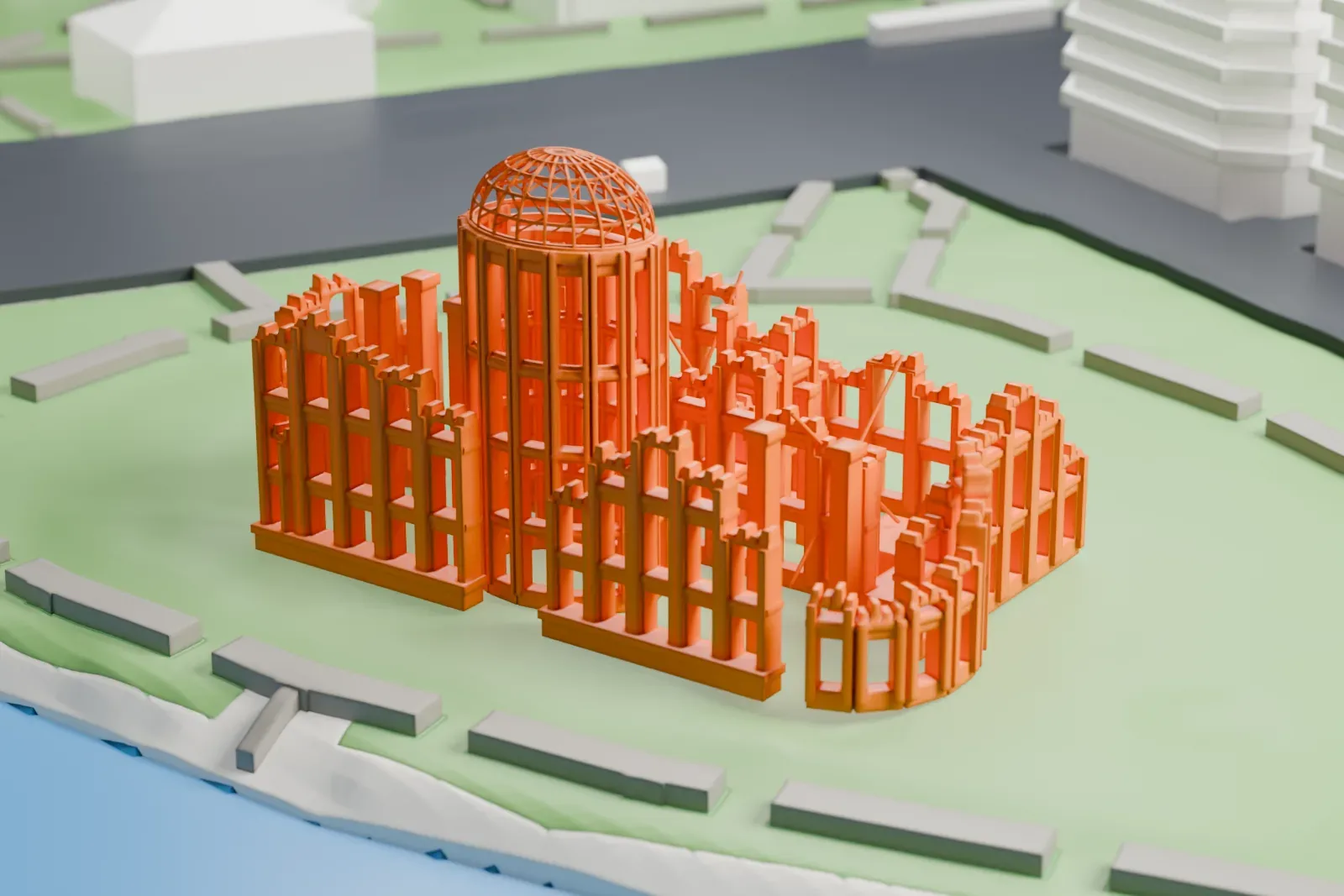

The dome is an open framework of thin ribs. Use Print friendly to adapt the lattice at small sizes, or choose a larger print and Full detail to retain every modeled feature.
- Keep the broken walls crisp
Jagged wall tops, window openings, and slender interior braces make this model detailed. A layer height of 0.12–0.16 mm helps retain their definition; print slowly with cooling for the thin uprights.
- One piece with the ground
The Atomic Bomb Dome is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. The Atomic Bomb Dome takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About the Atomic Bomb Dome
The Atomic Bomb Dome is a preserved ruin within Hiroshima’s Peace Memorial Park in Japan. Also called the Hiroshima Peace Memorial or Genbaku Dome, it began as an exhibition building designed by Czech architect Jan Letzel. Construction finished in April 1915, and the hall admitted the public that August. It stood beside Aioi Bridge in a large business district and hosted exhibitions focused on art and education. In 1933, it took the name Hiroshima Prefectural Industrial Promotion Hall.
Parts of the building survived Hiroshima’s atomic bombing on August 6, 1945. The exposed metal framework crowning the building gave rise to the Genbaku Dome name. As Hiroshima rebuilt, the skeletal remains were retained, and the city council resolved in 1966 to preserve them permanently. Repairs have included an internal metal frame to improve stability. The ruin commemorates people killed in the bombing and recalls nuclear warfare’s destructive effects. It joined UNESCO’s World Heritage List in December 1996.
About this model
The Atomic Bomb Dome is one of more than 4,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
