3D print Fenway Park
A free, printable model of Fenway Park and the streets, buildings and patches of green around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About Fenway Park
Fenway Park, in Boston, Massachusetts, sits close to Kenmore Square. The Boston Red Sox of Major League Baseball have played there since 1912. Team owner John I. Taylor bought the land in 1911 and developed it into a larger stadium. The architect was James E. McLaughlin, and the Charles Logue Building Company served as general contractor. The first game was played on April 20, 1912, when Boston won an 11-inning contest against the New York Highlanders, 7–6.
Like many older ballparks, Fenway Park was built on an asymmetrical block, which gave the field asymmetrical dimensions too. A major reconstruction began in 1933 after Tom Yawkey bought the team and the park, and by Opening Day 1934 the park had taken on its basic appearance and layout. The Green Monster in left field was finished at 37 feet high; it took the place of Duffy's Cliff, which was 10 feet tall, and of the original wall of 25 feet.
Among MLB ballparks still in use, it is the oldest, and its age and cramped site in the dense Fenway–Kenmore neighborhood produced quirks such as the Triangle and Pesky's Pole. The World Series has been played there 11 times. The park has also seen professional football, concerts, soccer and hockey, including the NHL Winter Classic in 2010 and 2023. It joined the National Register of Historic Places on March 7, 2012.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 13 mm | 1:3,750 |
| 200 mm | 16 mm | 1:3,000 |
| 256 mm | 20 mm | 1:2,344 |
-

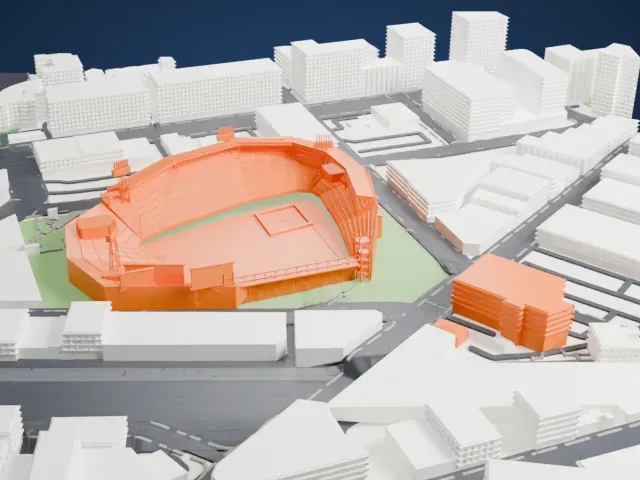

North
-

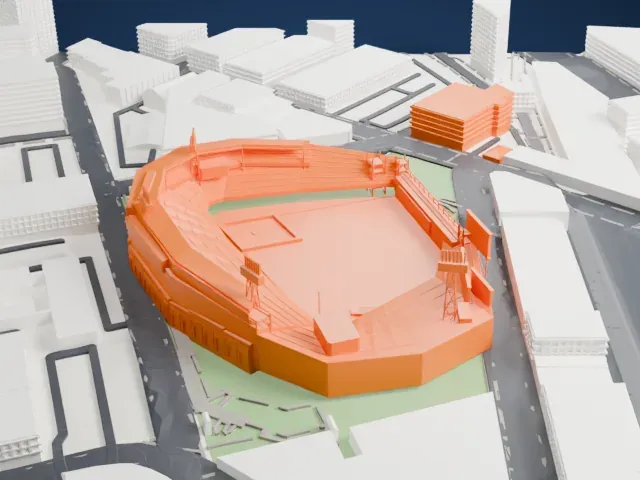

East
-
South
-

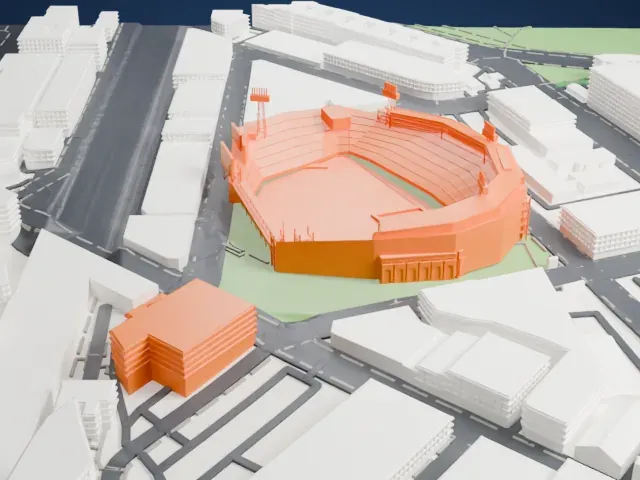

West
- Slender light towers
- Light towers stand up as thin masts around the stands. Layers of 0.12 to 0.16 mm keep their tops crisp, and printing slowly helps these tall, narrow parts hold together.
- Tiered seating bowl
- The stands step down in many closely spaced tiers around the field. Print friendly adapts these small steps to your print scale; Full detail keeps them, which suits a larger print.
- One piece with the ground
- Fenway Park is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Fenway Park takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
Fenway Park is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a Fenway Park STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. Fenway Park grows with the print: about 13 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
