3D print First Horizon Park

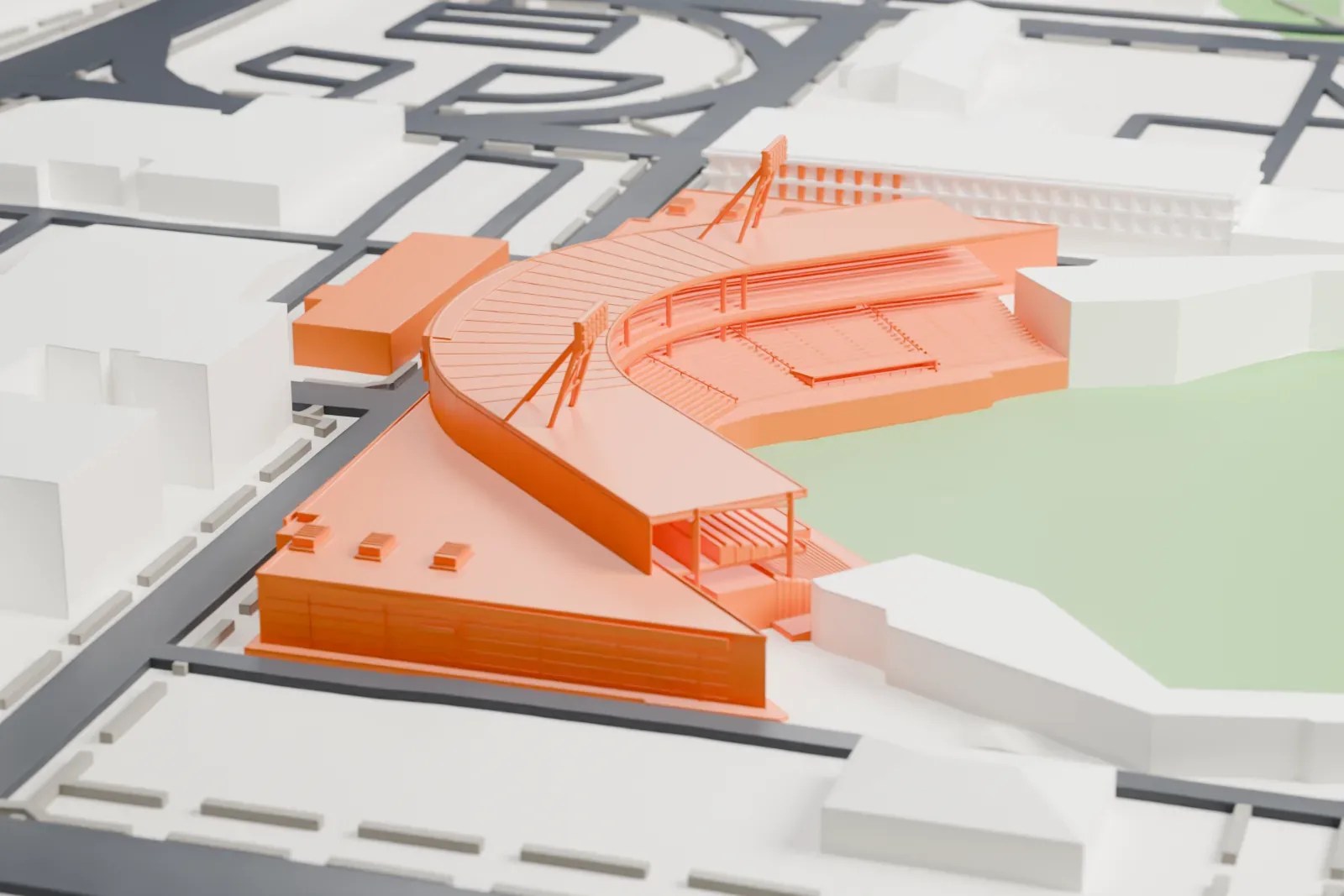

A free, printable model of First Horizon Park, a curved ballpark grandstand with two slim light towers around a green field, among downtown blocks, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About First Horizon Park
In downtown Nashville, Tennessee, First Horizon Park (once First Tennessee Park) serves as a baseball park. It is home to the Nashville Sounds of the International League, a Minor League Baseball team. The ballpark first opened on April 17, 2015, with room for up to 10,000 people, and replaced Herschel Greer Stadium, the Sounds' home from their 1978 founding through 2014.
The park was built where Sulphur Dell once stood, a minor league ballpark used from 1885 to 1963. It lies between Third Avenue and Fifth Avenue to the east and west, and Junior Gilliam Way and Harrison Street bound it on the north and south. Fourth Avenue lines up with second base, the pitcher's mound and home plate. Looking south from the stadium, you can see the Nashville skyline. Populous was the architectural firm that identified Sulphur Dell as one of three possible sites, and ground was broken on January 27, 2014.
The design draws on Nashville's baseball and music heritage, with imagery from Sulphur Dell, local players and teams of the past, and country music. The most distinctive feature is a guitar-shaped scoreboard that follows the guitar scoreboard Greer Stadium originally had. A wide concourse runs all the way around the stadium, with a view of the field from anywhere along it. The facility earned LEED silver certification in April 2015, and a concessions building along right field has a green roof of 2,800 sq ft (260 m2).
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 9 mm | 1:3,750 |
| 200 mm | 11 mm | 1:3,000 |
| 256 mm | 14 mm | 1:2,344 |
-

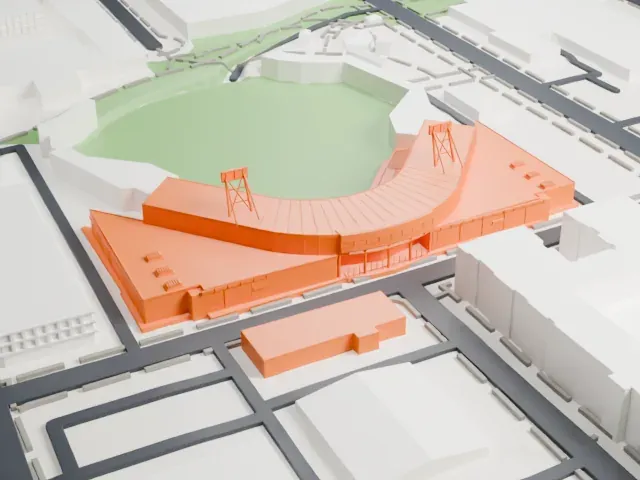

North
-

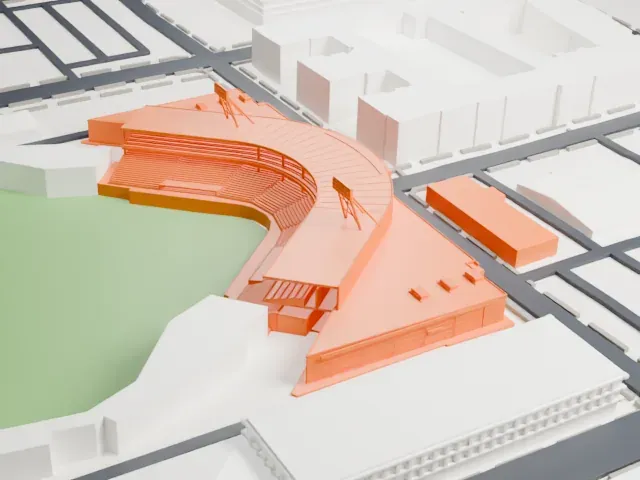

East
-
South
-

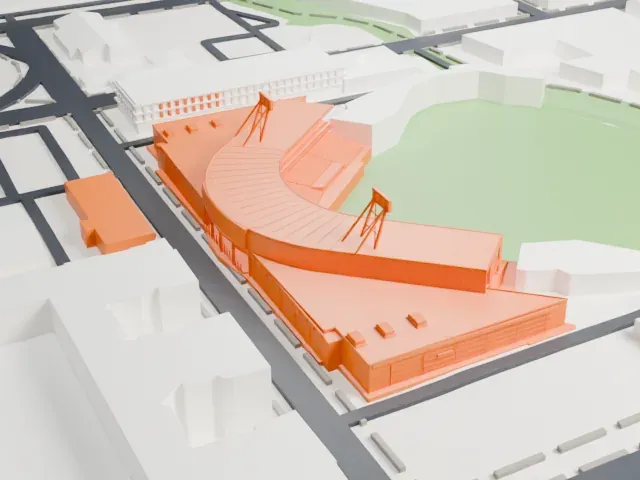

West
- Slim light towers
- Two thin lattice-like light towers rise above the stands. Printing slowly and using layers of 0.12 to 0.16 mm helps keep them intact, and a larger print keeps them sturdier.
- Curved rows of seats
- The grandstand curves around the field with many fine rows. Print friendly adapts them to the print scale; Full detail keeps every row, which suits a larger print or a fine nozzle.
- One piece with the ground
- First Horizon Park is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. First Horizon Park takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
First Horizon Park is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a First Horizon Park STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. First Horizon Park grows with the print: about 9 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
