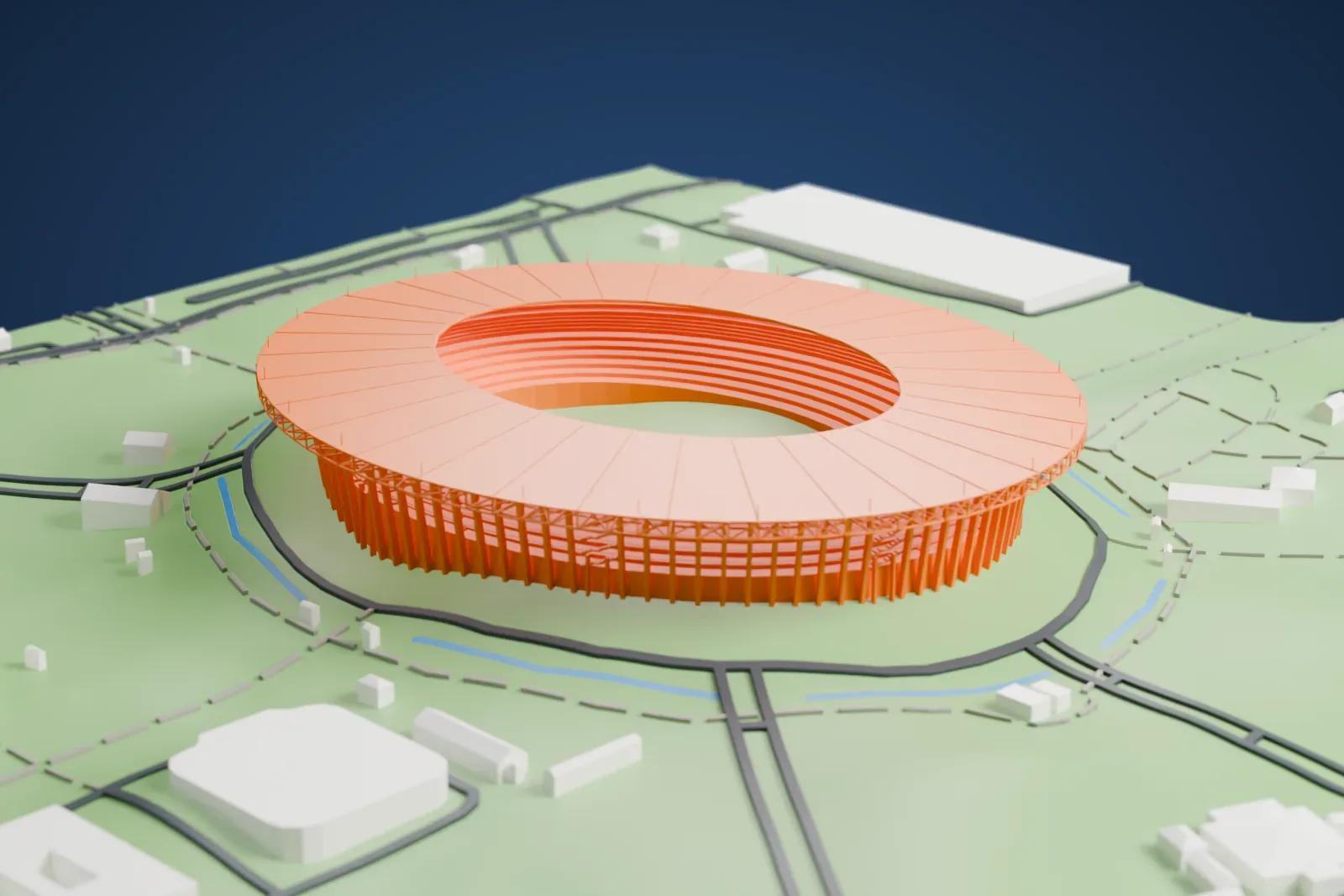

3D print Gelora Bung Karno Stadium
A free, printable model of Gelora Bung Karno Stadium, its wide ring-shaped roof and ring of slim columns, with the roads and parkland around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About Gelora Bung Karno Stadium
Gelora Bung Karno Main Stadium, often shortened to GBK, is a stadium for many uses in Central Jakarta, Indonesia. It was formerly called Senayan Main Stadium and sits within the Gelora Bung Karno Sports Complex. Football is its main use, and it is usually where the Indonesia national football team and the Super League club Persija Jakarta play. It carries the name of Sukarno, Indonesia's first president, whose idea started the whole sports complex.
Jakarta was named host of the 1962 Asian Games in 1958, and the one requirement it had yet to meet was a multi-sport complex. Sukarno first proposed a site near M. H. Thamrin Boulevard, but the architect Friedrich Silaban argued that a sports complex in the future downtown area could cause massive traffic congestion. Sukarno then chose the Senayan area, about 300 hectares. Construction began on February 8, 1960 and finished on July 21, 1962, in time for the Asian Games the following month. The Soviet Union provided a special loan that covered part of the cost.
It is well known for a gigantic ring-shaped facade, called temu gelang, and is described as the world's first football stadium with a circular roof; the design was meant to keep the sun off spectators and add grandeur. The idea was Sukarno's own, and he insisted on it although Soviet architects hesitated over the unusual design. The stadium first held 110,000 people, was cut to 88,306 ahead of the 2007 AFC Asian Cup, then went to 77,193 single seats in renovations for the 2018 Asian Games, when it hosted the ceremonies and athletics.
How it prints
Make this print opens the generator on a 750 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 9 mm | 1:4,688 |
| 200 mm | 11 mm | 1:3,750 |
| 256 mm | 14 mm | 1:2,930 |
-

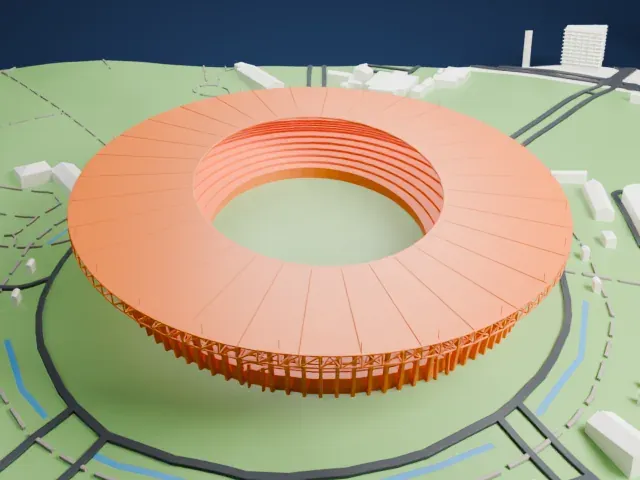

North
-

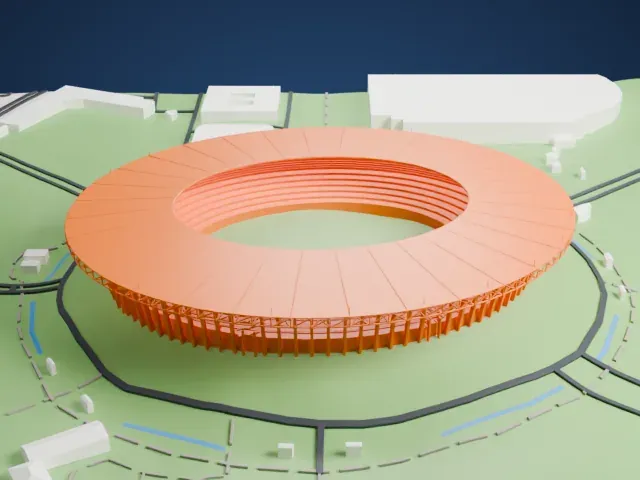

East
-
South
-

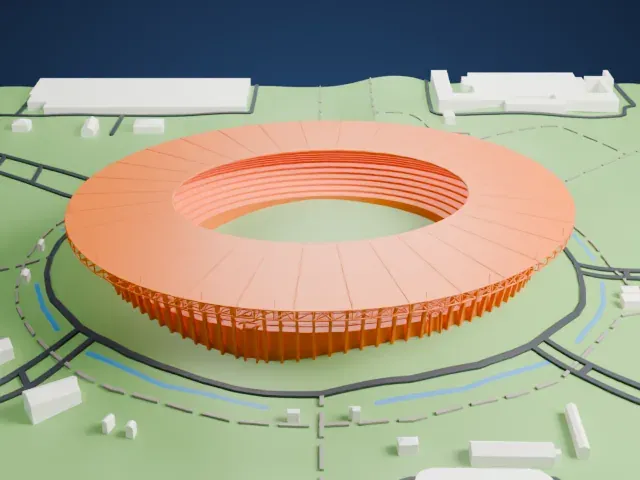

West
- Dense ring of slim columns
- A close ring of slim columns and struts surrounds the stands under the roof. Print friendly adapts thin parts like these to your print scale; Full detail keeps them, best printed slowly with good cooling and 0.12 to 0.16 mm layers.
- Wide roof overhang
- The ring roof overhangs the stands and carries tiny poles on its edge. A larger print keeps these projecting details easier to read.
- One piece with the ground
- Gelora Bung Karno Stadium is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Gelora Bung Karno Stadium takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
Gelora Bung Karno Stadium is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a Gelora Bung Karno Stadium STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. Gelora Bung Karno Stadium grows with the print: about 9 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
