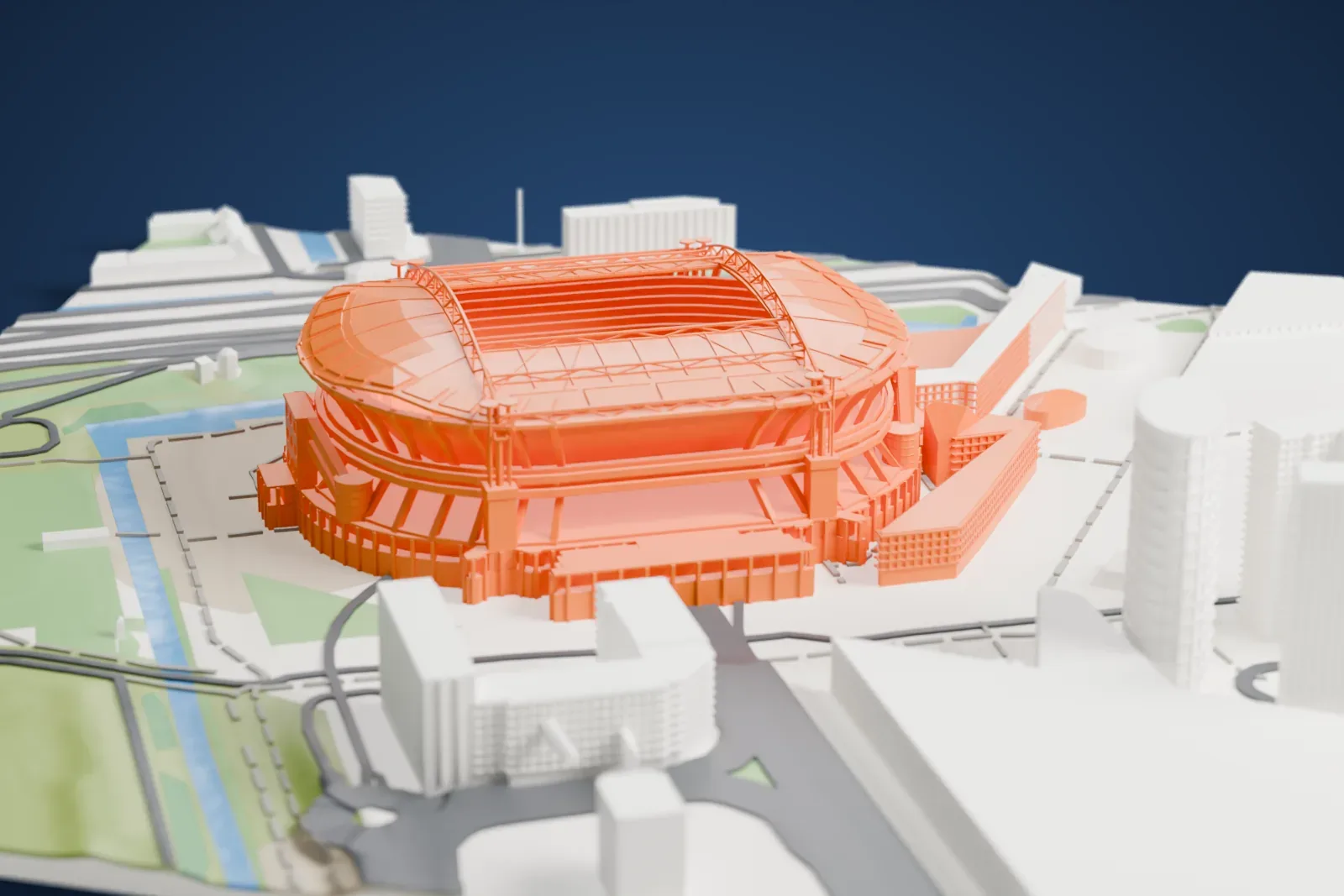

3D print Johan Cruyff Arena
A free, printable model of the Johan Cruyff Arena and the canal, green fields and large buildings around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About Johan Cruyff Arena
The Johan Cruyff Arena is the home stadium of the football club Ajax and the main stadium of Amsterdam, the Dutch capital. Construction ran from 1993 to 1996 and cost the equivalent of €140 million; it is the biggest stadium in the Netherlands. Queen Beatrix opened it officially on August 14, 1996, under the name Amsterdam Arena. When the 2018–19 football season began, it was renamed to honor Johan Cruyff, a Dutch footballer who died in 2016. Its original architect was the Dutchman Rob Schuurman.
The stadium pairs a retractable roof with a grass field, which caused trouble at first: grass struggled to grow in the shade under the open roof, and the turf had to be replaced 45 times during the first ten years. For football matches the capacity is 56,120, up from the original 54,990. The Ajax Museum inside the stadium covers more than 120 years of the club's history.
The 1998 UEFA Champions League final was played there, and the stadium was among the venues for UEFA Euro 2000, a semi-final included. For UEFA Euro 2020 it staged three group stage matches and one round-of-16 match, and it was also the site of the 2013 UEFA Europa League final. Three concerts by Tina Turner opened the stadium, and artists from the Netherlands and abroad have performed there since.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 23 mm | 1:3,750 |
| 200 mm | 29 mm | 1:3,000 |
| 256 mm | 36 mm | 1:2,344 |
-

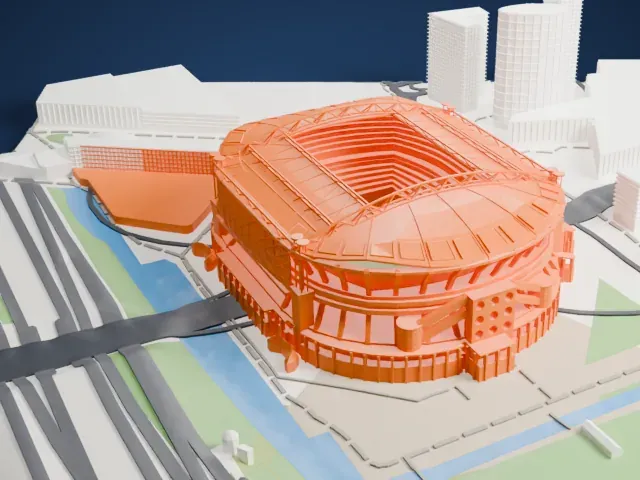

North
-

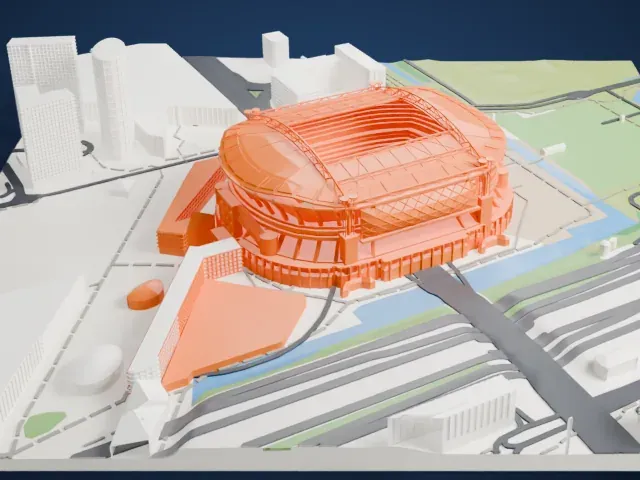

East
-
South
-

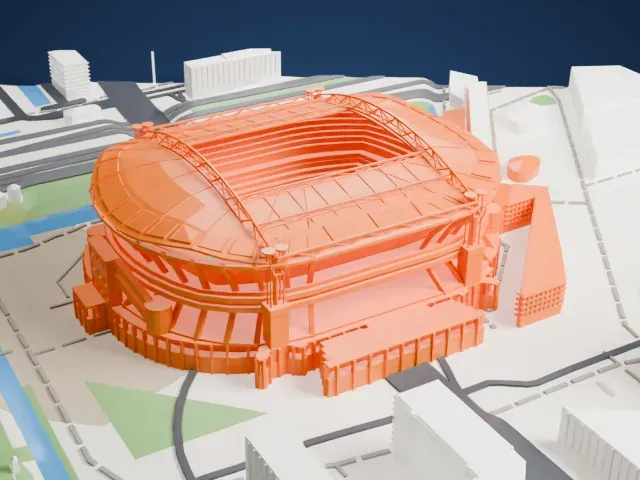

West
- Arched roof trusses
- Thin arched trusses and small masts cross the roof. Print friendly adapts these slender bars to the print scale; Full detail keeps them on a larger print.
- A round bowl of curved tiers
- The outer wall curves in stacked tiers. Layers of 0.12–0.16 mm keep those curves smooth, and a larger print size gives the stepped rings more room.
- One piece with the ground
- Johan Cruyff Arena is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Johan Cruyff Arena takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
Johan Cruyff Arena is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a Johan Cruyff Arena STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. Johan Cruyff Arena grows with the print: about 23 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
