3D print Torre Ejecutiva Pemex
A free, printable model of the Pemex Executive Tower in Mexico City, with the surrounding streets and buildings, generated from real map data in your browser.
-
North
-
East
-
South
-
West
The model you print

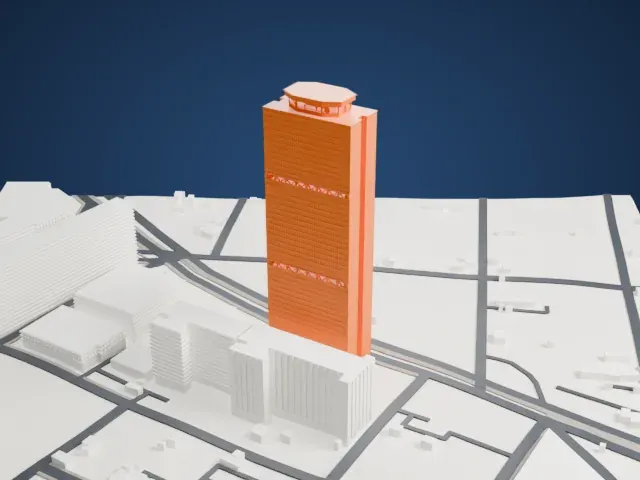

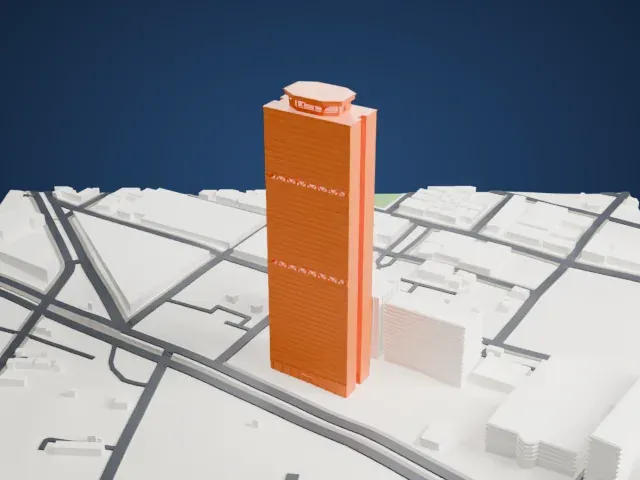

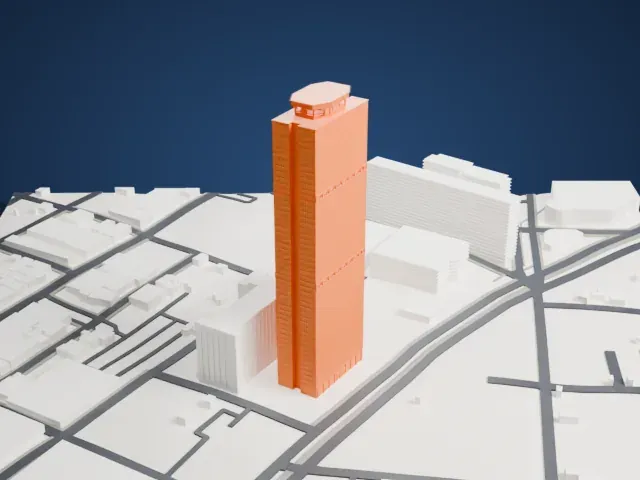

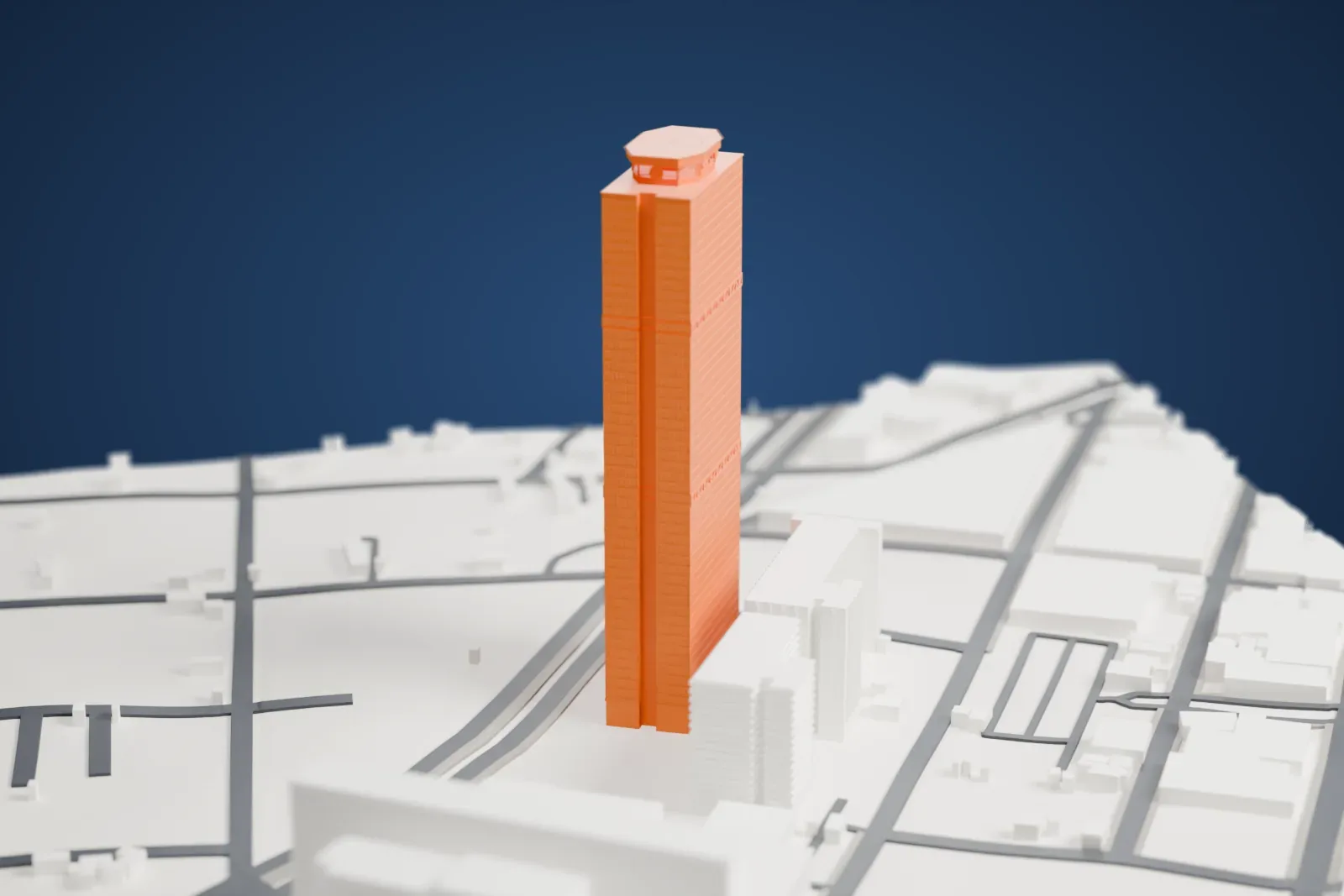

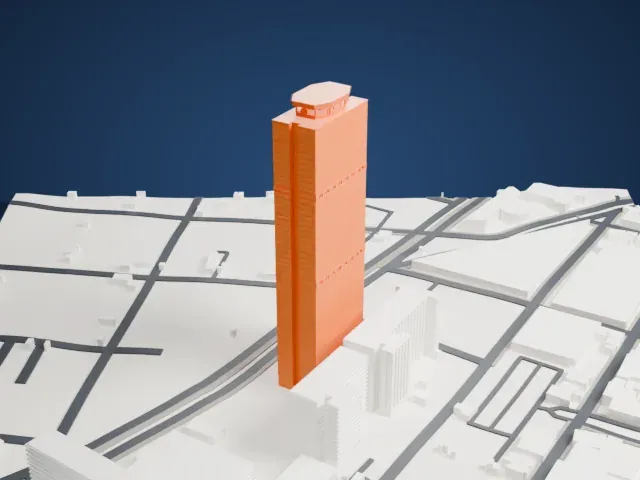

Torre Ejecutiva Pemex in 3D
The landmark on its own, at its size on a 160 mm print. Print friendly thickens thin parts for a 0.4 mm nozzle; Full detail keeps every part.
- Real height
- 211 m
- On a 160 mm print
- 57 mm
- Scale
- 1:3,750
211 m of Torre Ejecutiva Pemex, 57 mm on your shelf
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- Tall shaft with bracing bands
The tower is a tall rectangular shaft with horizontal bands of cross-bracing and a small crown at the top. Print slowly and let the upper layers cool, with a 0.12–0.16 mm layer height to keep the bands crisp.
- One piece with the ground
Torre Ejecutiva Pemex is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Torre Ejecutiva Pemex takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About Torre Ejecutiva Pemex
In Mexico City stands the Pemex Executive Tower (Torre Ejecutiva Pemex), an office skyscraper in the international style. It rises 211 m (692 ft) and was built between 1979 and 1984. Pemex, a state-owned company counted among the world's largest petroleum firms, has occupied it since it opened.
The tower began as a plan to take the place of two 14-story towers from 1967 to 1970. Those gave way to a pair of 26-story towers, but the oil boom of the 1980s called for more office space, and Pemex decided on a single 51-story tower on a downtown lot with a large plaza over an underground avenue. The plaza was never completed. The tower is anchored by 164 concrete and steel piles reaching a depth of 35 meters, and its x-braced structure carries 90 shock-absorbers to limit swaying in earthquakes.
Mexico's tallest building for almost 20 years, it lost the title in August 2003 to the 55-story Torre Mayor, completed 800 m (2,600 ft) from it. A magnitude 8.1 earthquake struck on September 19, 1985, and the tower came through it; its design allowed for 8.5 on the Richter scale.
About this model
Torre Ejecutiva Pemex is one of more than 4,900 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
