3D print Wembley Stadium
A free, printable model of Wembley Stadium, its arch and the streets and rail lines around it in London, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About Wembley Stadium
Wembley Stadium, in Wembley, London, England, is a ground built for association football. The current building opened in 2007 and stands where the first stadium of that name was in use from 1923 until 2000. As England's national football stadium, it hosts the FA Cup Final, the climax of England's main domestic club competition, along with most of the national team's home matches. The Football Association, the sport's governing body in England, owns the venue and has its headquarters inside.
Its 90,000 seats make it the largest stadium in the UK. Populous and Foster and Partners designed it, and the Australian firm Multiplex built it at a cost of £798 million. The all-seater bowl is sheltered by a sliding roof that stops short of enclosing it fully. Two partially retractable roof structures, at the east and west ends, can be opened to admit sunlight and help the pitch grow.
Its signature feature is the Wembley Arch, a lattice arch spanning 315 m (1,033 ft), which carries over 75% of the roof load. Beyond England matches and the FA Cup final, Wembley stages the FA Community Shield and the EFL Cup final, and it hosted the Olympic football gold-medal matches of 2012. It also held the UEFA Euro 2020 final, the Women's Euro 2022 final and Champions League finals, as well as NFL London Games and music concerts.
How it prints
Make this print opens the generator on a 750 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 31 mm | 1:4,688 |
| 200 mm | 39 mm | 1:3,750 |
| 256 mm | 50 mm | 1:2,930 |
-

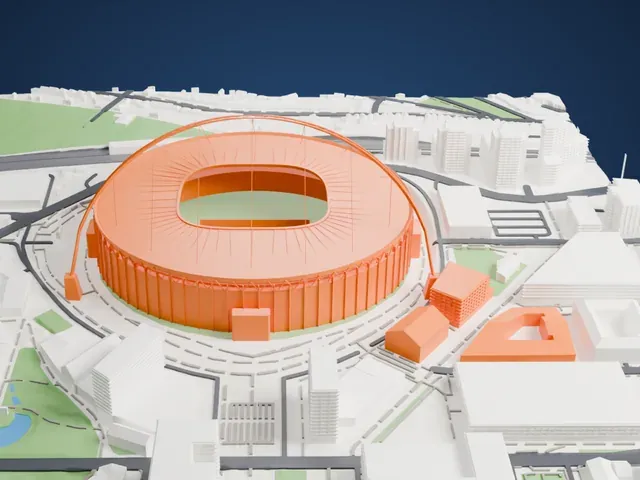

North
-

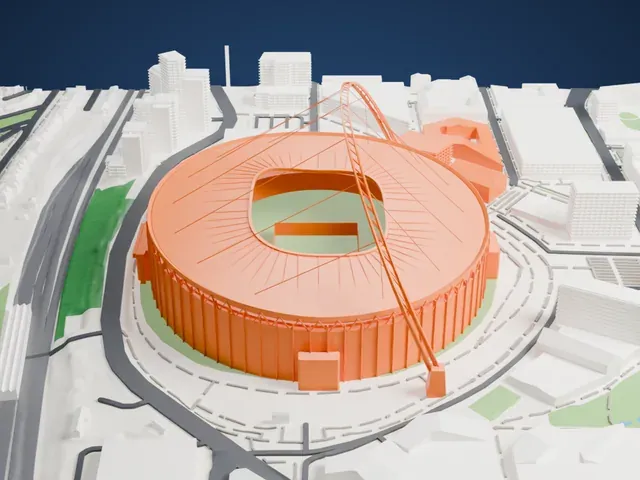

East
-
South
-

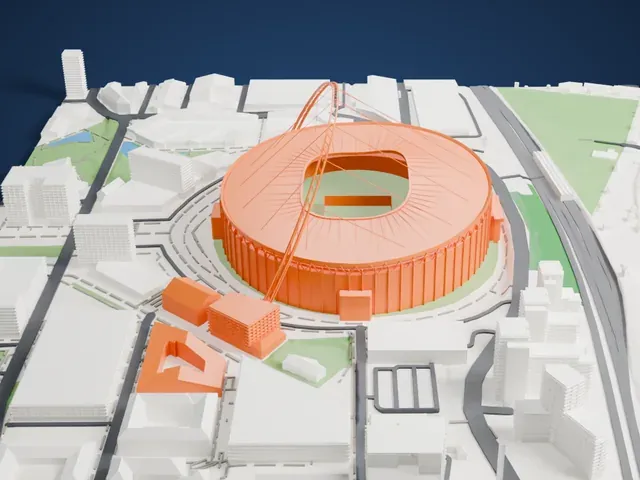

West
- Slender arch and cables
- The arch curves high above the bowl, with thin lines running down to the roof. A larger print keeps these parts clearer; Print friendly adapts them to your scale, while Full detail keeps every cable.
- Fine ribs on the roof
- Many thin ribs radiate across the roof ring. Layers of 0.12 to 0.16 mm and a slower print speed keep them crisp.
- One piece with the ground
- Wembley Stadium is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Wembley Stadium takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
Wembley Stadium is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a Wembley Stadium STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. Wembley Stadium grows with the print: about 31 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
