3D print Atakule

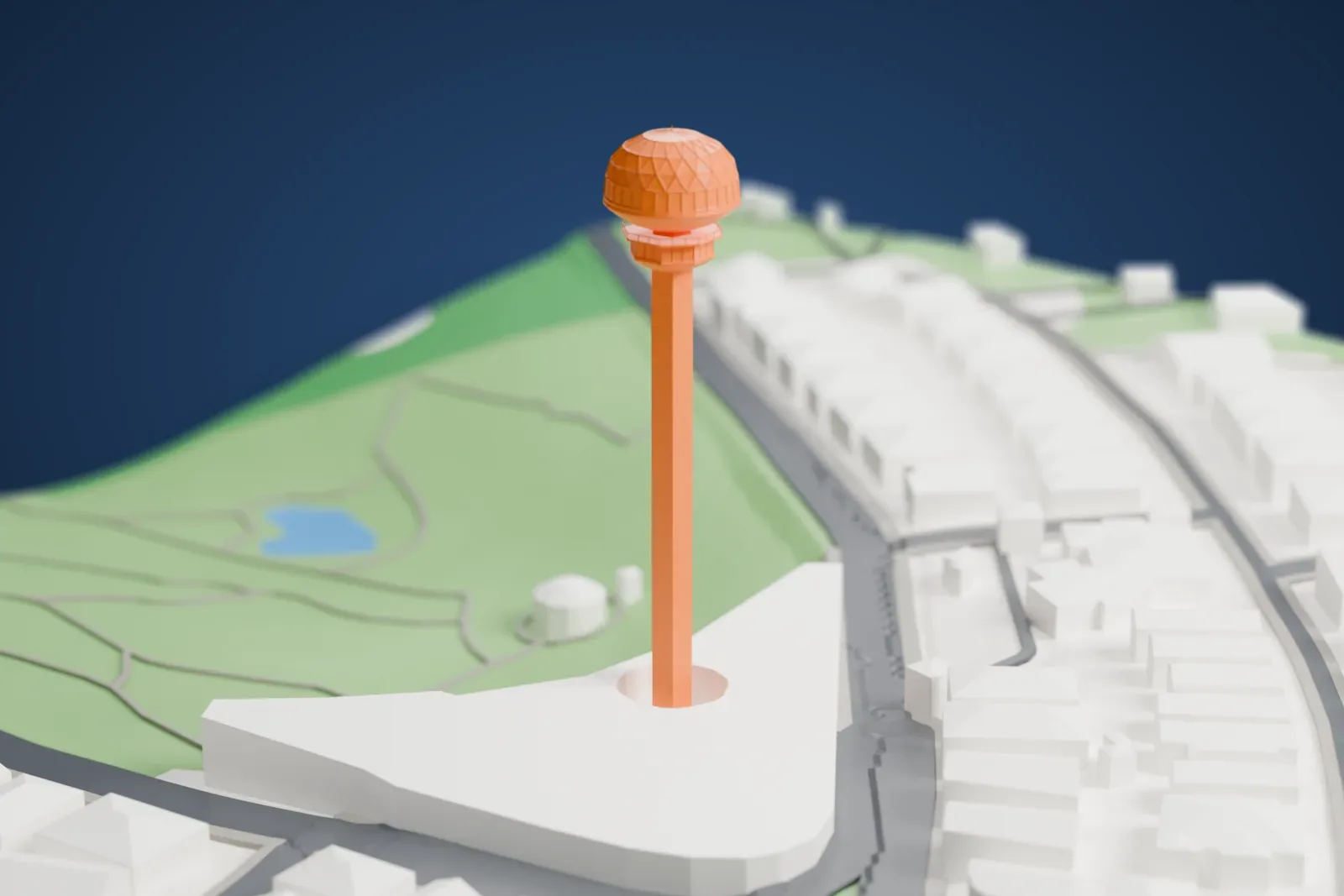

A free, printable model of the slender tower, with its domed crown, rising from a wide low building and surrounded by houses, roads and green patches, generated from real map data in your browser.
-
North
-
East
-
South
-
West
The model you print

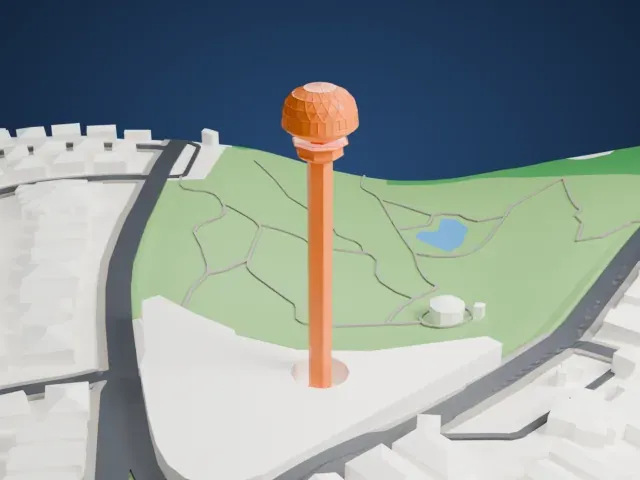

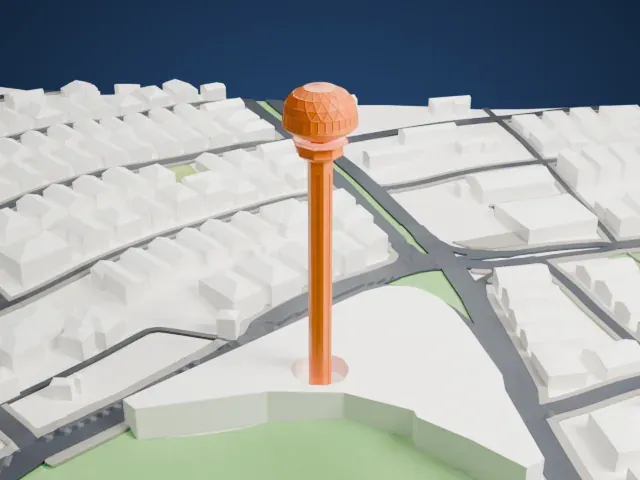

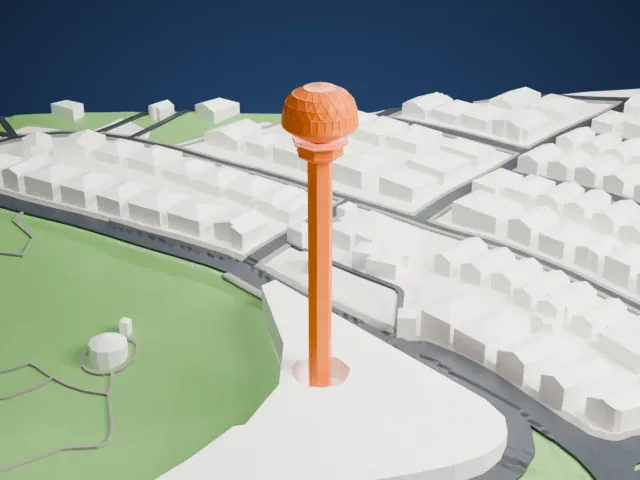

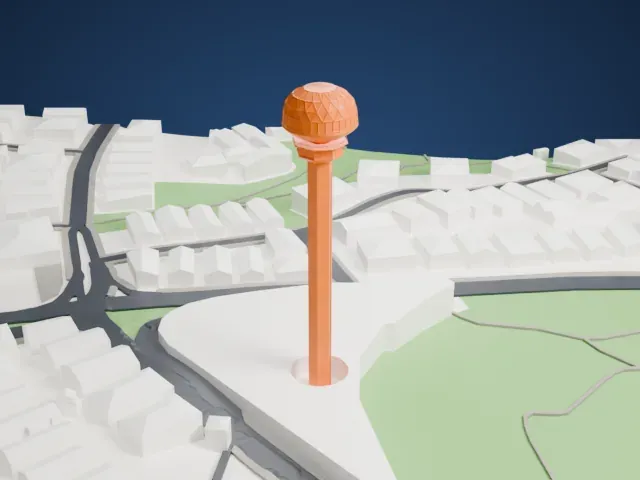

Atakule in 3D
The landmark on its own, at its size on a 160 mm print. Print friendly thickens thin parts for a 0.4 mm nozzle; Full detail keeps every part.
- Real height
- 125 m
- On a 160 mm print
- 34 mm
- Scale
- 1:3,750
125 m of Atakule, 34 mm on your shelf
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- Thin shaft under a heavy crown
A slim square shaft carries a domed crown that is much wider than the shaft. Print friendly adapts the shaft to the print scale; printing slowly and cooling well help the tall column.
- Faceted dome
The dome has a fine pattern of triangular panels and a small ring beneath it. A layer height of 0.12–0.16 mm and a bigger print size keep the pattern crisp.
- One piece with the ground
Atakule is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Atakule takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About Atakule
Atakule, in central Ankara, Türkiye, is a 125 m (410 ft) tower used for communications and observation, and it ranks among the city's primary landmarks. It stands in Çankaya, a district built on a hill, so on clear days people can see it from nearly every part of the city. Prime Minister Turgut Özal opened it on October 13, 1989.
Construction took place between 1987 and 1989, to a design by Ragıp Buluç. An open terrace and a rotating restaurant called Sevilla fill the top section, and Sevilla turns through 360 degrees every hour. Above Sevilla is a second restaurant, Dome, which stays still and sits directly under the cupola, and a café named UFO is under the terrace. A shopping mall and a number of restaurants occupy the lower structures.
The Turkish word ata translates as ancestor, or father in Old Turkic, and it is a common nickname for Mustafa Kemal Atatürk, founder of the republic and its first president; kule means tower. The Atrium shopping mall next to the tower opened on the same day, as the first modern mall in Ankara. It was later demolished and rebuilt, and it reopened on October 29, 2018.
About this model
Atakule is one of more than 4,900 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
