3D print the Athens Olympic Stadium

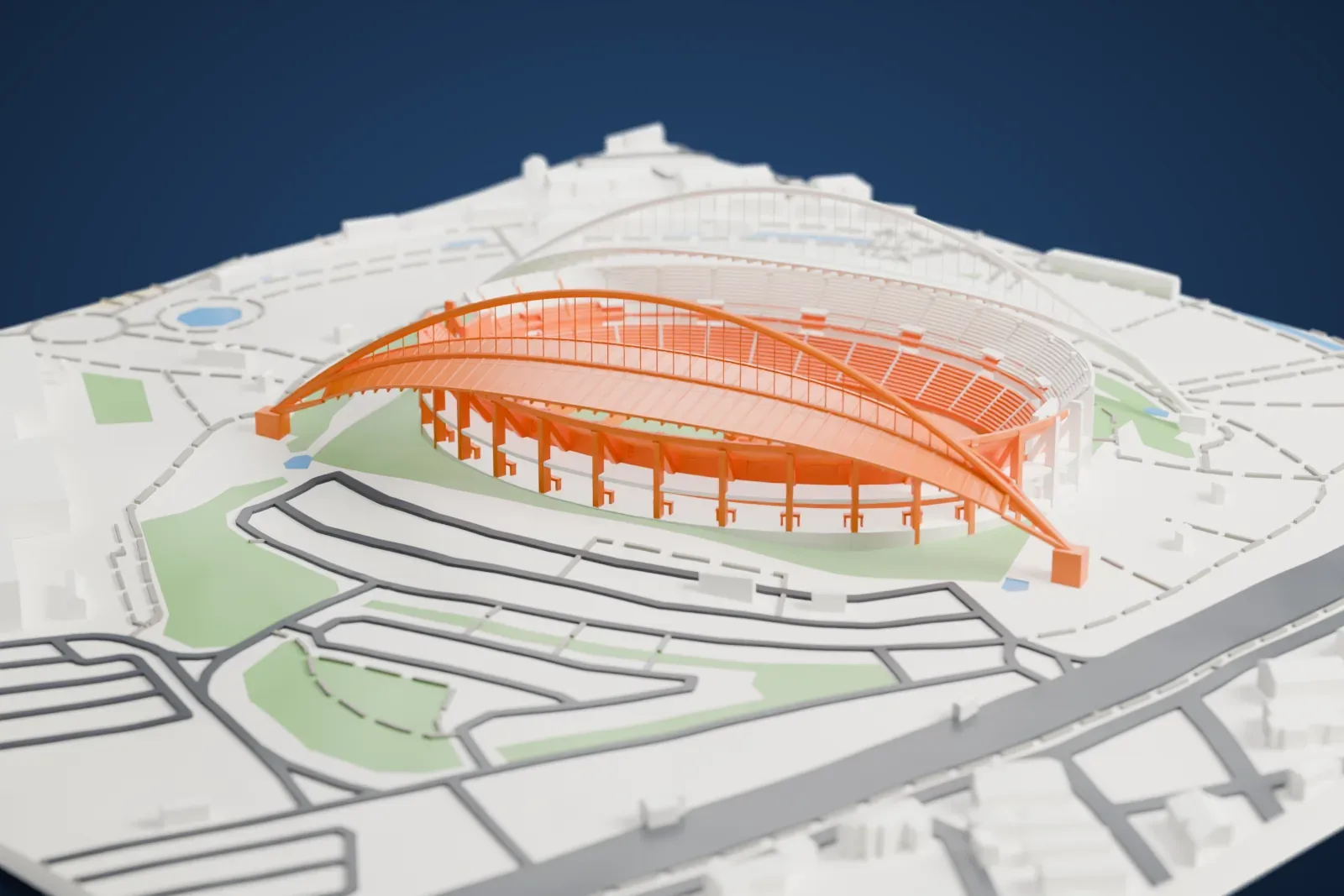

A free, printable model of the stadium's two sweeping roof arches and oval seating bowl, with open ground, roads and low buildings around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About the Athens Olympic Stadium
The Athens Olympic Stadium stands in Marousi, in the north of Athens, Greece. It is one part of OAKA, the Athens Olympic Sports Complex, and is named for Spyros Louis, who won the first modern Olympic marathon gold medal in 1896. It was the main stadium for the 2004 Summer Olympics and Paralympics and held their opening and closing ceremonies.
Built to host the 1982 European Athletics Championships, the stadium was designed in 1980 and built between 1980 and 1982. President of Greece Konstantinos Karamanlis inaugurated it on September 8, 1982, and European media dubbed it "The modern Greek Wonder". It went on to host the European Cup final in 1983, between Hamburger SV and Juventus, and again in 1994, between Milan and Barcelona, plus the 2007 UEFA Champions League final contested by Milan and Liverpool. Other events included the final of the European Cup Winners' Cup in 1987, the Mediterranean Games of 1991 and the World Championships in Athletics of 1997.
Between 2002 and 2004 the stadium was substantially renovated for the Olympics. Its trademark roof was designed by Santiago Calatrava and positioned with Enerpac hydraulics; it was added above the sidelines and finished just in time for the Games. The stadium was officially reopened on July 30, 2004, and held the opening ceremony on August 13 and the closing ceremony on August 29. It staged the Olympic athletics competitions and football finals, plus the Paralympic athletics. Its turf is natural grass in modular containers that include irrigation and drainage systems.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 22 mm | 1:3,750 |
| 200 mm | 27 mm | 1:3,000 |
| 256 mm | 35 mm | 1:2,344 |
-
North
-
East
-
South
-
West

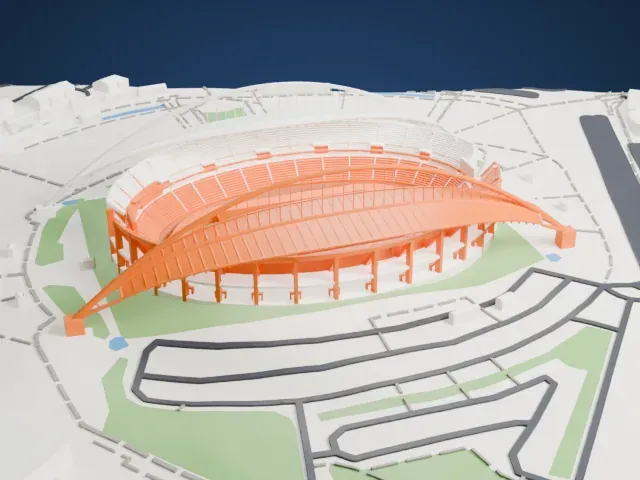

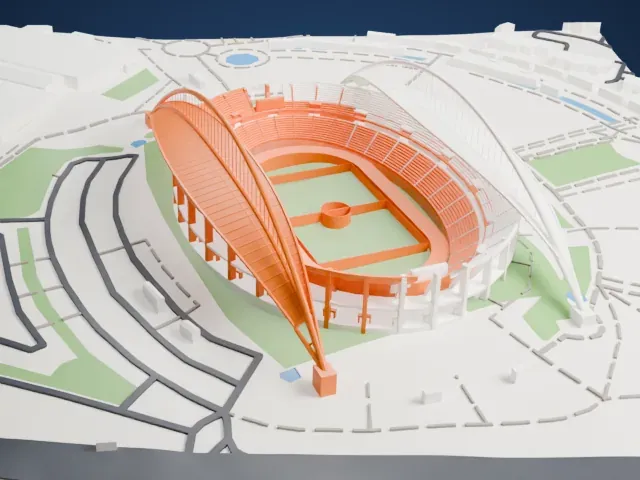

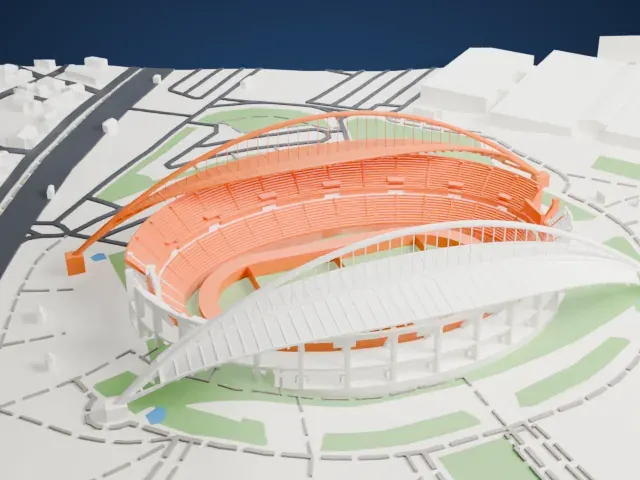

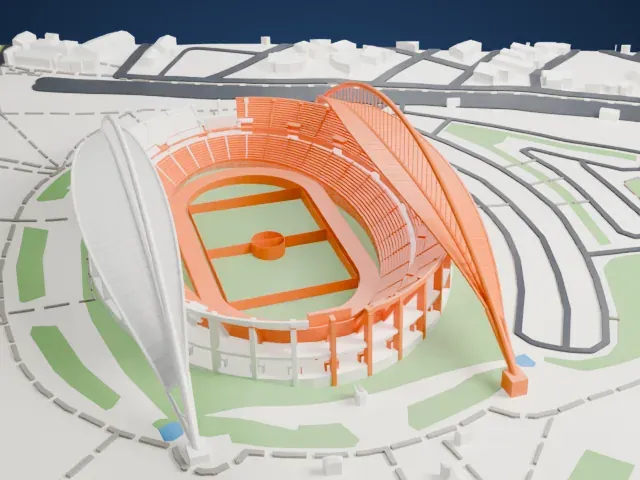

- Two long roof arches
- Two huge arches curve over the stands, linked to the roof by many thin vertical hangers. Print friendly adapts these thin parts to your print scale; Full detail keeps them. Print slowly with good cooling to keep the curves clean.
- Fine seating rows
- The oval bowl is made of many narrow stepped rows. Layers of 0.12 to 0.16 mm keep them crisp, and a larger print gives each row more width.
- One piece with the ground
- The Athens Olympic Stadium is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. The Athens Olympic Stadium takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
The Athens Olympic Stadium is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there an Athens Olympic Stadium STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. The Athens Olympic Stadium grows with the print: about 22 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
