3D print the CIBC Tower
A free, printable 3D model of the CIBC Tower in Montreal with its surrounding streets and buildings, generated from real map data in your browser.
-

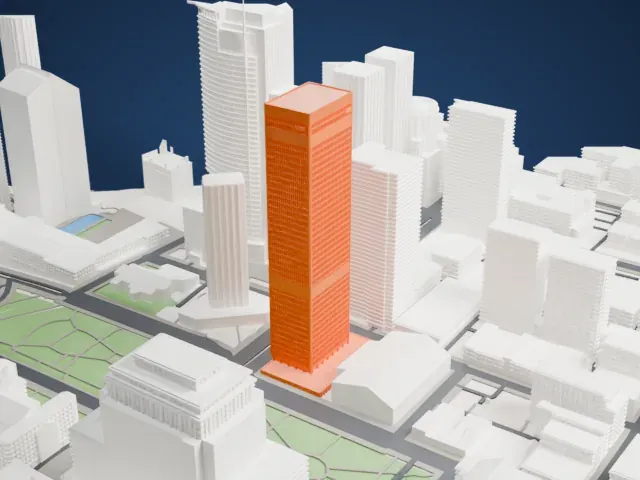

North
-

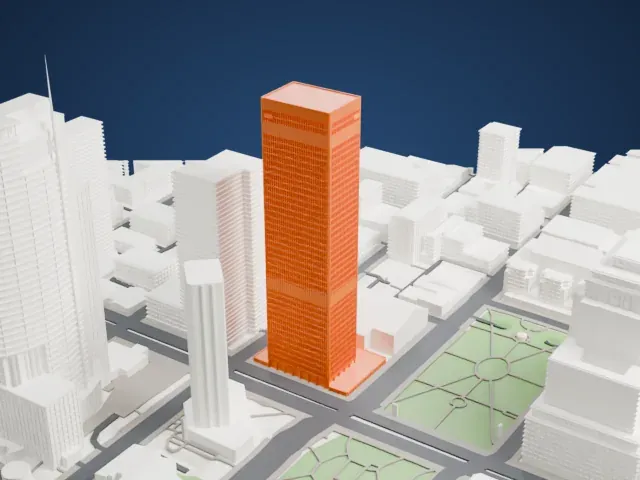

East
-

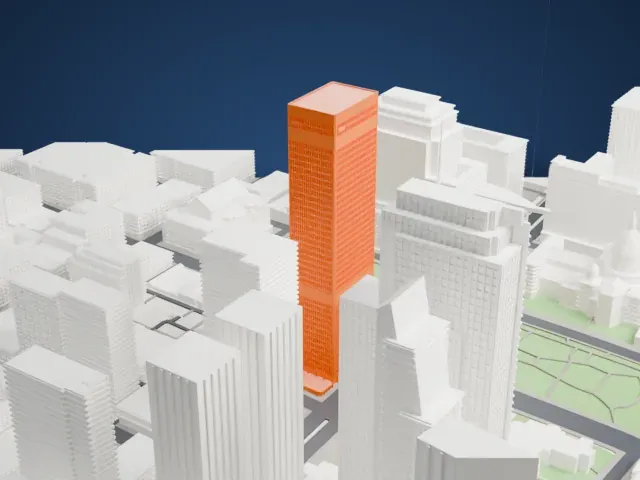

South
-

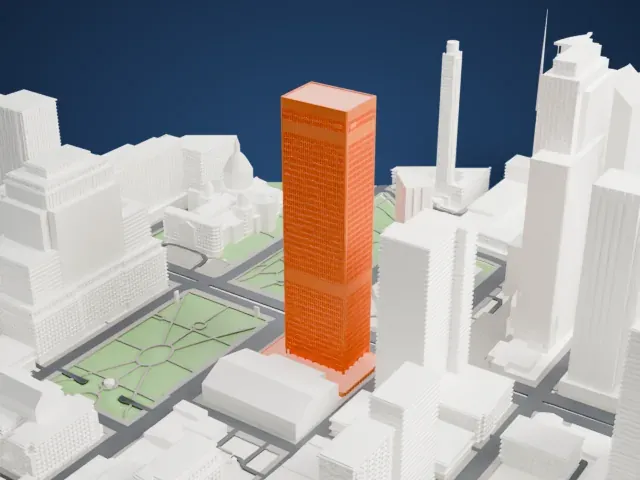

West
The model you print

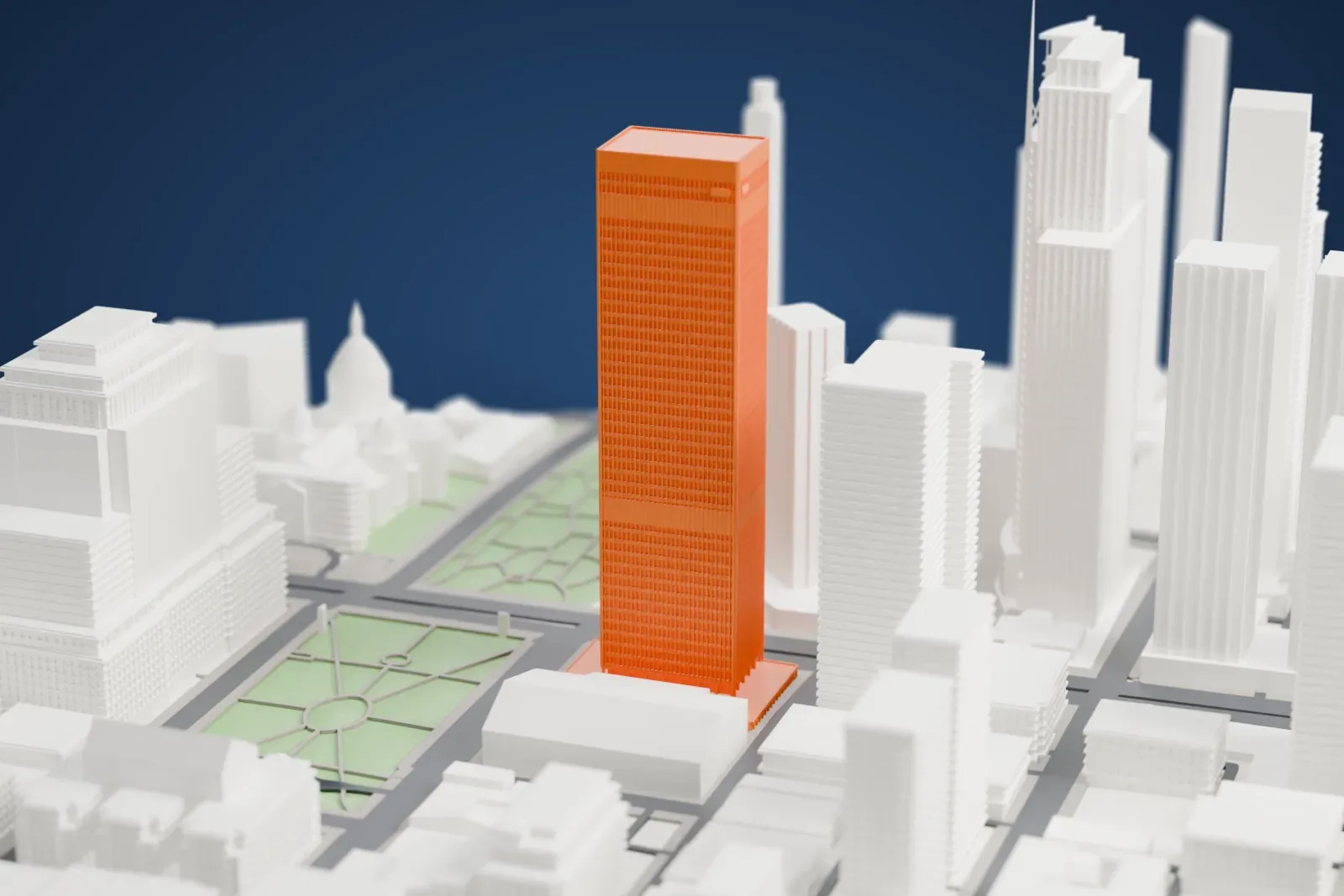

CIBC Tower in 3D
The landmark on its own, at its size on a 160 mm print. Print friendly thickens thin parts for a 0.4 mm nozzle; Full detail keeps every part.
- Real height
- 187 m
- On a 160 mm print
- 50 mm
- Scale
- 1:3,750
187 m of the CIBC Tower, 50 mm on your shelf
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- Slender tower, steady layers
A narrow high-rise can look soft at small sizes. Print it larger, use 0.12–0.16 mm layers, and slow the top layers down so they cool before the next layer lands.
- One piece with the ground
The CIBC Tower is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. The CIBC Tower takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About the CIBC Tower
CIBC Tower (Tour CIBC in French) rises 187 m (614 ft) over Montreal, Quebec, Canada, with 45 floors. Peter Dickinson built the International Style office tower, with Ross, Fish, Duschenes and Barrett as associate architects. From 1962 to 1963 it held the title of tallest building in the city. The address is 1155 René Lévesque Boulevard West, beside Dorchester Square and opposite the Sun Life Building. The site was cleared by demolishing part of the Windsor Hotel, which had suffered a fire.
The Canadian Bank of Commerce started the project, which was announced in 1959. During construction, the bank combined with the Imperial Bank of Canada, forming the Canadian Imperial Bank of Commerce on June 1, 1961. Completion came in 1962, only months ahead of Place Ville-Marie. On opening it stood higher than any other building in Canada or the Commonwealth of Nations, until Place Ville-Marie surpassed it later that year after the competing Royal Bank added a penthouse to that building.
Each floor has just 1,400 m2 of gross floor area (15,000 sq ft), making the tower exceptionally slender; a zoning regulation capped total floor area at twelve times the property area. The façade alternates horizontal strips of glass curtain wall with stone spandrels, including green slate quarried in Wales. The top 7 m (23 ft) is an open-air raised partition hiding the rooftop elevator control rooms.
About this model
The CIBC Tower is one of more than 5,500 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Each model is written as code from public descriptions, plans, photographs and aerial views used only as references; no image or third-party model is copied into it. Everything around it is built from OpenStreetMap and Overture map data. Rights in the building itself, its name and any brands on it are not granted by Mini Skyline; clear them separately before you sell prints. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
