3D print the Estevan Point Lighthouse
A free, printable 3D model of the Estevan Point Lighthouse and its surroundings on the Hesquiat Peninsula, generated from real map data in your browser.
-

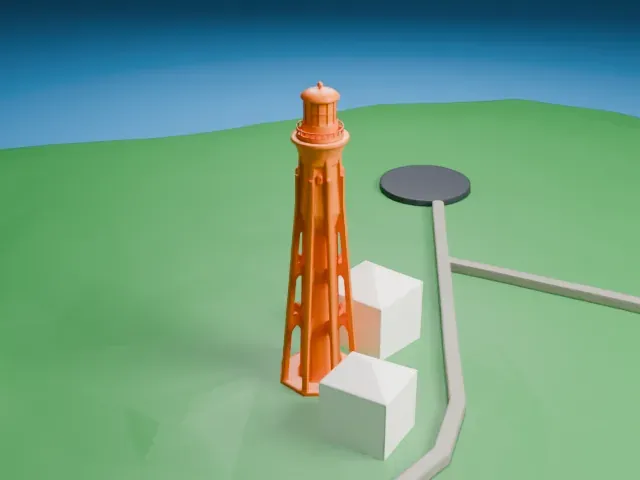

North
-

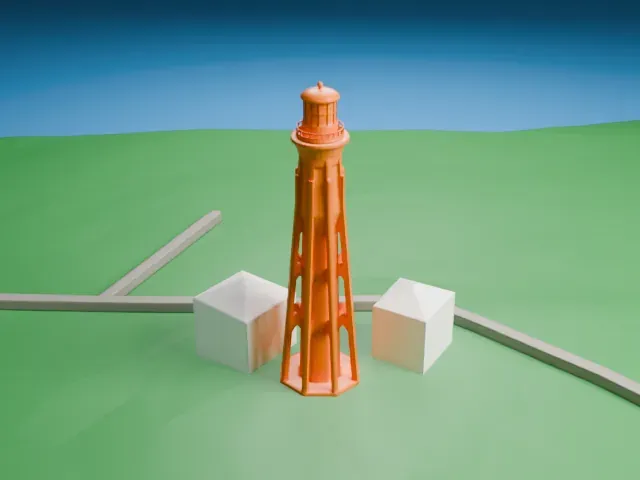

East
-

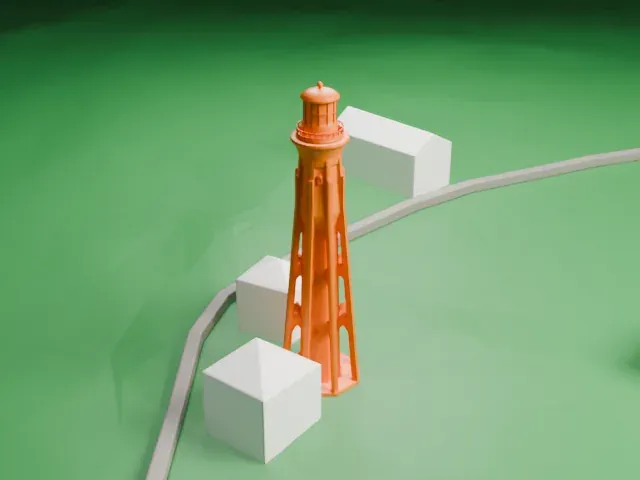

South
-

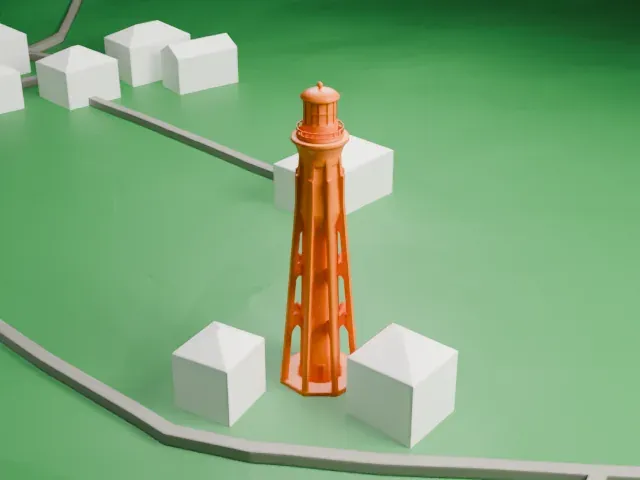

West
The model you print

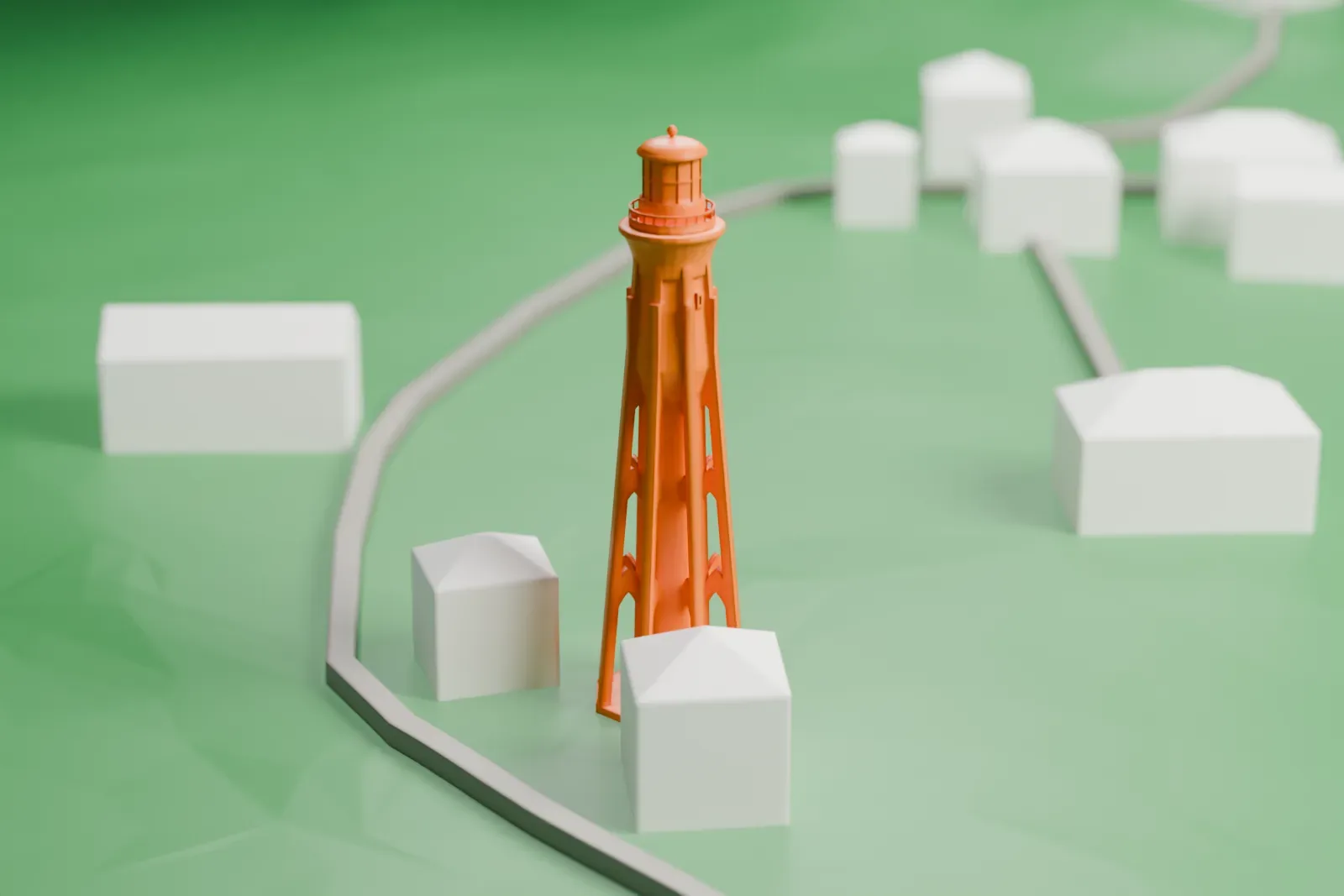

Estevan Point Lighthouse in 3D
The landmark on its own, at its size on a 160 mm print. Print friendly thickens thin parts for a 0.4 mm nozzle; Full detail keeps every part.
- Real height
- 31 m
- On a 160 mm print
- 8 mm
- Scale
- 1:3,750
31 m of the Estevan Point Lighthouse, 8 mm on your shelf
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- A tall tower, printed slowly
A lighthouse is a tall tower with a narrow top. Print slowly with good cooling, and use a 0.12–0.16 mm layer height to keep vertical detail crisp. Print friendly adapts thin parts to the print scale.
- One piece with the ground
The Estevan Point Lighthouse is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. The Estevan Point Lighthouse takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About the Estevan Point Lighthouse
Estevan Point Lighthouse sits on the headland of Estevan Point, within Hesquiat Peninsula Provincial Park, along Vancouver Island's west coast in Canada. It dates from 1909 and was one of the buttressed lighthouses in a series that engineer William P. Anderson designed. The lighthouse is an octagonal concrete tower, 30.5 m (100 ft) tall, supported by buttresses. It originally held a first-order Fresnel lens from Chance Brothers of England. The lens and the lantern were dismantled during the 1980s, and the lens was given to a regional museum in 2004.
On June 20, 1942, during the Second World War, the Japanese submarine I-26 surfaced and shelled the lighthouse, firing between 25 and 30 shells of 5.5 in (140 mm). The shells missed and the station was left undamaged. It was the first attack by an enemy on Canadian land since the 1866 and 1871 Fenian raids.
About this model
The Estevan Point Lighthouse is one of more than 5,500 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Each model is written as code from public descriptions, plans, photographs and aerial views used only as references; no image or third-party model is copied into it. Everything around it is built from OpenStreetMap and Overture map data. Rights in the building itself, its name and any brands on it are not granted by Mini Skyline; clear them separately before you sell prints. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
