3D print Great American Ball Park

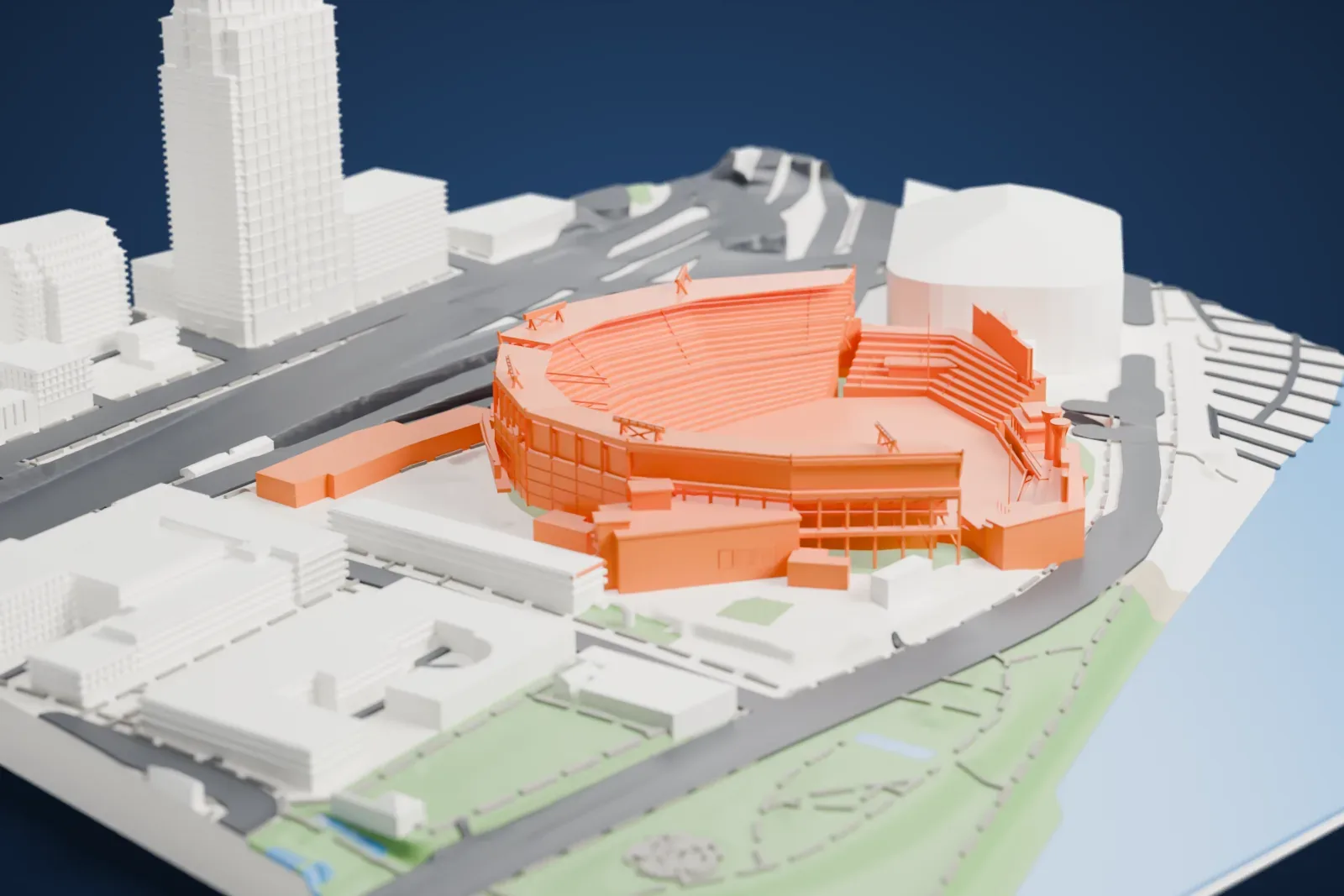

A free, printable model of the ballpark's curved, tiered stands and canopy beams, with the buildings, roads and a stretch of water around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About Great American Ball Park
Great American Ball Park, in Cincinnati, Ohio, United States, is the Cincinnati Reds' home ballpark in Major League Baseball. It opened on March 31, 2003, taking over from Cinergy Field, formerly Riverfront Stadium, which had been the Reds' ballpark from 1970 to 2002. HOK Sport and GBBN were the architectural firms behind it, and it cost approximately US$290 million. Great American Insurance paid US$75 million for 30 years of naming rights.
Between home plate and third base, a 10.7 m (35 ft) opening in the seating, that goes by "Gapper's Alley" as well as "The Gap", is crossed by the concourse on each level. It lines up with Sycamore Street, giving a view in from downtown and, from inside, a view of the skyline. The two Power Stacks, smokestacks in right center field that recall Ohio River steamboats of the 19th and early 20th centuries, answer the home team's efforts with lights, flames and fireworks.
Near the main entrance, a limestone bas relief, 15 by 6 m (50 by 20 ft), called The Spirit of Baseball shows a young player looking up to a batter, a pitcher and a fielder. Two mosaic panels inside the main gates depict the 1869 Red Stockings, who went 57–0 in their first season as the first professional baseball team, and the Big Red Machine, which took the World Series in both 1975 and 1976. The Crosley Terrace monument, with bronze statues of Ted Kluszewski, Frank Robinson, Joe Nuxhall and Ernie Lombardi, recalls Crosley Field. The ballpark staged the 2015 All-Star Game of Major League Baseball.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 15 mm | 1:3,750 |
| 200 mm | 19 mm | 1:3,000 |
| 256 mm | 24 mm | 1:2,344 |
-

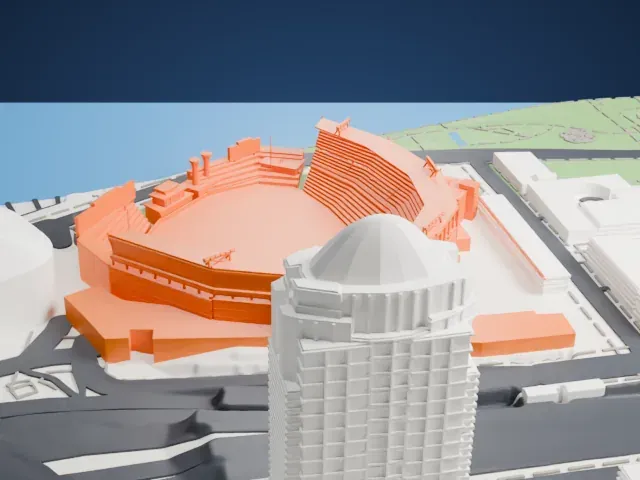

North
-

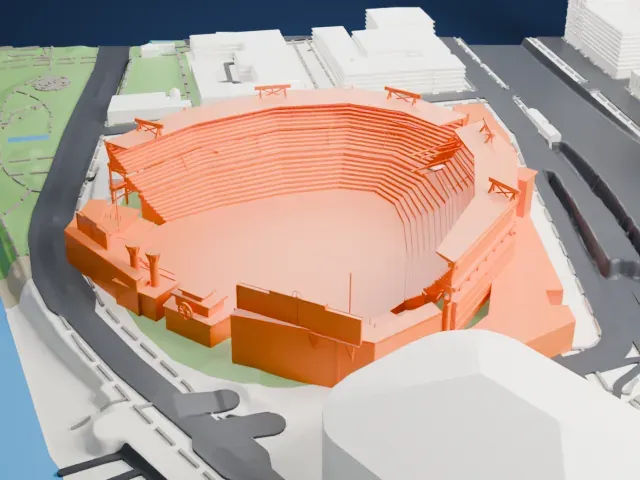

East
-

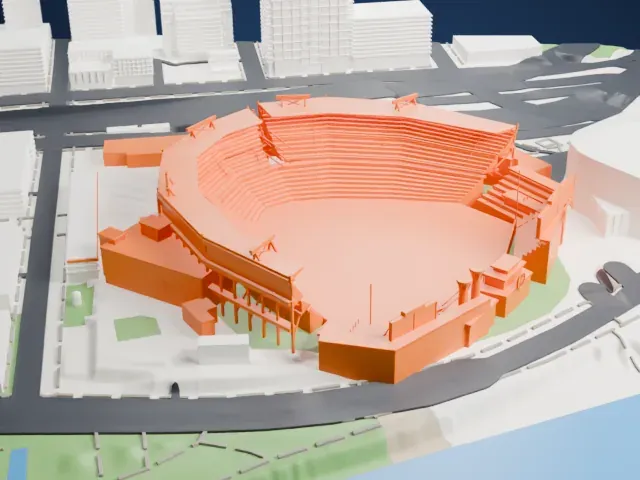

South
-

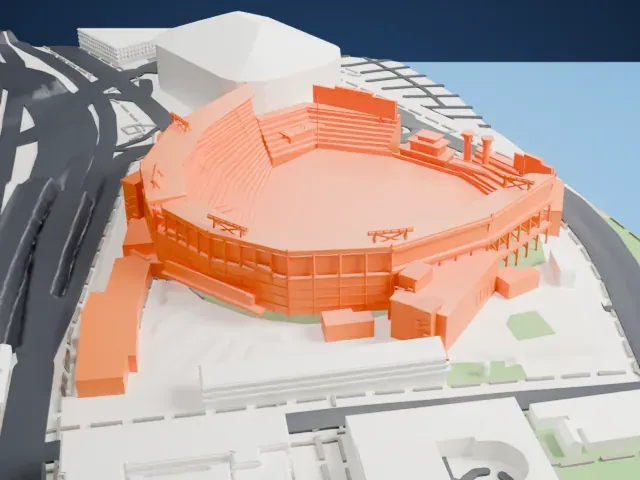

West
- Slim canopy beams
- Slender beams and canopy supports stick out above the upper stands. Print friendly adapts these thin parts to your print scale; Full detail keeps them, which suits a larger print.
- Many narrow seating tiers
- The curved stands are built from many narrow tiers. Layers of 0.12 to 0.16 mm keep them crisp, and a larger print gives each tier more width.
- One piece with the ground
- Great American Ball Park is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Great American Ball Park takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
Great American Ball Park is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a Great American Ball Park STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. Great American Ball Park grows with the print: about 15 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
