3D print Hamilton Stadium

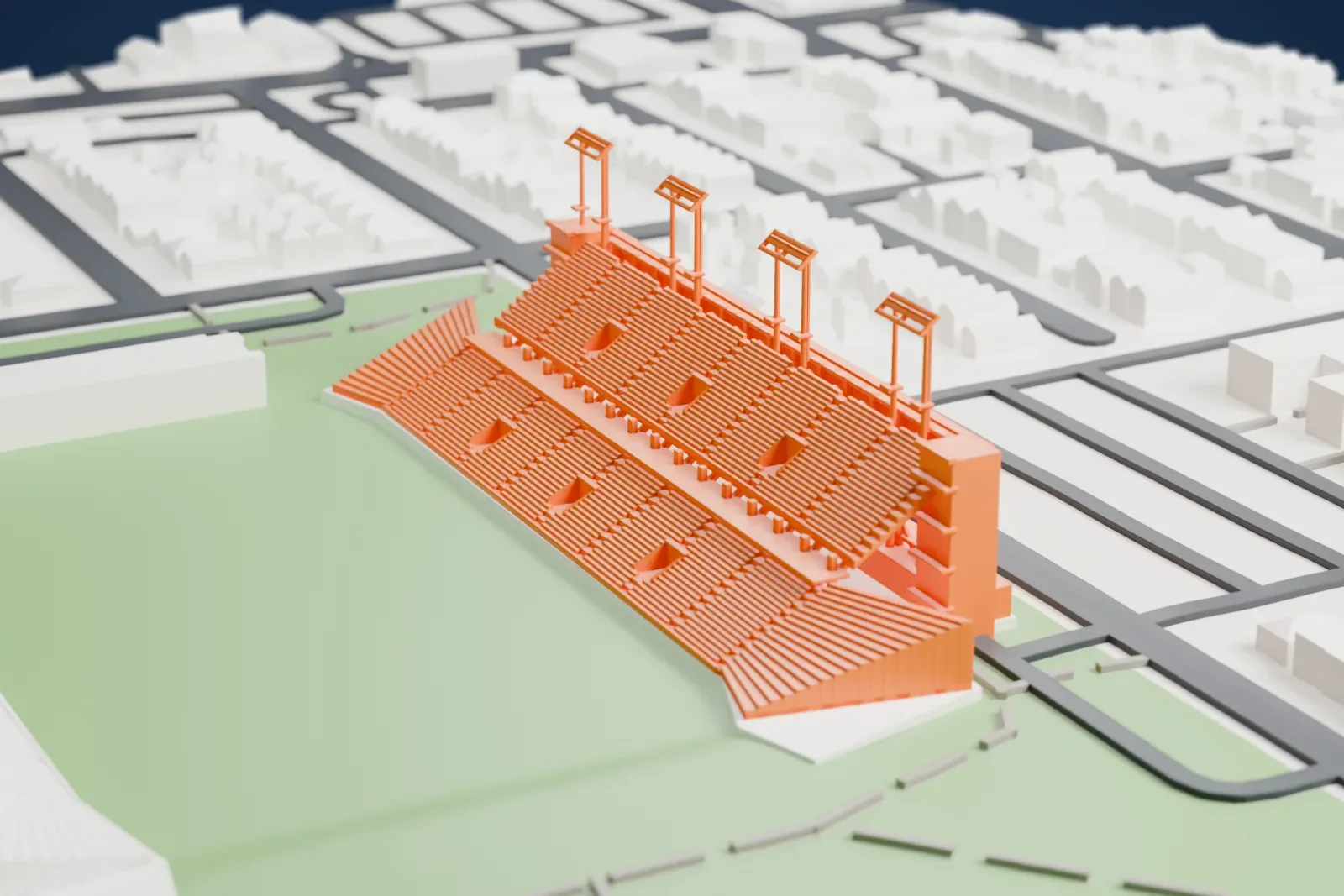

A free, printable model of Hamilton Stadium, its two long grandstands and slim light towers, with the field, buildings and streets around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About Hamilton Stadium
Hamilton Stadium, first named Tim Hortons Field, is a stadium for Canadian football and soccer in Hamilton, Ontario. It was finished in 2014 for 22,500 spectators. It replaced Ivor Wynne Stadium, the venue that had occupied the same site since 1930. The Hamilton Tiger-Cats (Canadian Football League) and Forge FC (Canadian Premier League) are its resident teams.
The 2015 Pan American Games, awarded in 2009, gave Hamilton soccer and athletics events, and the city weighed building a new stadium or renovating Ivor Wynne. Disputes arose over the location, but in the end the call was to tear Ivor Wynne down entirely and rebuild on the same spot. Every one of the 32 soccer matches at the Pan Am Games, men's and women's, was played at the new stadium, under the temporary name Hamilton Pan Am Soccer Stadium. The total cost was $145 million, shared among the city, the province of Ontario and the federal government.
CannonDesign designed the stadium, with engineering by the Arup Group. The new design widened the field to match FIFA's standards for international pitches and rotated it, so that it no longer runs east–west but north–south. Its artificial turf carries approval from both FIFA and the CFL. The team's first game there came on September 1, 2014, a 13–12 win over the Toronto Argonauts. Its nickname, the donut box, refers to the ties to a coffee chain and the rectangular layout of the stands.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 12 mm | 1:3,750 |
| 200 mm | 15 mm | 1:3,000 |
| 256 mm | 20 mm | 1:2,344 |
-

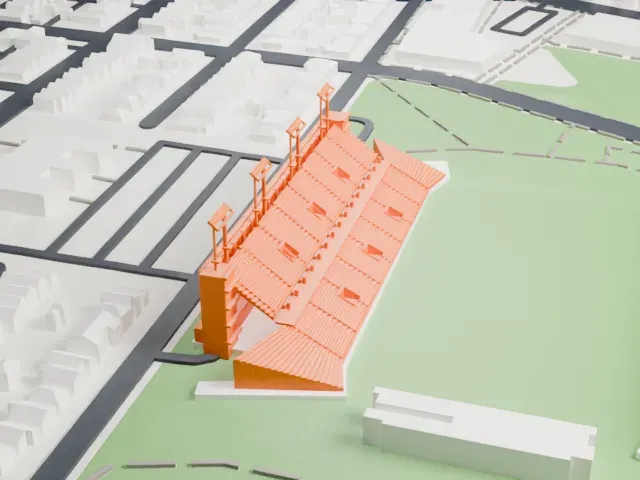

North
-

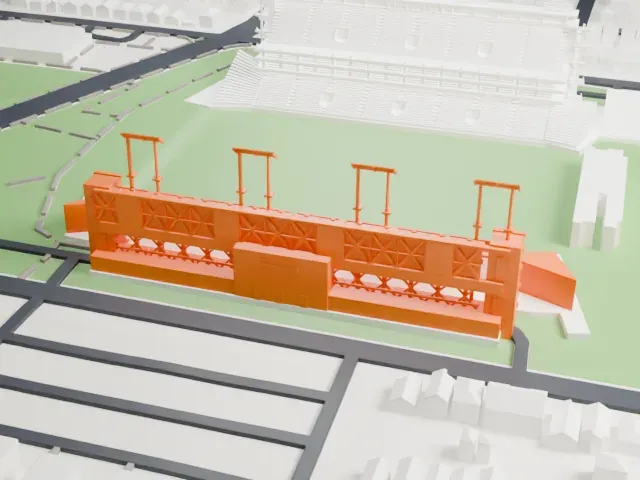

East
-

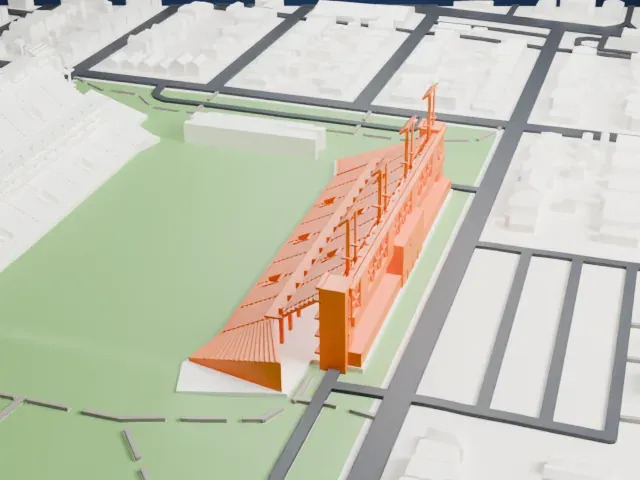

South
-

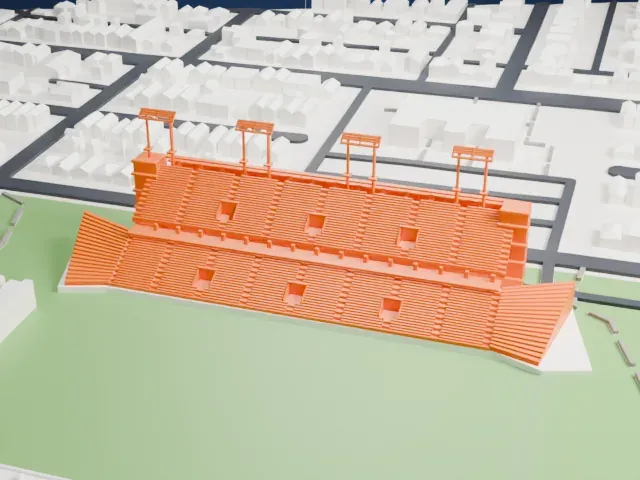

West
- Slim light towers
- Slim towers rise from the top of each grandstand. Print friendly adapts thin parts like these to your print scale; Full detail keeps them, best printed slowly with good cooling and 0.12 to 0.16 mm layers.
- Many thin seating rows
- Both grandstands are cut into many thin rows. A larger print keeps the rows easier to read.
- One piece with the ground
- Hamilton Stadium is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Hamilton Stadium takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
Hamilton Stadium is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a Hamilton Stadium STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. Hamilton Stadium grows with the print: about 12 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
