3D print Perth Town Hall

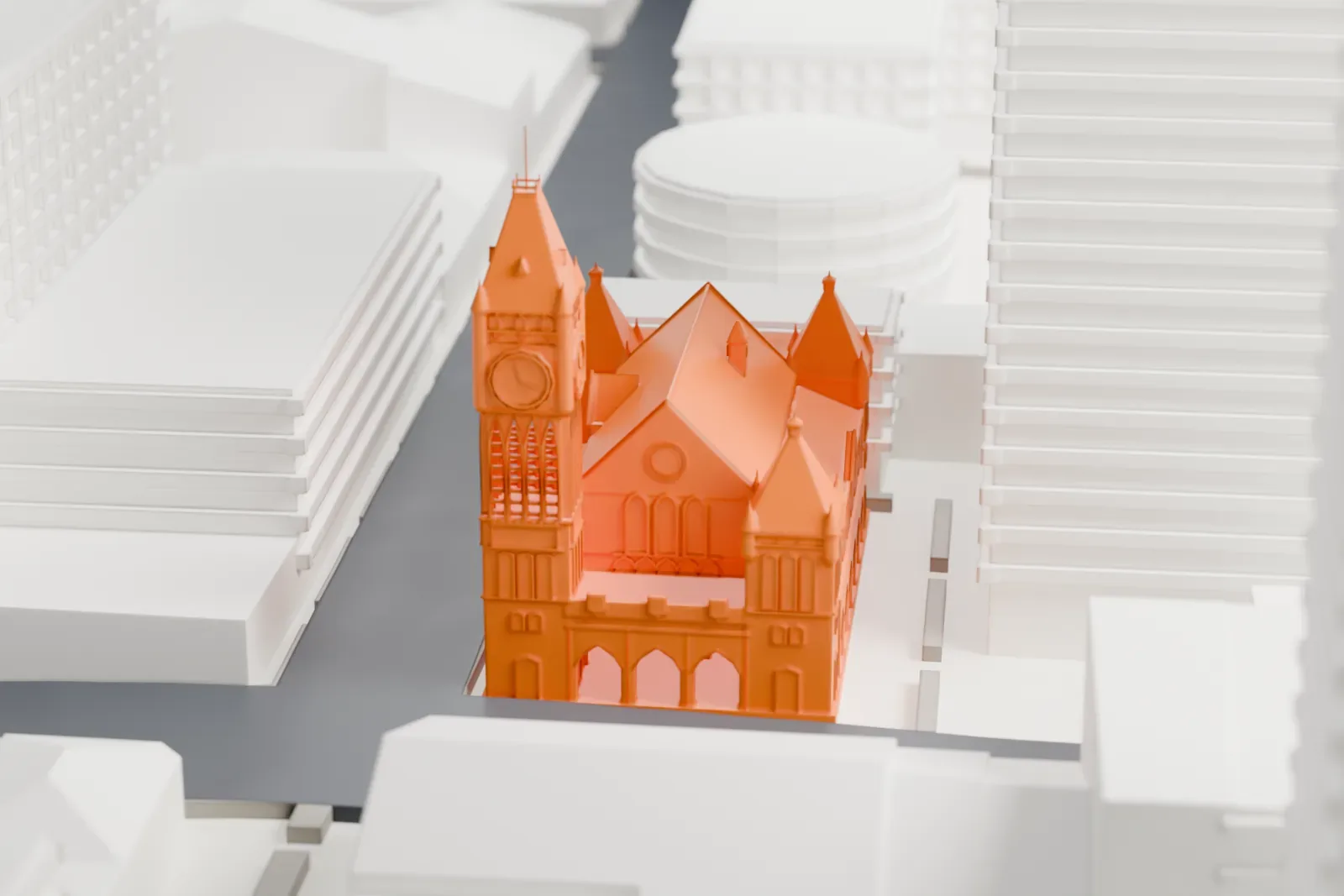

A free, printable model of Perth Town Hall, with its clock tower and pointed turrets and the taller city buildings around it, generated from real map data in your browser.
-
North
-
East
-
South
-
West
- On a 160 mm print
- 13 mm
- Scale
- 1:3,750
13 mm tall on a 160 mm print
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- Clock tower and spire
The clock tower ends in a slim spire with a thin finial. Print slowly with good cooling; Print friendly adapts the tip to the print scale, while Full detail keeps it on a larger print.
- Small turrets and arches
Corner turrets and pointed arches are small details. Layers of 0.12–0.16 mm keep them crisp, and a bigger print size gives them more room.
- One piece with the ground
Perth Town Hall is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Perth Town Hall takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About Perth Town Hall
Perth Town Hall occupies a corner site where Hay Street meets Barrack Street in Perth, Western Australia. No other town hall in Australia was built by convicts, and on completion it rose higher than any other structure in the city. Its architects, Richard Roach Jewell and James Manning, chose the Victorian Free Gothic style. Both convicts and free men worked on the building from 1867 to 1870.
The brickwork on the outside is laid in Flemish bond, with bricks made from East Perth clay. Convict motifs appear in the decoration, including windows shaped like the broad arrow and ornaments shaped like a hangman's rope. Governor Hampton laid the foundation stone on May 24, 1867. A ceremony of pomp and parade went ahead despite torrential downpours: the procession set out from Government House, and volunteer regiments staged a mock battle.
Through much of the 20th century, shops filled the sides of the ground floor, among them a pharmacy, a bank and a lunch bar. These were removed before the hall was renovated. In 1929, as Western Australia marked its centenary, Governor William Campion set a commemorative plaque into the building's northwest corner. An award-winning restoration in the late 1990s repaired the gothic arches at the base, which a mid-20th-century modernization had altered.
About this model
Perth Town Hall is one of more than 4,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
