3D print Titanic Belfast
A free, printable model of Titanic Belfast and the grass, paths and roads around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About Titanic Belfast
In Belfast, Northern Ireland, Titanic Belfast opened in 2012 as an attraction for visitors, honoring the city's maritime heritage. It occupies ground that once belonged to the Harland & Wolff shipyard, in the Titanic Quarter, which is where the RMS Titanic was built. Its galleries cover the Titanic, which sank on her first voyage in 1912, and her sisters, the Olympic and the Britannic. The building offers more than 12,000 square meters (130,000 sq ft) of space.
The angular shape echoes ships' prows, and its main prow points down the center of the Titanic and Olympic slipways toward the River Lagan. 3,000 individual silver anodized aluminum shards cover most of the facade. The building rises 38 m (126 ft), matching the height of the Titanic's hull. Its structure includes an inverted steel frame, in which floor sizes increase with height.
Inside the eight-story building are nine interpretive and interactive galleries. The top floor holds the Titanic Suite, a banqueting space for 750 people with a reproduction of the original Titanic staircase. Construction cost £77 million, and the foundations needed what was one of the largest concrete pours ever done in the country: 4,200 cubic meters delivered by 700 trucks in 24 hours. In front of the building stands Titanica, a bronze sculpture of a diving female figure by Rowan Gillespie.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 11 mm | 1:3,750 |
| 200 mm | 14 mm | 1:3,000 |
| 256 mm | 18 mm | 1:2,344 |
-

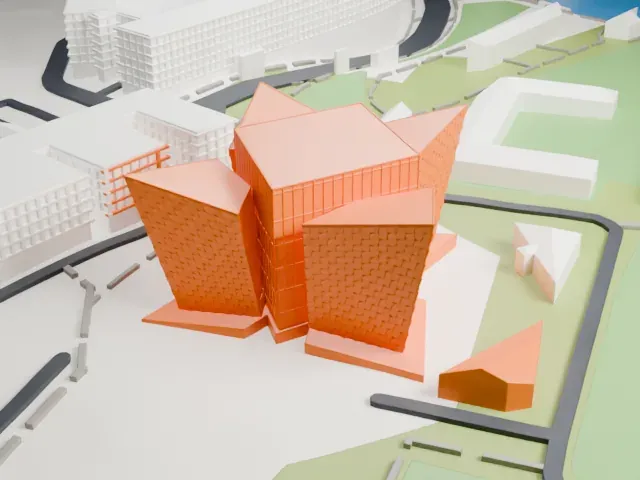

North
-

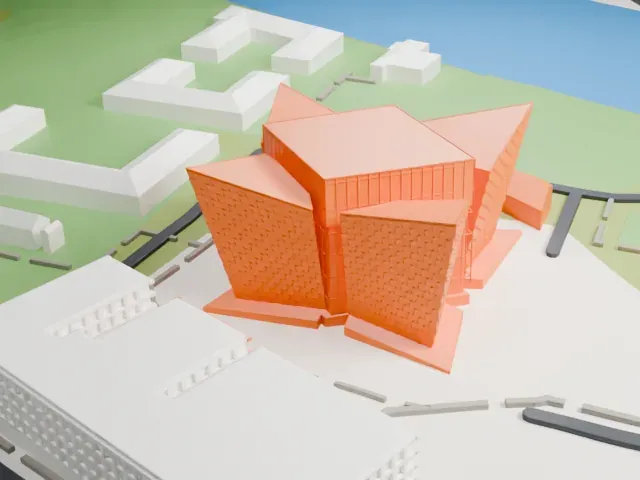

East
-
South
-

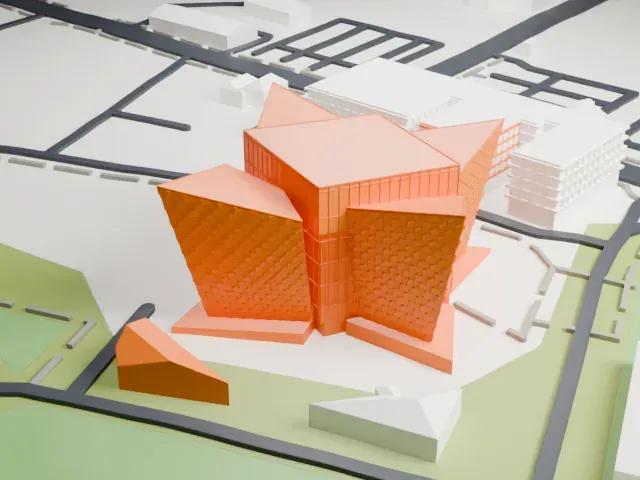

West

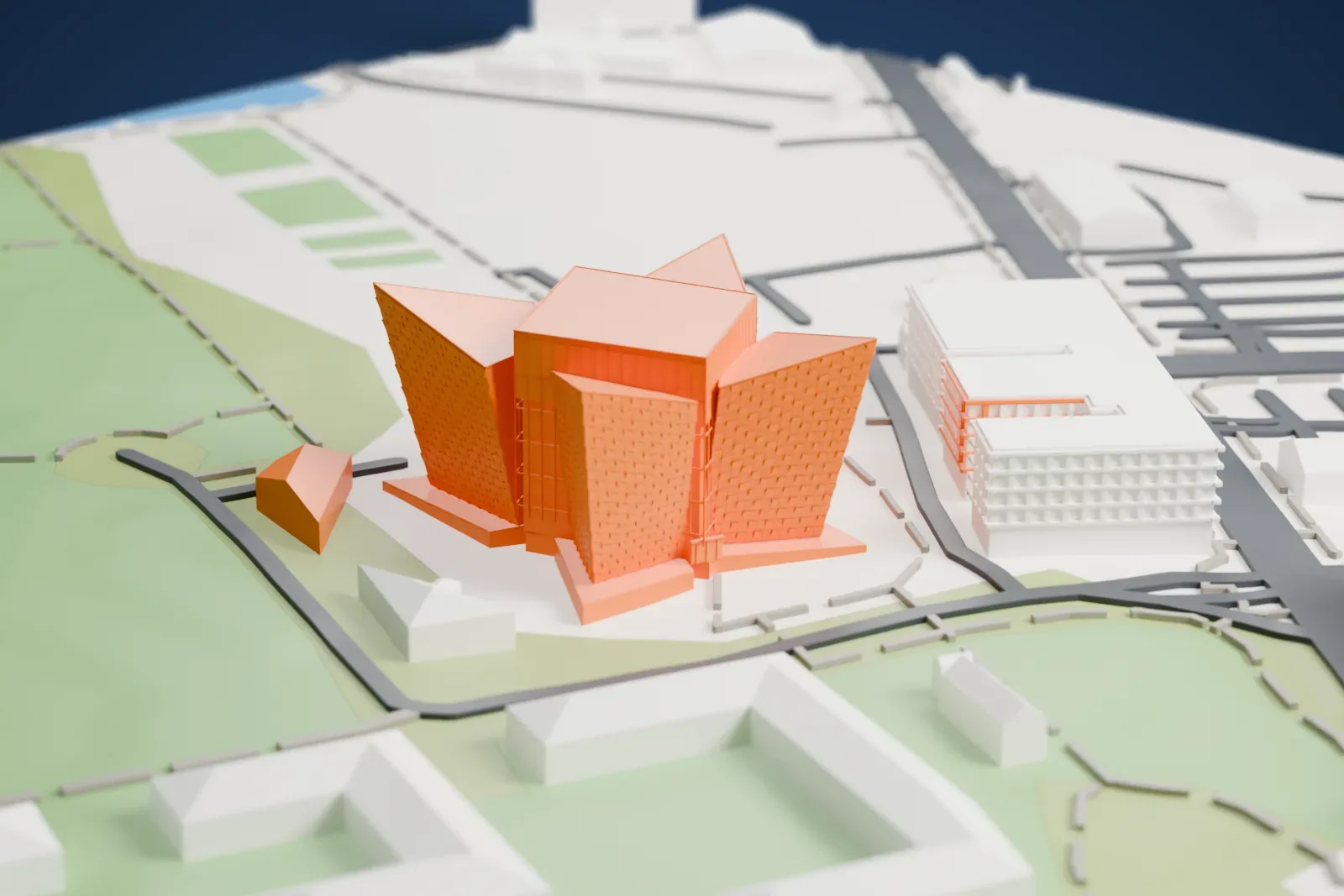

- Walls covered in shards
- Thousands of small angled shards cover the walls. Print friendly adapts small details to the print scale; Full detail keeps them all, which suits a larger print or a fine nozzle.
- Sharp prow points
- Four angled prows jut out from a central block, ending in sharp points. A bigger print keeps those points sharper, and layers of 0.12 to 0.16 mm help the angled edges stay crisp.
- One piece with the ground
- Titanic Belfast is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Titanic Belfast takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
Titanic Belfast is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a Titanic Belfast STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. Titanic Belfast grows with the print: about 11 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
