3D print Lusail Sports Arena
A free, printable model of Lusail Sports Arena, a broad domed hall with two lower end lobes, among the surrounding streets and buildings of Lusail, generated from real map data in your browser.
-

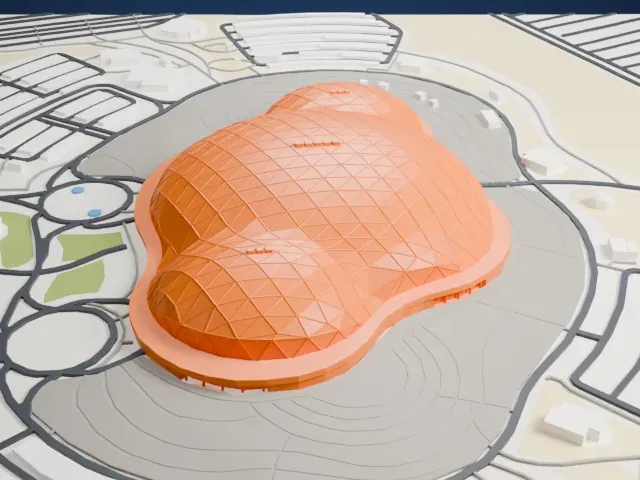

North
-

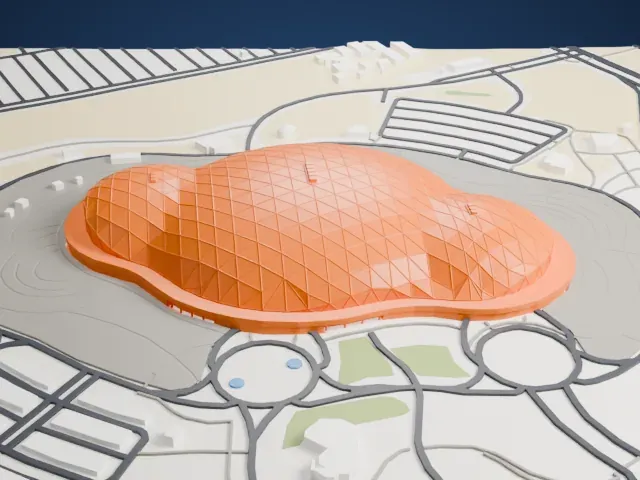

East
-

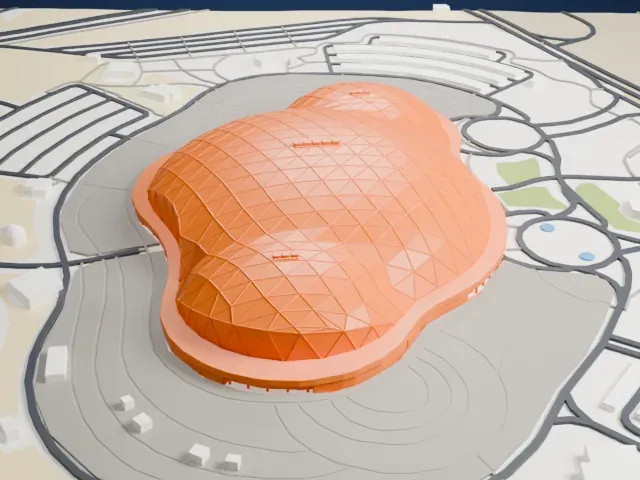

South
-

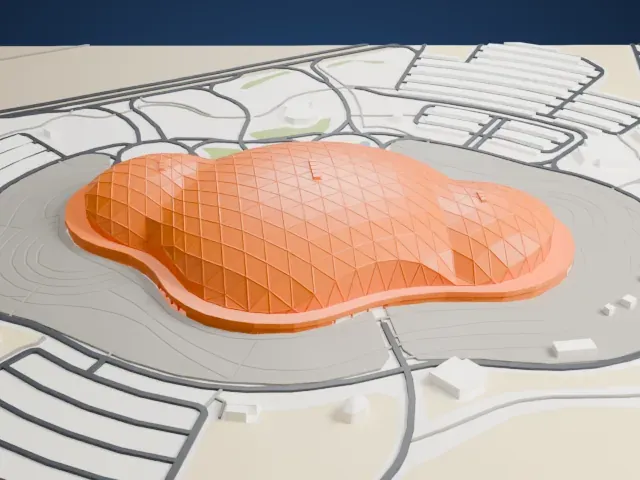

West
The model you print

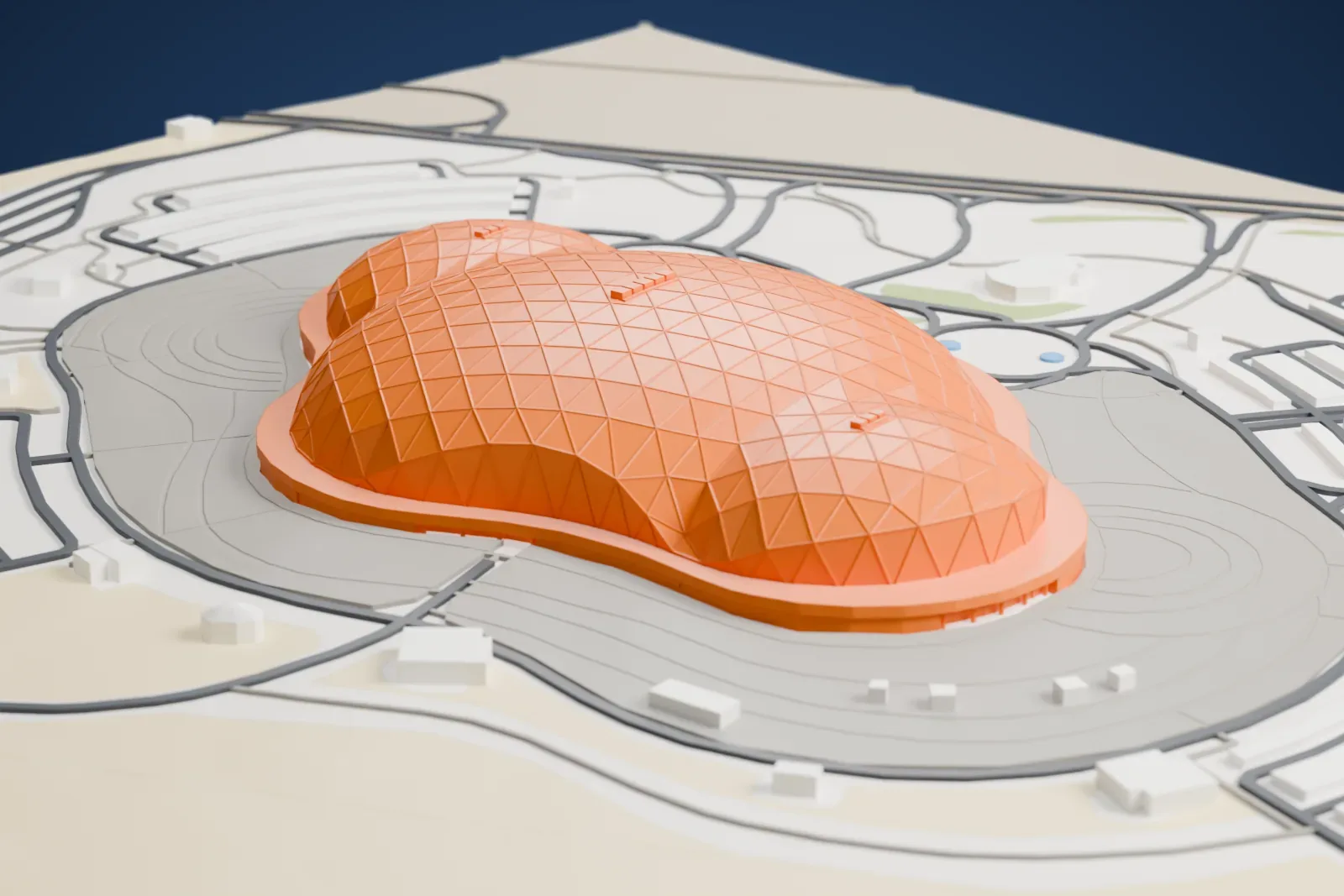

Lusail Sports Arena in 3D
The landmark on its own, at its size on a 160 mm print. Print friendly thickens thin parts for a 0.4 mm nozzle; Full detail keeps every part.
- On a 160 mm print
- 11 mm
- Scale
- 1:4,688
11 mm tall on a 160 mm print
Make this print opens the generator on a 750 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- Dome, lobes and saddles
A broad central dome flows into two lower end lobes through shallow saddle roofs. Print friendly adapts the thin saddle edges and roof plant; Full detail keeps every modeled facet for a larger print.
- Triangular roof grid
A triangular structural grid covers the shell, with raised ribs marking each facet. Layers of 0.12 to 0.16 mm and slower printing help those thin ribs stay crisp.
- One piece with the ground
Lusail Sports Arena is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Lusail Sports Arena takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About Lusail Sports Arena
Lusail Sports Arena, also called Lusail Multipurpose Hall, is an indoor arena in Lusail, Qatar. It occupies 140,000 m2 in Al Ahli Sports Village, about 1,500,000 sq ft. With seating for more than 15,300 people, it was built for handball, volleyball and basketball tournaments as well as music concerts. Qatar's men's national handball team also uses the arena.
Construction of the arena began in 2012 and cost about US$318 million. It opened in 2014. The Qatar Olympic Committee commissioned Dar Al-Handasah to design the arena. The design draws on the local culture of Qatar, using sea, pearl and desert-sand colors around a central dome inspired by classic Islamic architecture.
The building was planned to limit cooling demand through fritting, shading and bright finishes, and it balances opaque and glazed walls. The 2015 men's world handball championship was among the largest events staged there. On January 18, 2019, the venue held its biggest music event, with a live concert by Arijit Singh.
About this model
Lusail Sports Arena is one of more than 4,900 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
