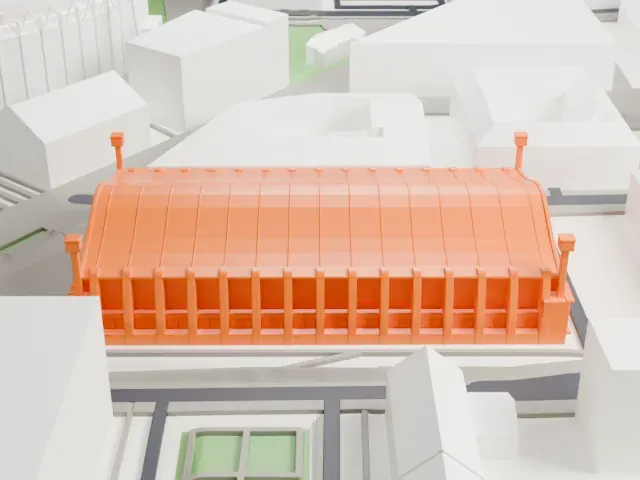

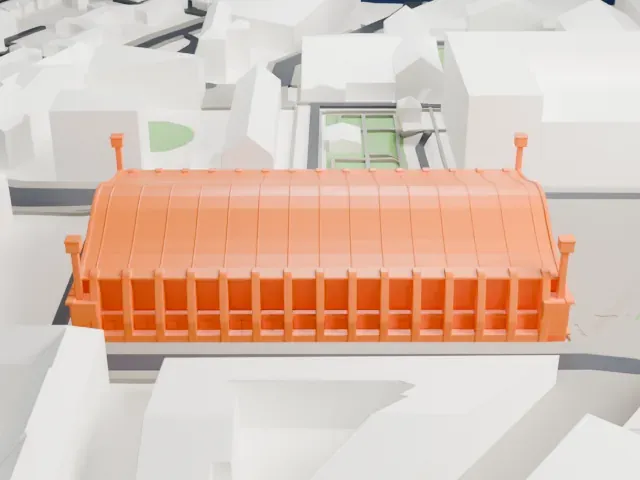

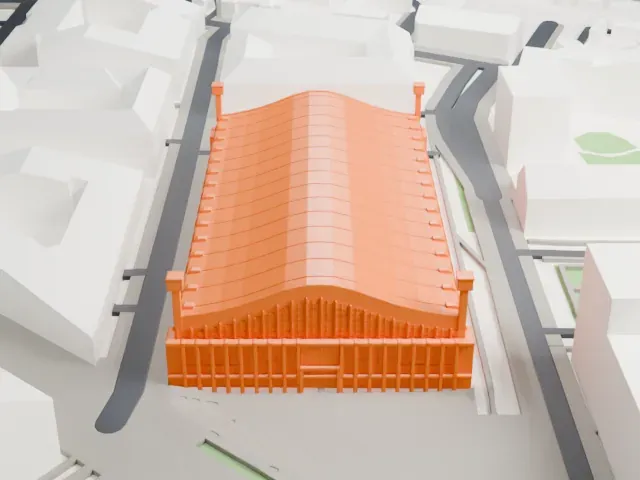

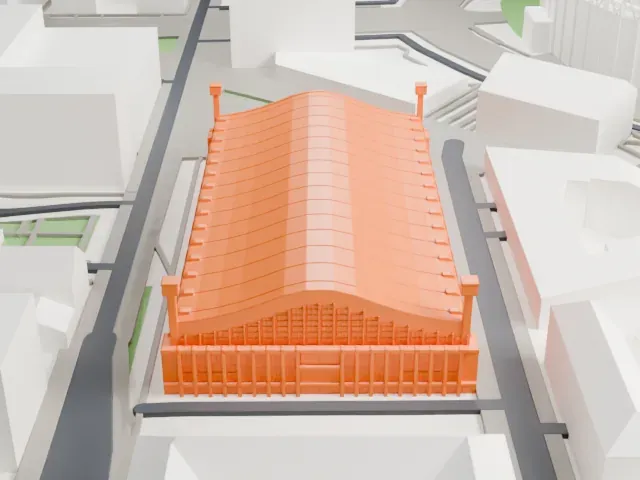

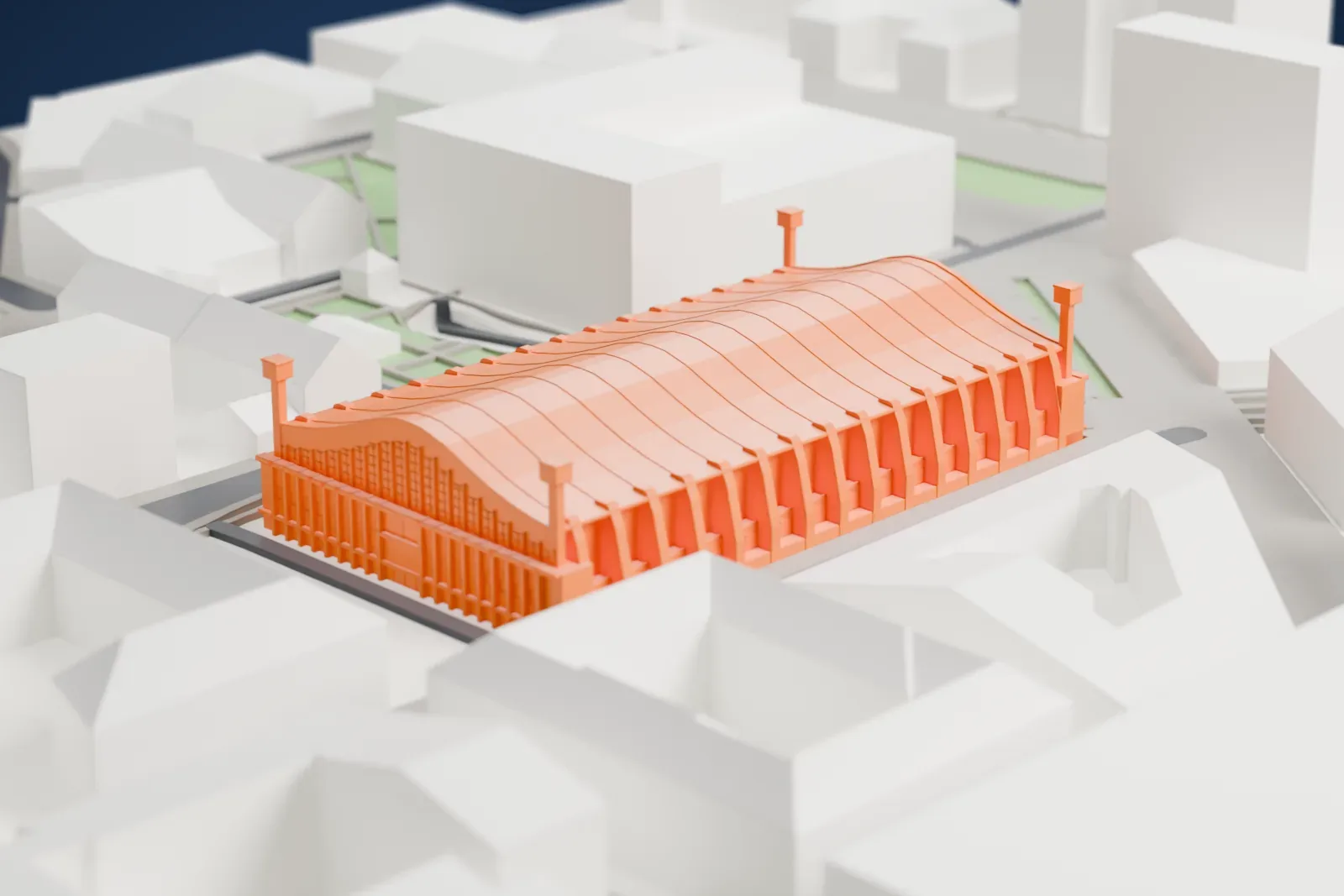

3D print Wembley Arena
A free, printable 3D model of Wembley Arena in Wembley, Greater London, generated from real map data in your browser, with the surrounding streets and buildings of the Wembley Park area around it.
-
North
-
East
-
South
-
West
- On a 160 mm print
- 8 mm
- Scale
- 1:3,750
8 mm tall on a 160 mm print
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- A broad, low arena
The arena is wide and low, so its detail lies in the footprint and the roof lines; a larger print or the Full detail setting keeps those edges sharp.
- Fine layers for long walls
Layers of 0.12 to 0.16 mm keep the roofline and the wall edges crisp, and slow printing helps the long straight sides.
- One piece with the ground
Wembley Arena is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Wembley Arena takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About Wembley Arena
Wembley Arena is an indoor venue beside Wembley Stadium in Wembley, part of Greater London. With 12,500 seats it is the second-largest indoor arena in Greater London, after the O2 Arena, and ranks ninth in the United Kingdom. Arthur Elvin built it as the Empire Pool for the 1934 British Empire Games, where its swimming events were staged; the pool's final Olympic use came in 1948. Music, comedy, family entertainment and sport all feature in its program.
The engineer Sir Owen Williams designed it without an architect. He gave the hall a frame of reinforced concrete, built as three hinged arches that reach 240 feet (73 m), the largest concrete span of its kind in the world at the time, and let cantilevers meet at the middle so that pillars were unnecessary inside. He chose high-quality concrete, and the building has aged better than most newer concrete work. Fifteen massive buttresses line the sides, and 20 narrow window lights, taller toward the center, glaze the tops of the ends.
The Empire Pool was begun in November 1933, and Prince Henry, Duke of Gloucester opened it on July 25, 1934. The pool measured 200 feet (61 m) by 60 feet (18 m) and had a deck that came out for ice skating; ice hockey arrived that October. The building gained Grade II Listed status in October 1976, took the Wembley Arena name on February 1, 1978, and shut for fourteen months from February 2005 for a £35 million refurbishment, reopening on April 2, 2006 with Depeche Mode.
About this model
Wembley Arena is one of more than 4,400 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
