3D print the Guinness Storehouse
A free, printable model of the Guinness Storehouse and the buildings and streets around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About the Guinness Storehouse
The Guinness Storehouse is a visitor attraction inside the brewery at St. James's Gate in Dublin, Ireland. Its building dates from 1902, when it was put up as the brewery's fermentation plant in the Chicago School style. It is described as the first steel-framed multi-storey building constructed in Ireland, and it stayed in use as the fermentation plant until 1988.
In 1997 the brewery decided to turn the building into the Storehouse, which took over from the Hop Store as its visitor center. Imagination, a UK-based design firm, handled the redesign with RKD, a Dublin firm of architects. The doors opened to the public in 2000, and a new wing followed in 2006-08.
Around a glass atrium shaped like a pint of Guinness, the Storehouse spans seven floors. The ground floor presents the four ingredients of the beer, namely water, barley, hops and yeast, along with its founder, Arthur Guinness. He signed a 9,000-year lease on the brewery site, and a copy sits at the foot of the atrium. On the seventh floor, the Gravity Bar looks out over Dublin.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 14 mm | 1:3,750 |
| 200 mm | 17 mm | 1:3,000 |
| 256 mm | 22 mm | 1:2,344 |
-

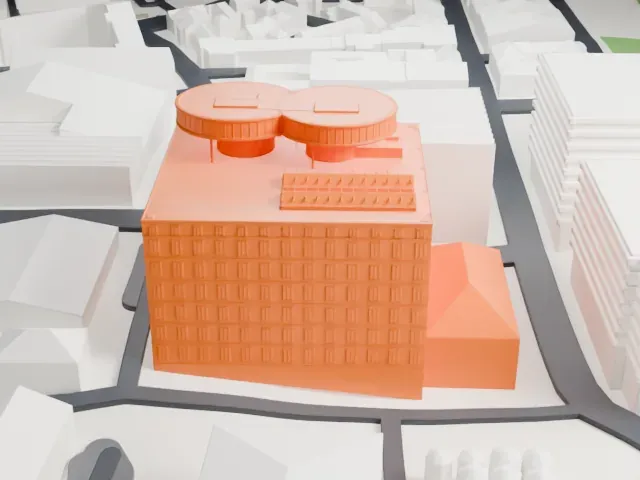

North
-

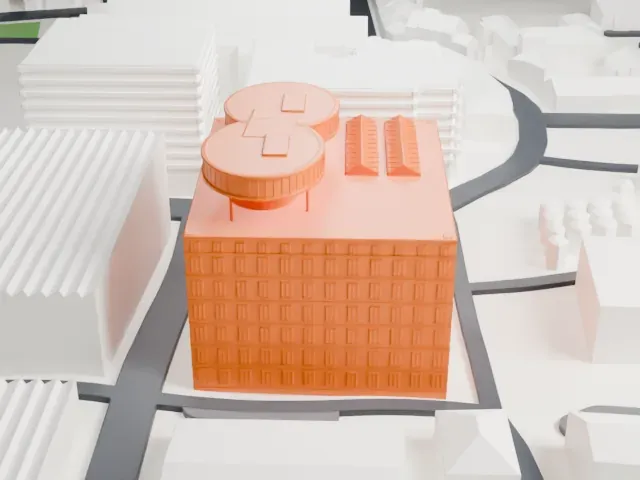

East
-
South
-

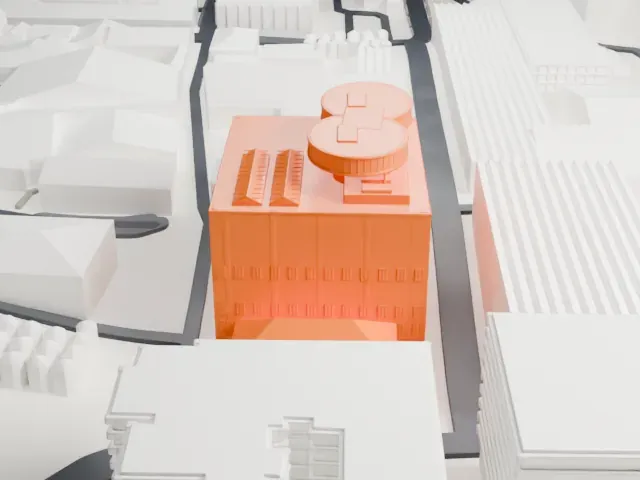

West

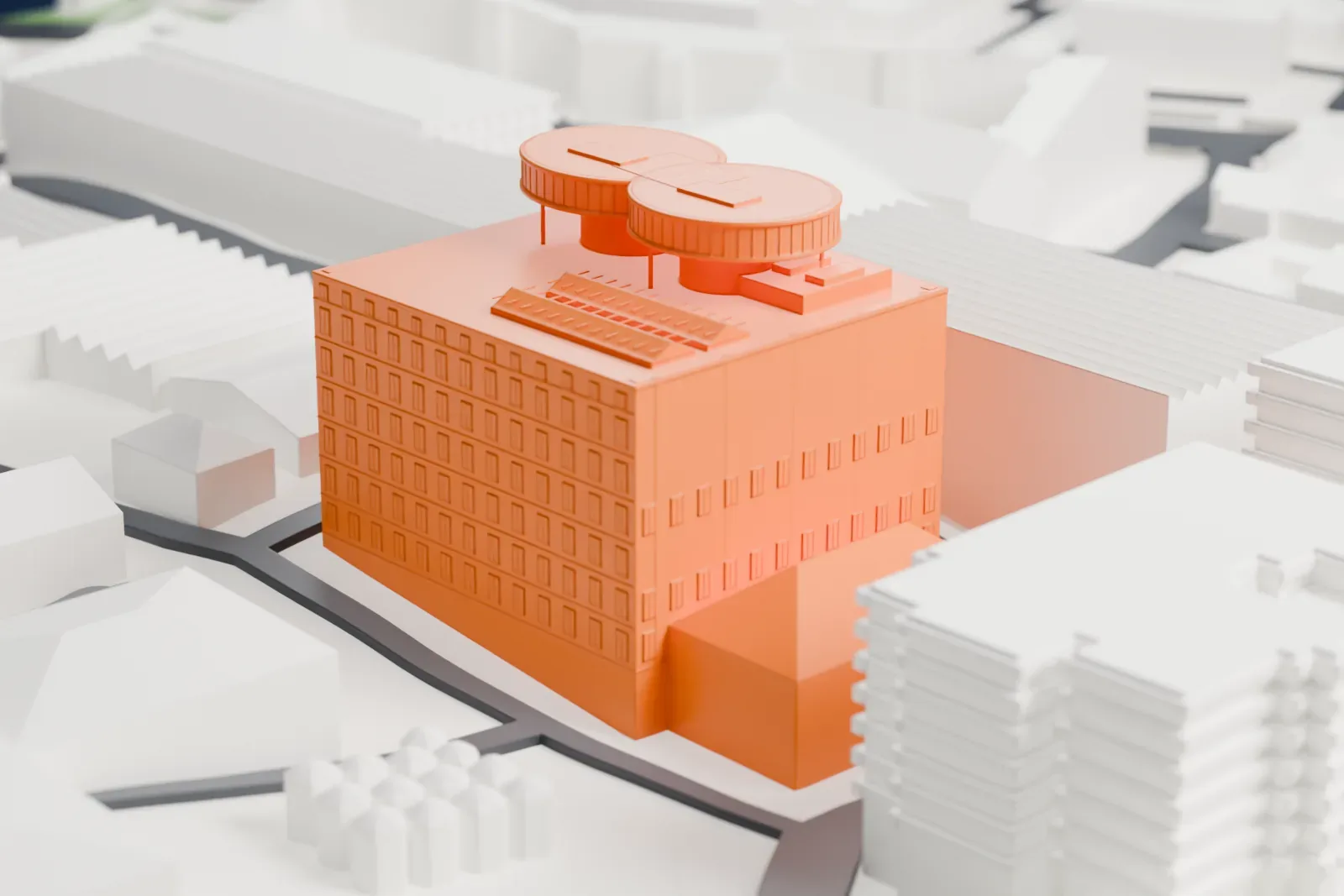

- Round discs on the roof
- Two overlapping round decks sit on the roof of the block on slender supports. Print friendly adapts these thin parts to the print scale; Full detail keeps them on a larger print.
- Fine facade lines
- The tall walls carry many fine horizontal lines. A layer height of 0.12 to 0.16 mm keeps them crisp, and a larger print size preserves more of them.
- One piece with the ground
- The Guinness Storehouse is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. The Guinness Storehouse takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
The Guinness Storehouse is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a Guinness Storehouse STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. The Guinness Storehouse grows with the print: about 14 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
