3D print the Milano Centrale railway station

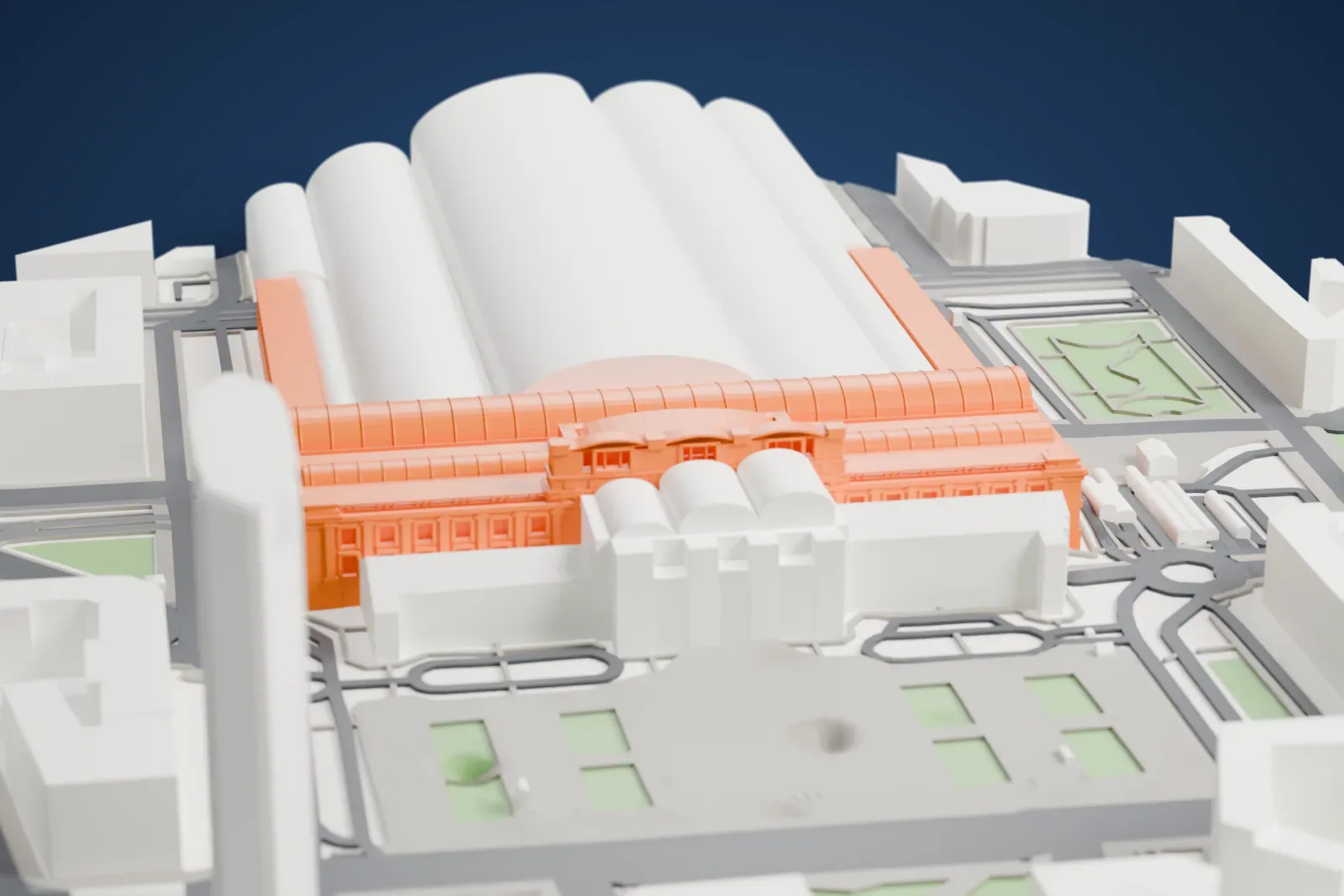

A free, printable model of Milano Centrale, a long station building among the surrounding streets and buildings, generated from real map data in your browser.
-
North
-
East
-
South
-
West
- On a 160 mm print
- 12 mm
- Scale
- 1:3,750
12 mm tall on a 160 mm print
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- A long building on the base
The station is long and low at this scale, so its roof edge and outer walls carry most of the detail. Print it larger so those long edges stay distinct.
- Fine layers on flat faces
The front and side walls are large, mostly flat faces, where layer lines show. Layers of 0.12–0.16 mm and a slower speed keep them even.
- One piece with the ground
The Milano Centrale railway station is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. The Milano Centrale railway station takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About the Milano Centrale railway station
Milano Centrale, the principal station in Milan, northern Italy, is Europe's largest railway station by volume, and by passenger flow it ranks second in Italy after Roma Termini. It is a terminus, at the northern edge of central Milan. High-speed trains leave it for Turin, for Venice via Verona, and for Bologna, Rome, Naples and Salerno on the north–south mainline, while international services reach Basel, Geneva, Zürich, Paris and Lyon.
Officially opened in 1931, the station took over from the 1864 central station, a transit station whose tracks and space could not handle the traffic that came after the Simplon Tunnel opened in 1906. King Victor Emmanuel III laid the cornerstone on April 28, 1906, before a design had even been chosen. The competition was won in 1912 by the architect Ulisse Stacchini, with a scheme he called In Motu Vita. Work was slow during World War I and resumed in 1925.
Alberto Fava's steel canopies run 341 m (1,119 ft) and cover 66,500 square meters (716,000 sq ft). The facade is 200 meters (660 ft) wide, the vault rises 72 meters (236 ft), which was a record for its time, and there are 24 platforms. The building has no single architectural style but blends many, especially Liberty and Art Deco, and is adorned with numerous sculptures. During the Holocaust, Jewish prisoners from San Vittore were brought to a hidden track, Binario 21, beneath the station for deportation, and a Memoriale della Shoah opened at that platform in January 2013.
About this model
The Milano Centrale railway station is one of more than 4,400 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
