3D print the Torre de Collserola
A free, printable 3D model of the Torre de Collserola and its hilltop surroundings, generated from real map data in your browser.
-

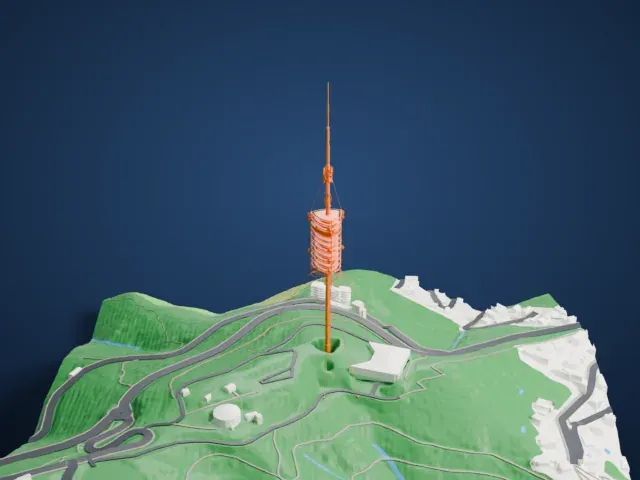

North
-

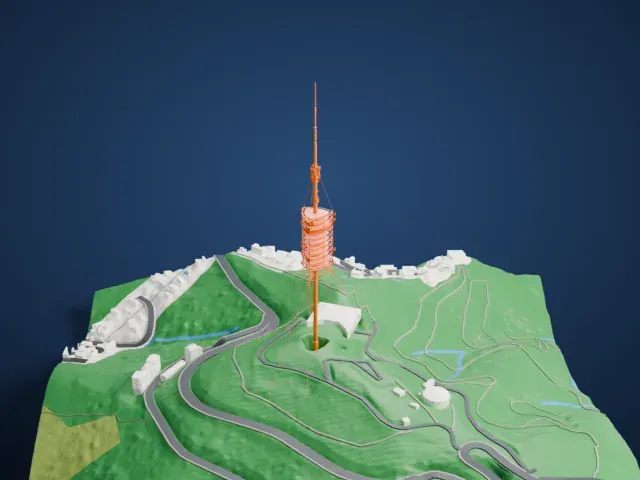

East
-

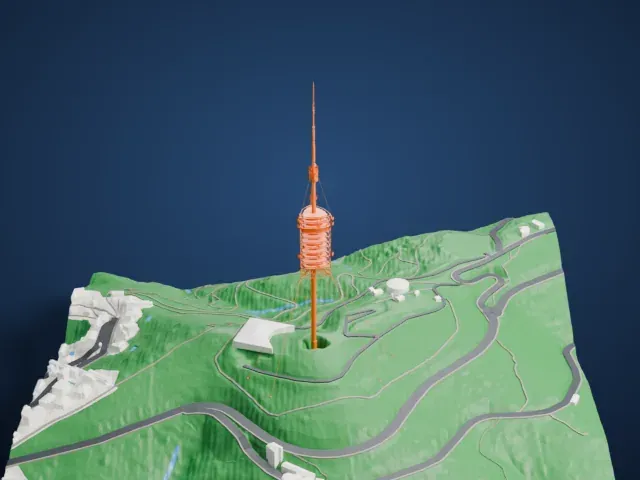

South
-

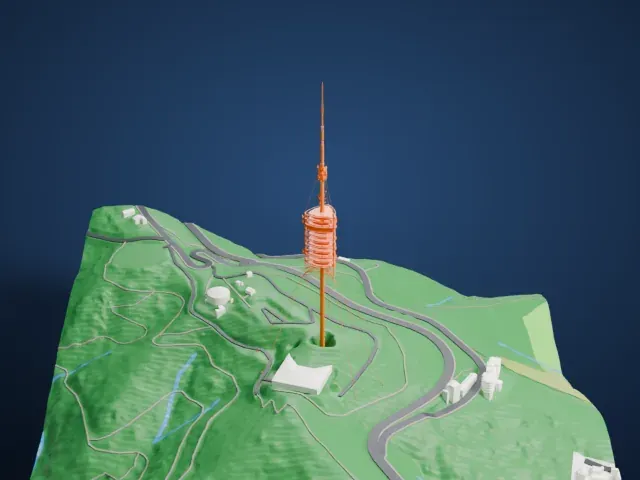

West
The model you print

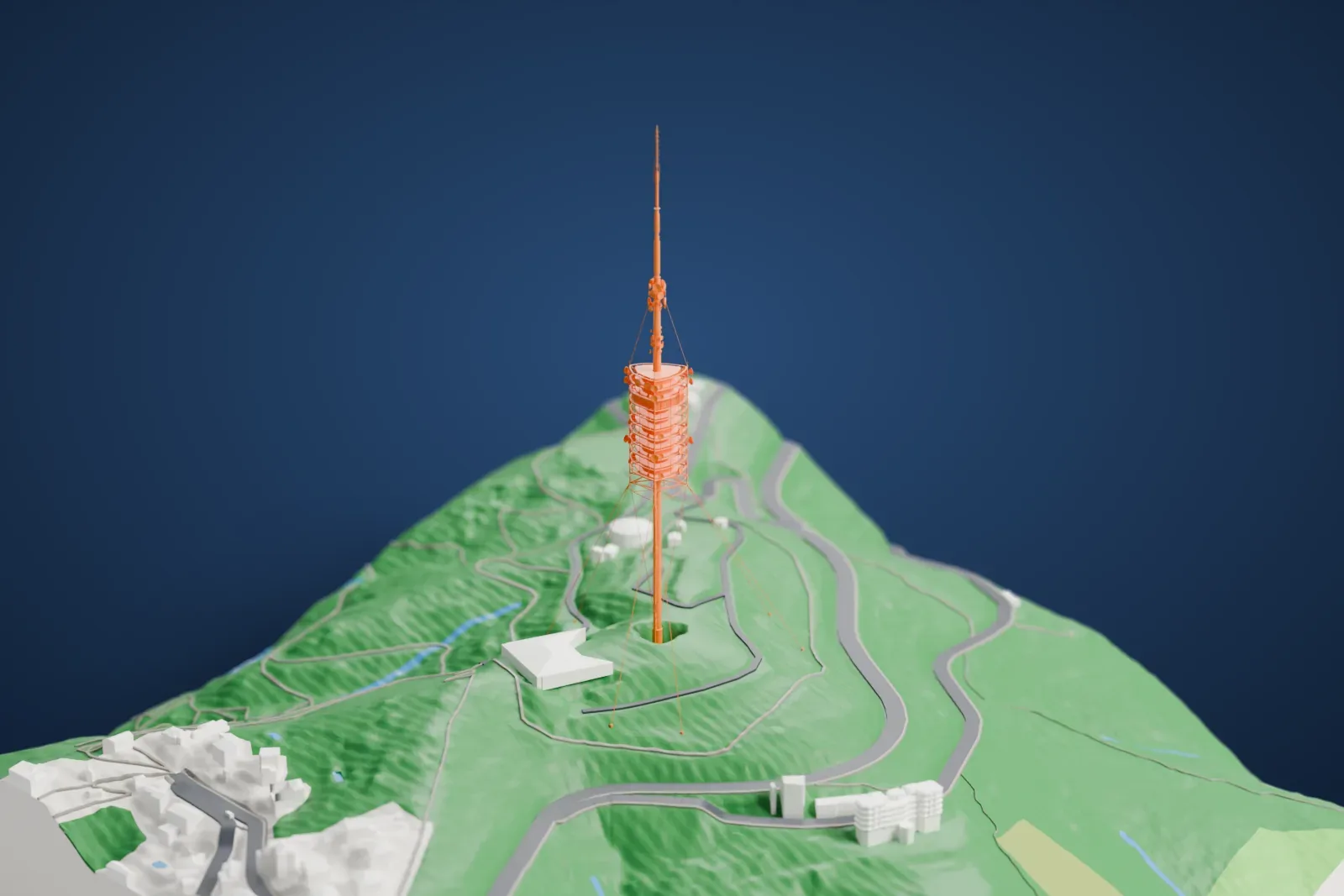

Torre de Collserola in 3D
The landmark on its own, at its size on a 160 mm print. Print friendly thickens thin parts for a 0.4 mm nozzle; Full detail keeps every part.
- Real height
- 288 m
- On a 160 mm print
- 84 mm
- Scale
- 1:3,750
288 m of the Torre de Collserola, 84 mm on your shelf
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- Mast and guy wires
A thin antenna mast rises from a pod carried on a slender shaft, with guy wires running down to the hill. Print at Full detail or a larger size so the mast tip and cables stay continuous.
- Open pod galleries
The pod is ringed by open frames and projecting dishes. A 0.12–0.16 mm layer height helps the thin platform edges and rails, and a larger print keeps them distinct.
- One piece with the ground
The Torre de Collserola is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. The Torre de Collserola takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About the Torre de Collserola
Torre de Collserola is a tower in the Serra de Collserola, on Tibidabo hill above Barcelona in Catalonia, Spain. Architect Sir Norman Foster designed it with Julio Martínez Calzón and with Manuel Julià Vilardell, Spanish civil engineers, and Cubiertas y MZOV S.A. built the tower in 1991 for the 1992 Summer Olympics.
The tower pairs a pod of usable floors with a mast-like structure held upright by guy wires. Its top antenna reaches 288.4 meters (946 ft), while the top of the thirteen-floor pod stands at 152 meters (499 ft). It is used mainly as a television and radio transmitter, and its height gives it the highest viewpoint over Barcelona.
The main shaft is a hollow, slip-formed reinforced concrete tube just 4.5 meters across, narrowing to 3 meters to carry the radio mast. The thirteen floors hang from the shaft on three vertical steel trusses and are ringed by open stainless steel grilles. The whole tower weighs 3,000 tons.
About this model
The Torre de Collserola is one of more than 4,900 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
