3D print Ak Bars Arena
A free, printable model of Ak Bars Arena, a stadium with a broad curved roof around an open center, with surrounding streets and buildings, generated from real map data in your browser.
-

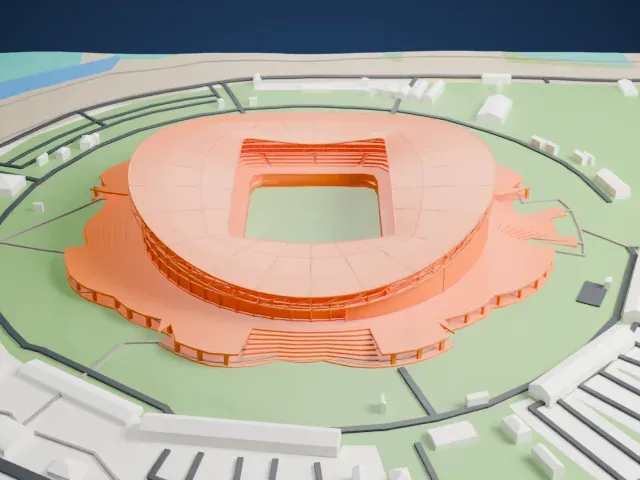

North
-

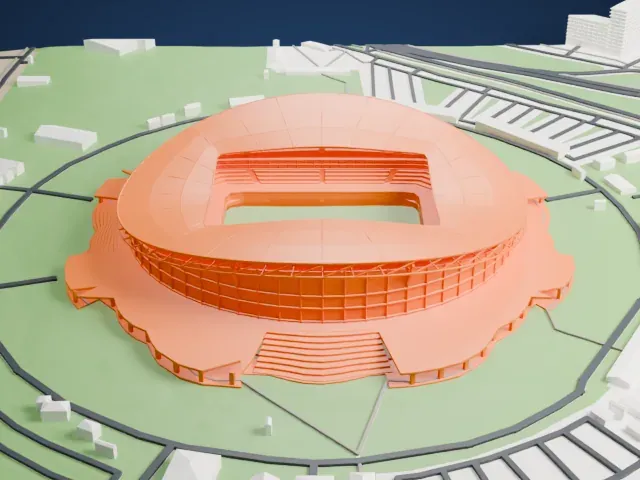

East
-

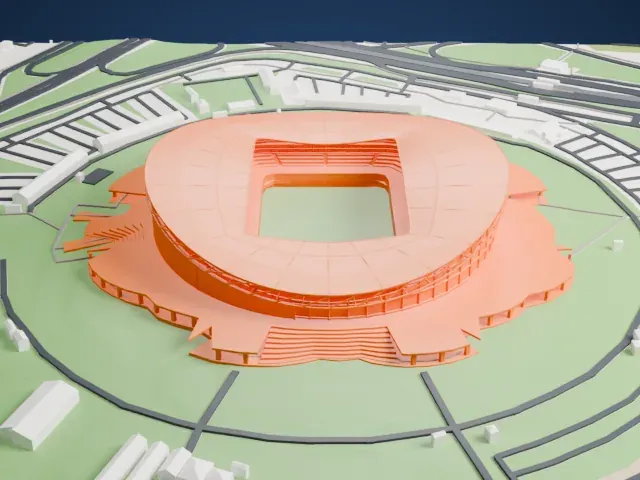

South
-

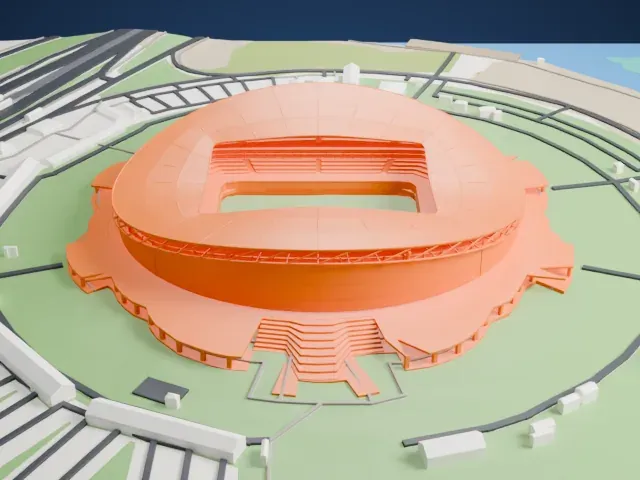

West
The model you print

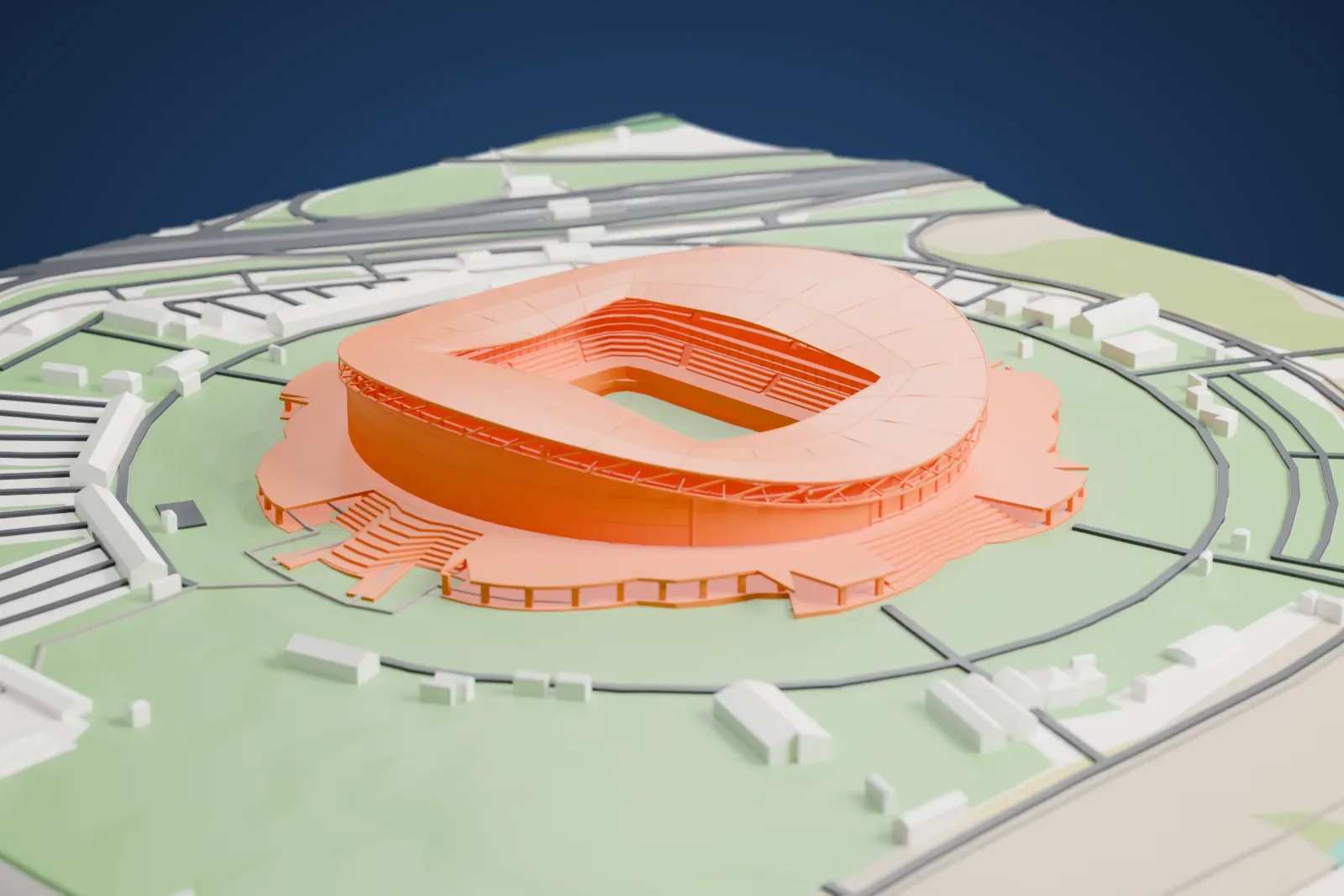

Ak Bars Arena in 3D
The landmark on its own, at its size on a 160 mm print. Print friendly thickens thin parts for a 0.4 mm nozzle; Full detail keeps every part.
- On a 160 mm print
- 12 mm
- Scale
- 1:4,375
12 mm tall on a 160 mm print
Make this print opens the generator on a 700 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- Open roof aperture
The roof wraps around a rounded rectangular opening, with radial ribs and a deep fascia. Print friendly simplifies the thin roof edge; Full detail keeps the ribs and opening rim for a larger print.
- Curved media facade
A broad curved screen sits under the arched west roof edge. Use 0.12 to 0.16 mm layers to keep the frame and facade bands clean, and print slowly if the thin canopy edge cools unevenly.
- One piece with the ground
Ak Bars Arena is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Ak Bars Arena takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About Ak Bars Arena
Kazan, Russia, is home to Ak Bars Arena, a stadium finished in July 2013. FC Rubin Kazan plays its Russian Premier League home games there, and the ground also contains the world's largest outside screen. Its capacity is around 45,379. The venue is multi-purpose and can stage other sporting events, concerts and cultural events.
It was built to stage the 2013 Summer Universiade. President Putin held the groundbreaking ceremony on May 5, 2010, and construction cost 15.5 billion rubles. The arena hosted the Universiade opening and closing ceremonies and the 2017 FIFA Confederations Cup, and the Russian Championship's first football match there came on August 17, 2014. It hosted six matches at the 2018 FIFA World Cup, including games in which Germany, Argentina and Brazil were eliminated.
The architectural concept was designed by Populous, and the stadium covers a territory of 28 ha. It includes 72 skyboxes and a fitness center, and it took over from Central Stadium as the city's main football ground. Lead designer Damon Lavelle called the stadium a unique response to its local culture and setting.
About this model
Ak Bars Arena is one of more than 4,900 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
