3D print Arena Lublin
A free, printable 3D model of Arena Lublin and its surrounding streets and buildings, generated from real map data in your browser.
-
North
-
East
-
South
-
West
The model you print

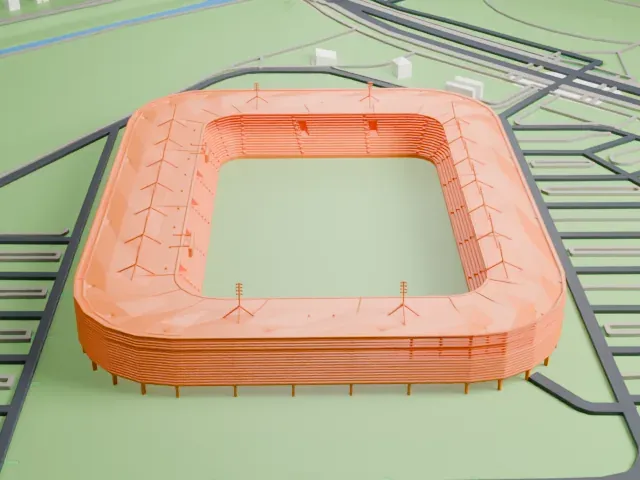

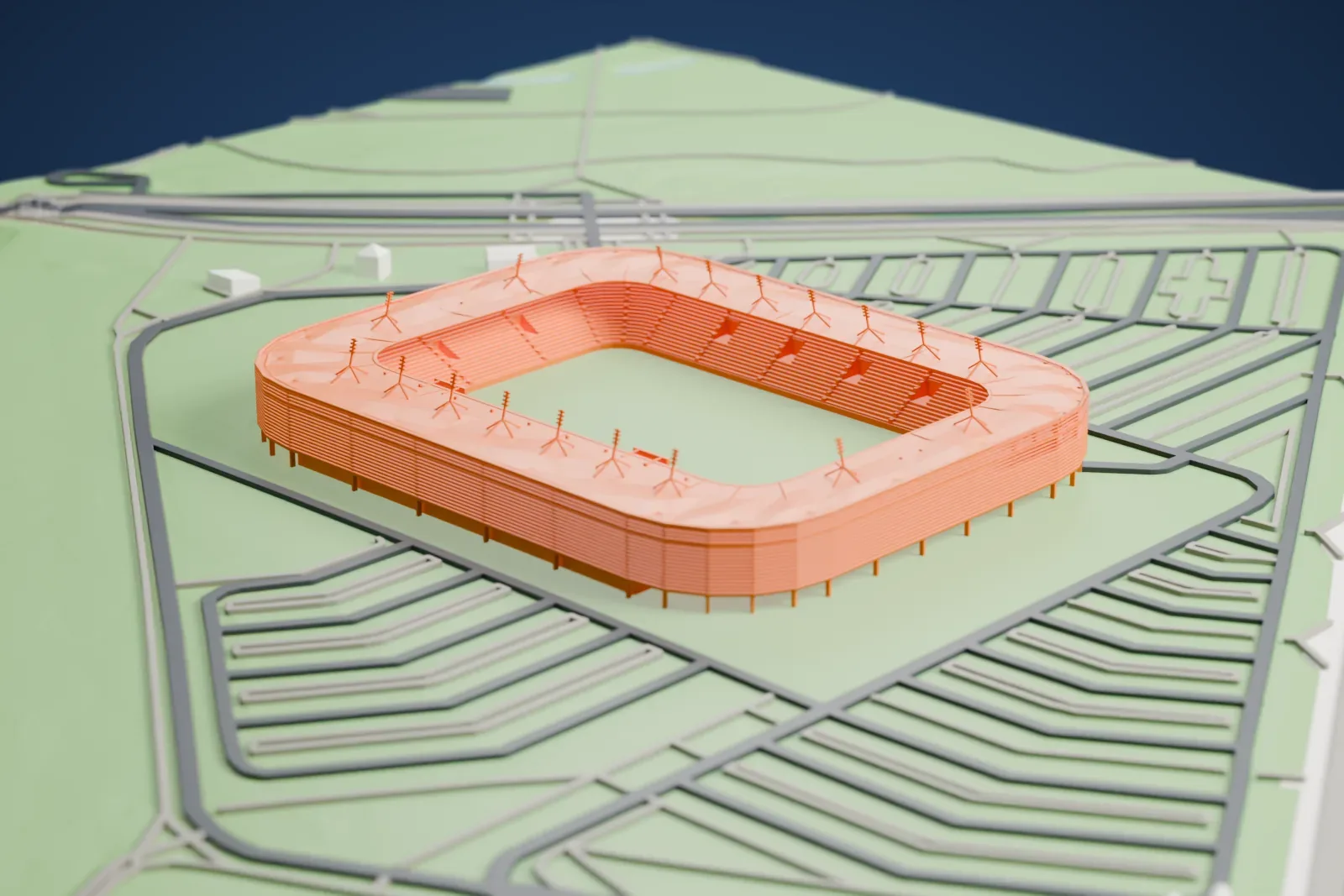

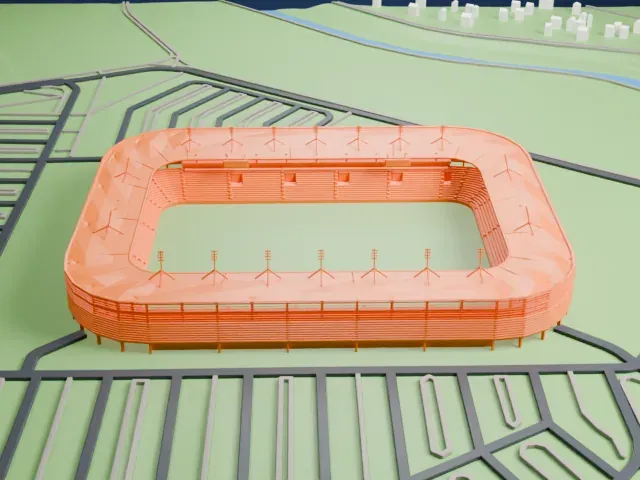

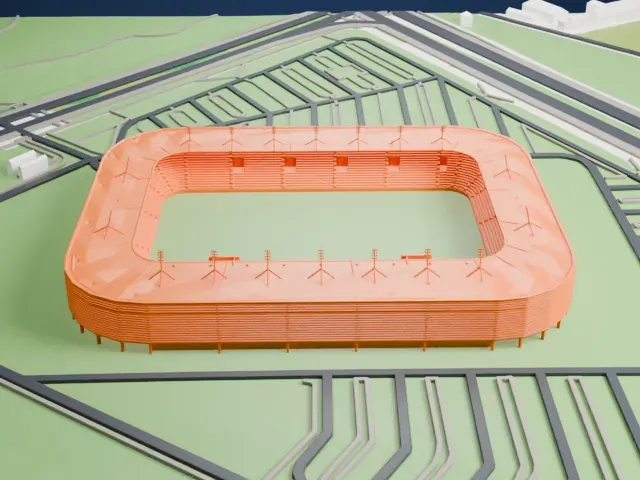

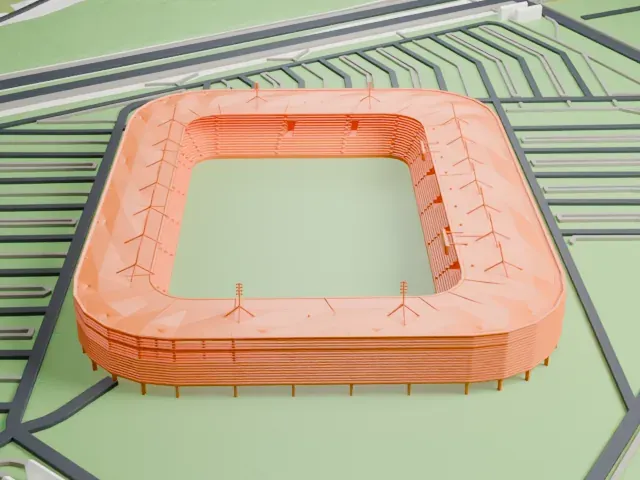

Arena Lublin in 3D
The landmark on its own, at its size on a 160 mm print. Print friendly thickens thin parts for a 0.4 mm nozzle; Full detail keeps every part.
- On a 160 mm print
- 7 mm
- Scale
- 1:3,750
7 mm tall on a 160 mm print
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- Floodlight forks and roof edge
The model rings the roof with tilted floodlight poles on forked supports. Print larger or at Full detail so the thin forks and pole tips survive.
- Open roof and louver screen
The stadium has a real opening over the pitch and a fine horizontal screen around the bowl. A 0.12–0.16 mm layer height helps the thin canopy edge and louver bands read.
- One piece with the ground
Arena Lublin is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Arena Lublin takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About Arena Lublin
Arena Lublin is a football stadium in Lublin, Poland, and the home ground of Motor Lublin. It holds 15,247 people. Budimex signed the construction contract on September 2, 2011, for PLN 136.2 million, and the design came from Estudio Lamela, an office that had earlier drawn up plans to modernize and enlarge Madrid's Santiago Bernabéu Stadium and had also designed the new Cracovia stadium. Ground was first broken in December 2012, with completion set for June 2014.
Poland U20 met Italy U20 in the opening match on October 9, 2014; Poland won 2–1, with Mariusz Stępiński scoring the first goal at the new ground. The FIFA U-20 World Cup in 2019 used the ground as one of its venues, and the Polish Cup final was staged there in 2019–20 and again in 2020–21.
About this model
Arena Lublin is one of more than 4,900 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
