3D print 32 Avenue of the Americas

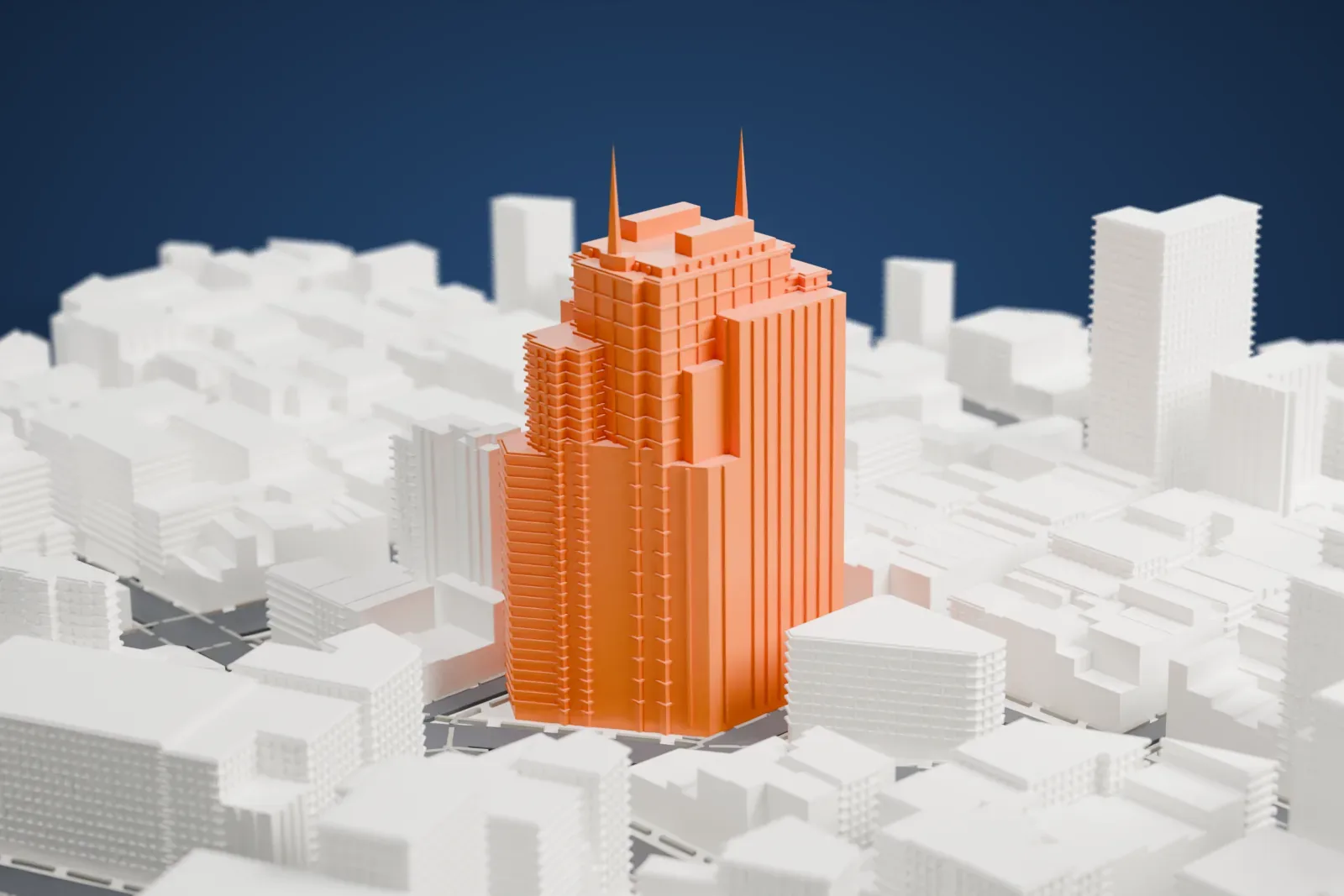

A free, printable model of 32 Avenue of the Americas, a stepped tower with two spires, and the blocks around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About 32 Avenue of the Americas
Completed in 1932, 32 Avenue of the Americas (it is also called the AT&T Long Lines Building) is a 27-story building for telecommunications in Manhattan's Tribeca area. It occupies the block formed by Walker, Lispenard and Church Streets and Avenue of the Americas, also called Sixth Avenue.
The height of 549 feet (167 m) includes two spires of 120 feet (37 m) each, which were added to a 429-foot (131 m) original. The Art Deco design came from Ralph Thomas Walker, of the firm Voorhees, Gmelin and Walker, and it was his last major skyscraper in Lower Manhattan. When finished, it was the world's largest building devoted specifically to long-distance calling.
The brick facade uses many hues, and the massing has numerous setbacks. Woven motifs dominate the ornament, because AT&T called its long-distance operators "Weavers of Speech". The exterior and the lobby were designated New York City landmarks in 1991.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 45 mm | 1:3,750 |
| 200 mm | 56 mm | 1:3,000 |
| 256 mm | 72 mm | 1:2,344 |
-

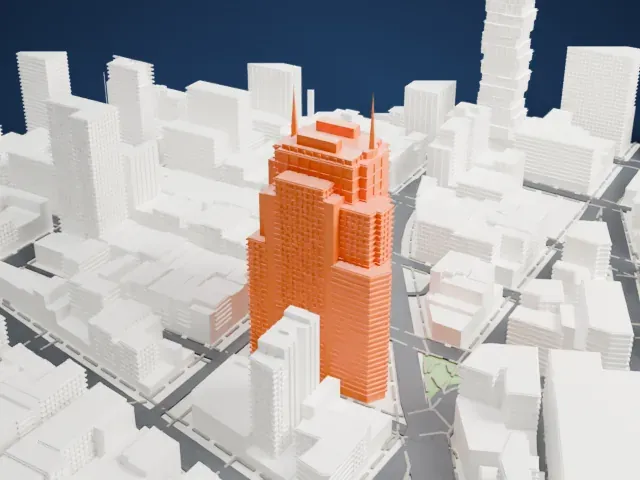

North
-

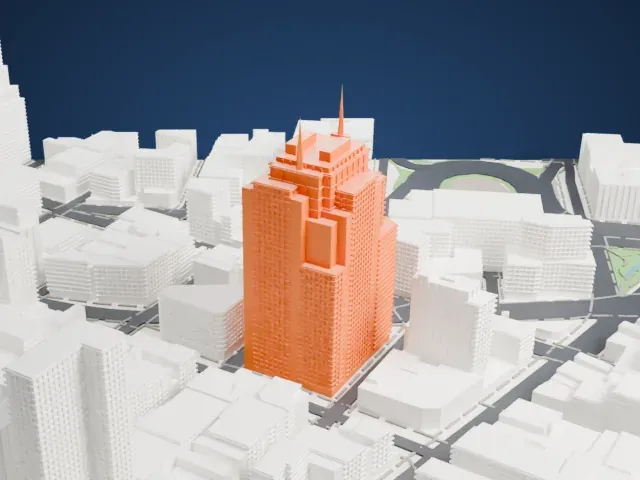

East
-
South
-

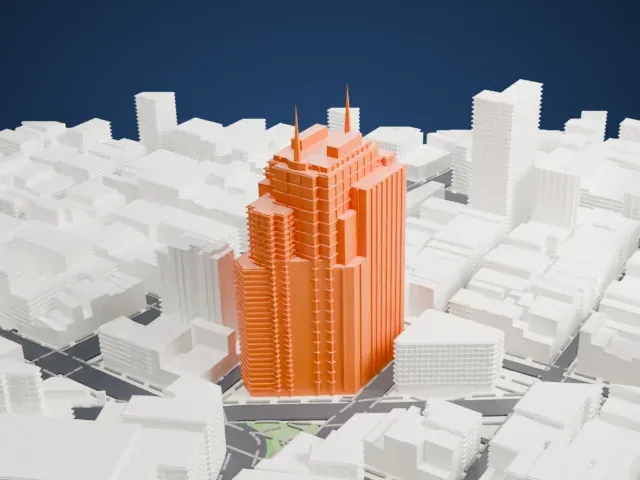

West
- Twin lattice spires
- The two thin spires on top are the most delicate parts. Use Print friendly to adapt them to the print scale, or Full detail on a larger print, and print slowly with good cooling.
- Setbacks and window bands
- Many stepped tiers and a fine window grid reward a layer height of 0.12-0.16 mm, and a bigger print size keeps the pattern of bands readable.
- One piece with the ground
- 32 Avenue of the Americas is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. 32 Avenue of the Americas takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
32 Avenue of the Americas is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a 32 Avenue of the Americas STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. 32 Avenue of the Americas grows with the print: about 45 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
