3D print 361 Broadway
A free, printable 3D model of 361 Broadway and the tall buildings around it, generated from real map data in your browser.
-

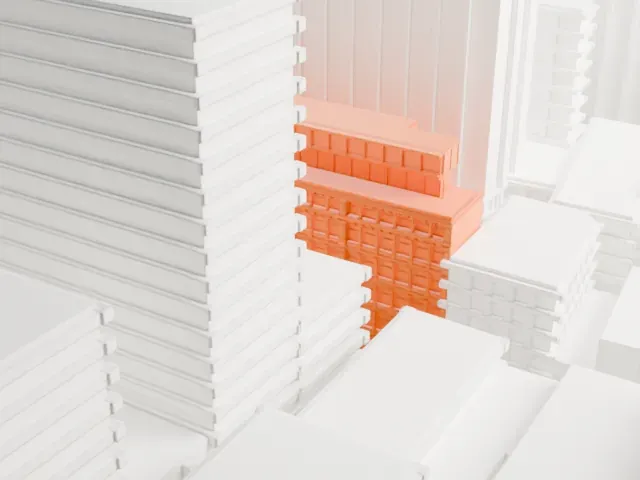

North
-

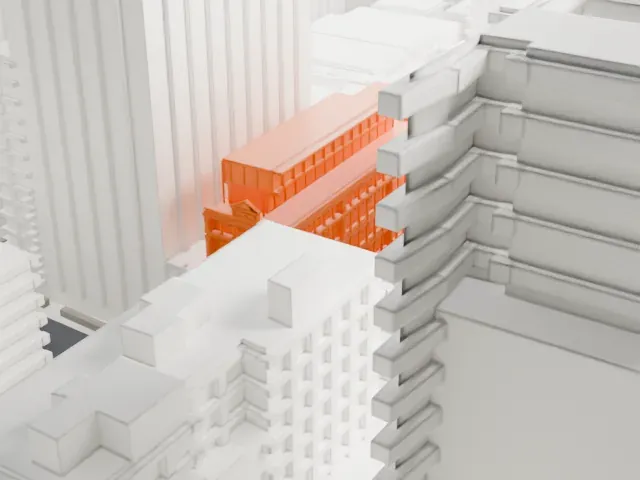

East
-

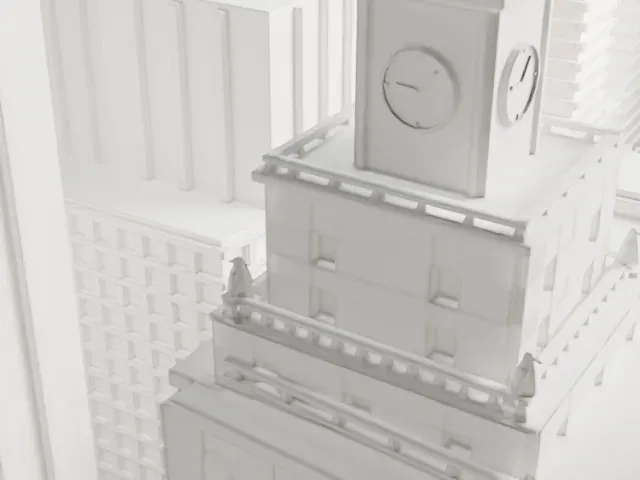

South
-

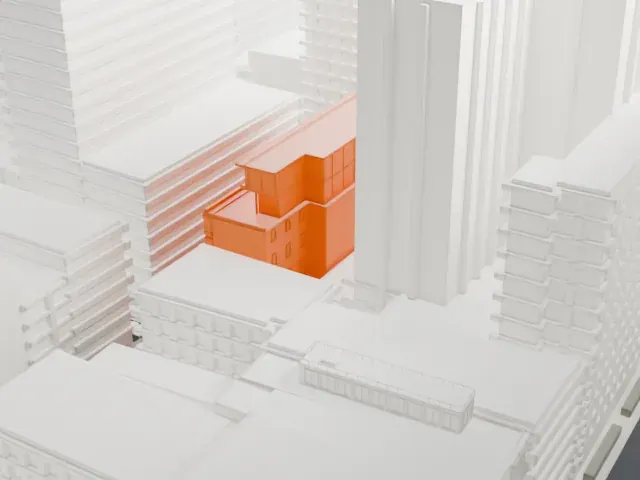

West
- On a 160 mm print
- 10 mm
- Scale
- 1:3,750

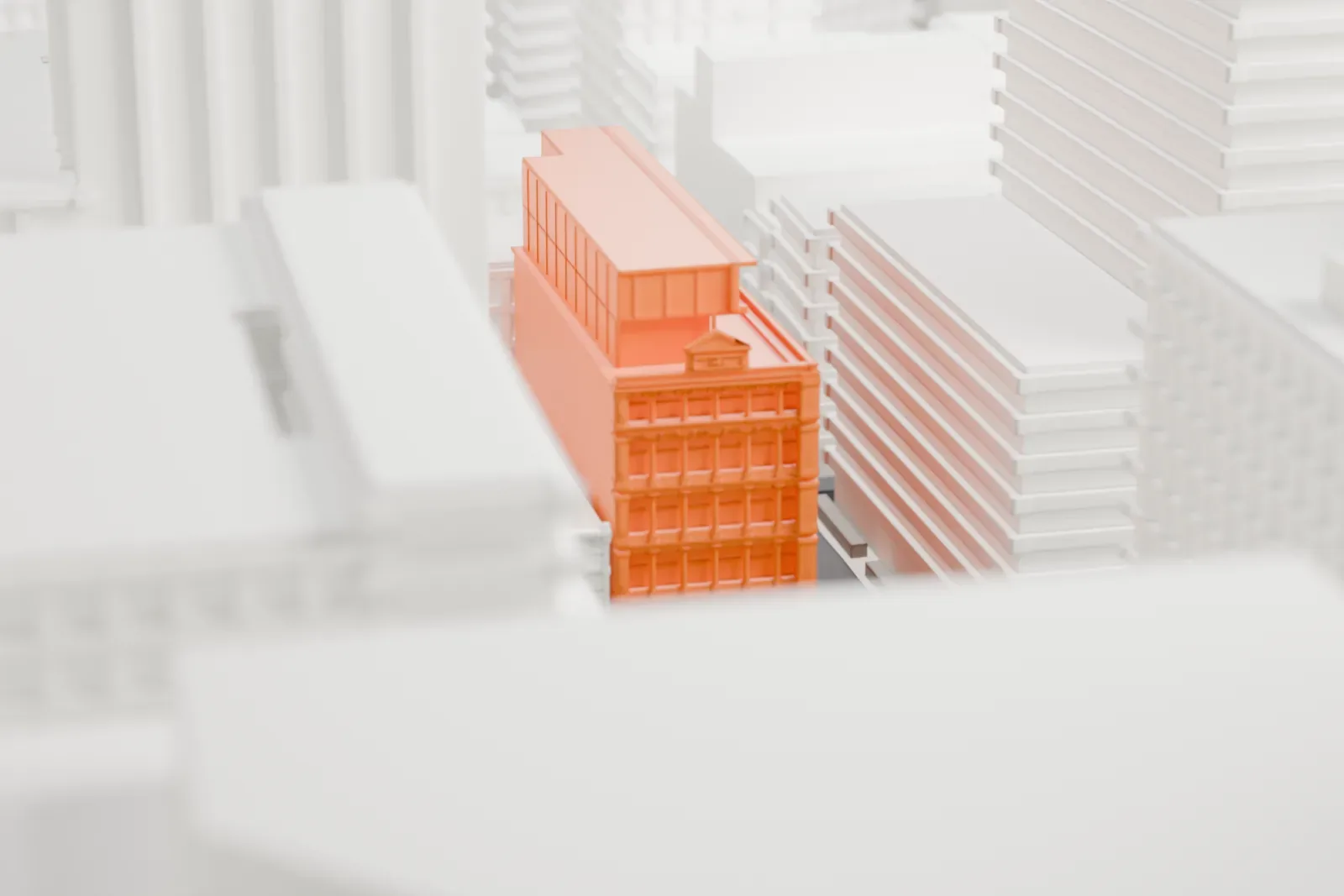

10 mm tall on a 160 mm print
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- A repeating facade grid
The facade is a grid of columns and window bays that turns into very fine lines at small sizes. Full detail on a larger print, with a 0.12–0.16 mm layer height, keeps the repeating lines crisp.
- One piece with the ground
361 Broadway is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. 361 Broadway takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About 361 Broadway
361 Broadway sits where Franklin Street meets Broadway, in Tribeca, Manhattan. The Cast Iron House is another name for it, and it used to be called the James White Building. Architect W. Wheeler Smith gave it an Italianate design, and it went up in 1881–82. Its cast-iron facade is held up as a fine late specimen of cast-iron architecture.
The building was primarily tied to the textile trade, though Scientific American had its offices there from 1884 to 1915. Architect Joseph Pell Lombardi renovated it in 2000, and facade restoration work started in 2009. New York City designated it a landmark on July 27, 1982. It joined the National Register of Historic Places later, on September 15, 1983.
Shigeru Ban Architects announced plans in 2014 to turn the building into a 13-unit condominium building, and the gut renovation finished in 2021 behind the restored cast-iron facade. The floor slabs came out, the six-story structure grew to seven stories, and a two-story penthouse structure on the roof uses a Vierendeel truss system. An independent structural system keeps the added load off the historic facade by using the existing foundation.
About this model
361 Broadway is one of more than 4,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
