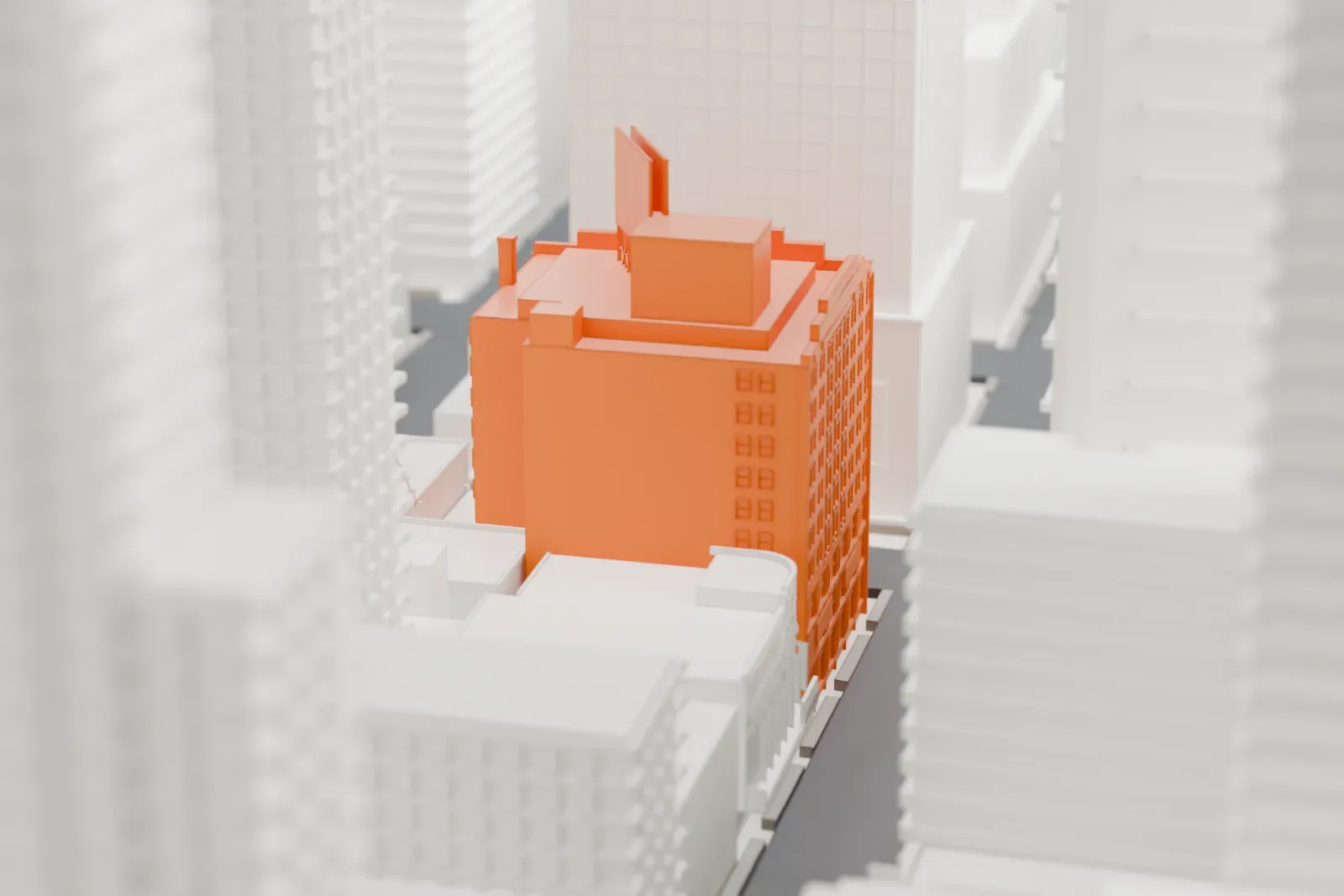

3D print the Brill Building
A free, printable model of the Brill Building, tucked among the taller towers of Midtown Manhattan, generated from real map data in your browser.
-

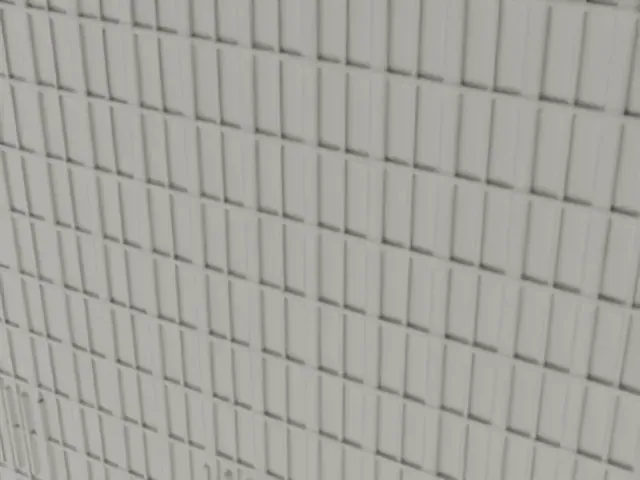

North
-

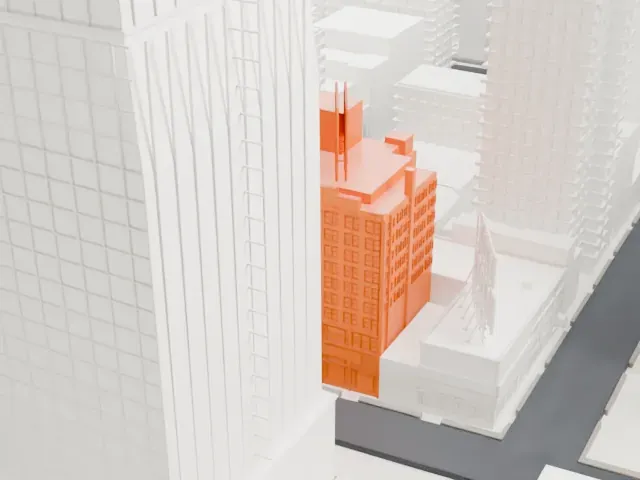

East
-

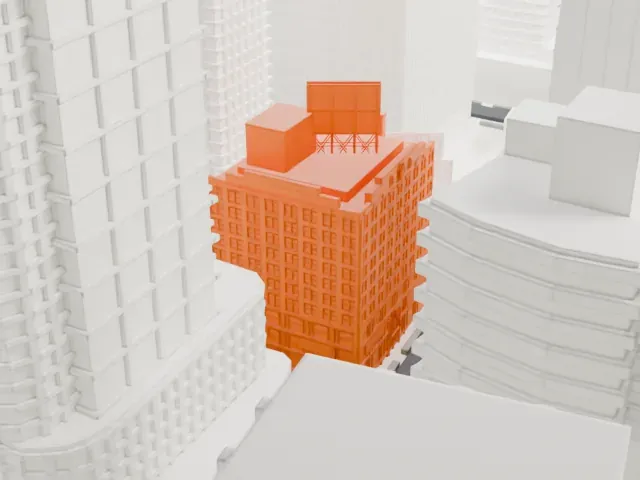

South
-

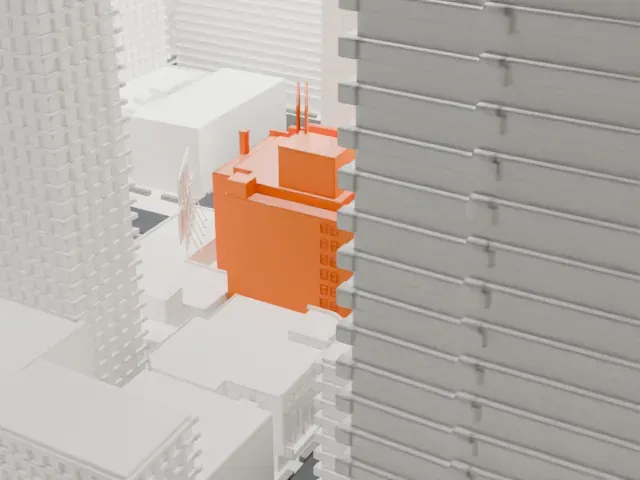

West
- On a 160 mm print
- 15 mm
- Scale
- 1:3,750
15 mm tall on a 160 mm print
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- Rooftop water tank and pipes
The roof carries a water tank on a frame of thin legs, plus ladders and tall pipes. Print friendly adapts these slender parts; Full detail keeps them for a larger print.
- Small window grids
The facade is stamped with regular rows of small windows. A bigger print size and a 0.12-0.16 mm layer height keep the grid crisp.
- One piece with the ground
The Brill Building is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. The Brill Building takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About the Brill Building
The Brill Building is an office tower on Broadway, at number 1619, where it meets 49th Street, just north of Times Square in Manhattan. It has 11 stories and roughly 175,000 square feet, or 16,300 m2, of space for rent. Victor Bark Jr. designed it, and it went up in 1931 and was first called the Alan E. Lefcourt Building, named for the son of the builder, Abraham E. Lefcourt.
The Brill name came from Maurice Brill. He was a haberdasher who ran a street-level shop and later bought the building. Music companies kept offices and studios inside, and some of the best-known American songs were written there. Many consider it the heart of the American music business that ruled the pop charts during the early 1960s.
Even before World War II the building was a hub for music publishing and songwriting. By 1962 it contained 165 music businesses, and by the mid-1960s a musician could record a demo, locate a publisher and a printer, and arrange promotion without ever leaving. Its name became shorthand for a broad, influential stream of American popular music from the late 1950s and the 1960s, the "Brill Building Sound", although much of that music in fact came from other locations.
About this model
The Brill Building is one of more than 4,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
