3D print the Church of Our Lady before Týn

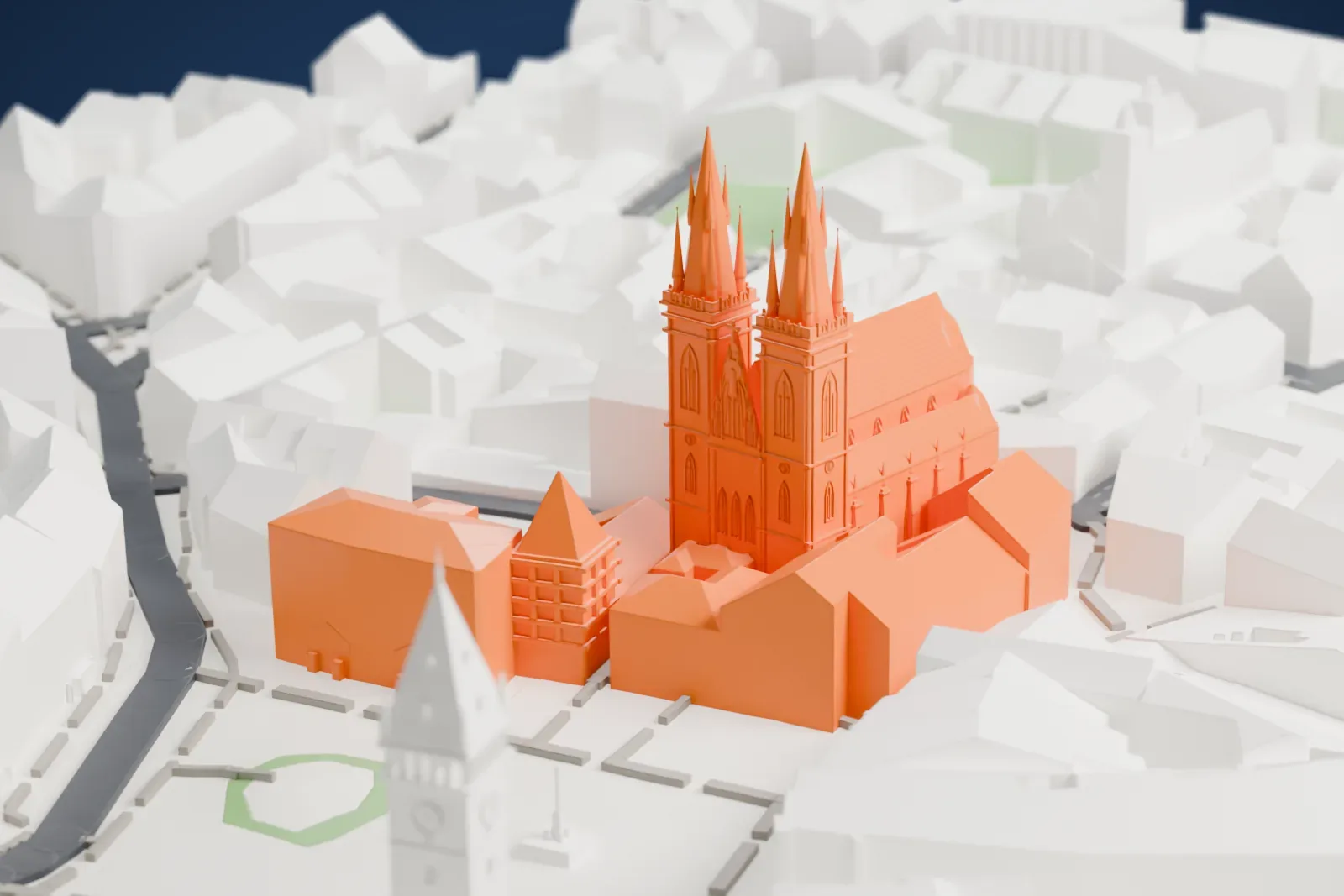

A free, printable model of the Church of Our Lady before Týn, with its two spired towers, and the Old Town buildings and open square around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About the Church of Our Lady before Týn
The Church of Our Lady before Týn, also called the Týn Church, is a Gothic building that stands out in the Old Town of Prague, Czechia. For this district it has been the principal church since the 14th century. Each of its two towers is 80 m high, and each spire carries eight smaller spires, set in two layers of four. Between the towers sits a Gothic gable with a Baroque relief of the Madonna.
In the 11th century a Romanesque church stood on the Old Town plaza, built for foreign merchants visiting the nearby Týn Courtyard. An early Gothic church replaced it in 1256, and the existing church was begun in the 14th century. Its late Gothic design reflects the influence first of Matthias of Arras and then of Peter Parler. The main building was finished in the 1450s. The gable and northern tower followed soon after, while the southern tower was finished in 1511 under the architect Matěj Rejsek.
The church is a vertical, three-aisled Gothic building with a pair of prismatic towers in the west, and four Gothic portals give access. The pair of towers is topped by decorated octagonal helmets and accompanied by a gallery, four turrets at the corners and four more halfway up. Inside, the furnishings are mostly Baroque, including a pipe organ built by Jan J. Mundt between 1670 and 1673, one of the three oldest preserved in Prague. The baptistery of 1414 is the oldest and largest in the city.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 22 mm | 1:3,750 |
| 200 mm | 27 mm | 1:3,000 |
| 256 mm | 35 mm | 1:2,344 |
-

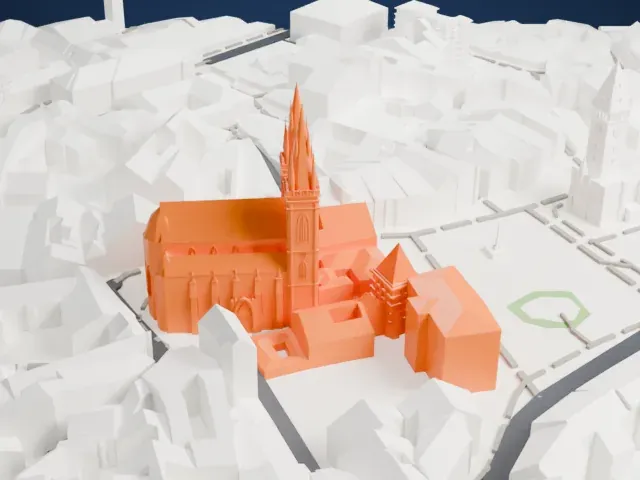

North
-

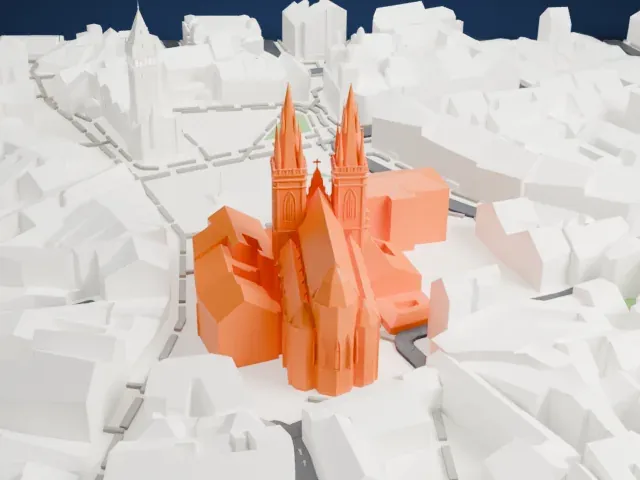

East
-
South
-

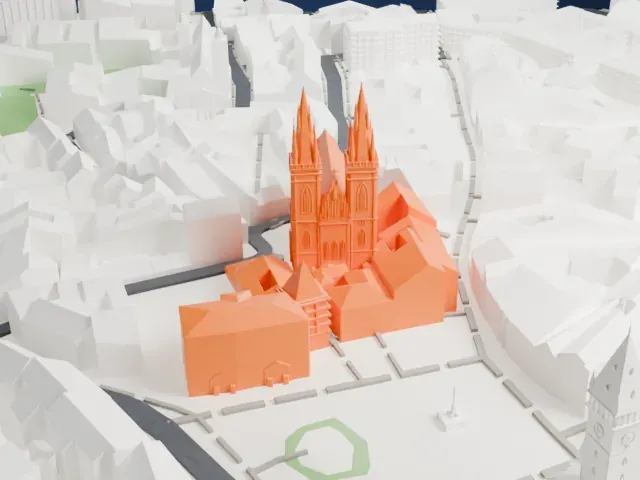

West
- Twin spires with small spirelets
- Each tower ends in a tall spire ringed by smaller ones. Print slowly with good cooling and use 0.12–0.16 mm layers, and Print friendly adapts these thin tips to the print scale.
- Pinnacles and tall windows
- Small pinnacles crowd the gable and buttresses, and tall narrow windows run along the walls. A larger print size keeps them distinct, and Full detail keeps every modeled feature on a fine nozzle.
- One piece with the ground
- The Church of Our Lady before Týn is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. The Church of Our Lady before Týn takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
The Church of Our Lady before Týn is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a Church of Our Lady before Týn STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. The Church of Our Lady before Týn grows with the print: about 22 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
