3D print the Kyiv TV Tower
A free, printable model of the Kyiv TV Tower, an open steel lattice with two cabins and a long antenna, with the surrounding city, generated from real map data in your browser.
-

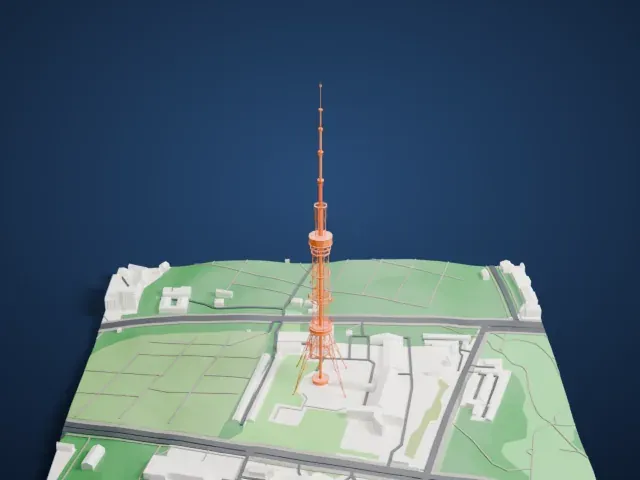

North
-

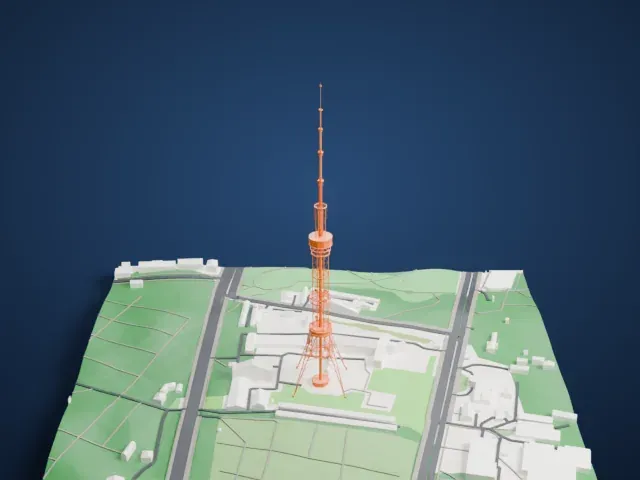

East
-
South
-

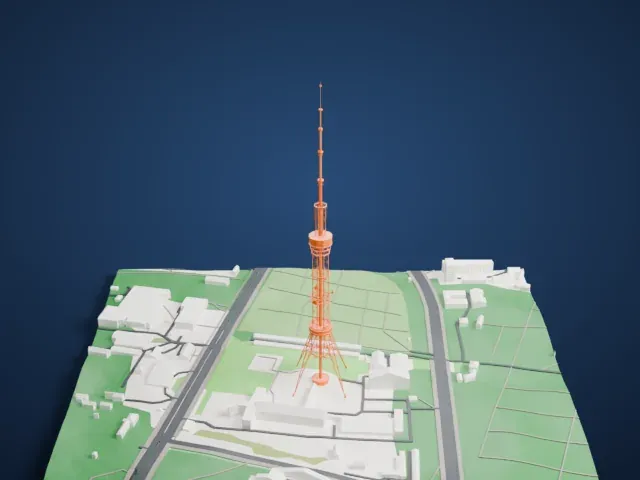

West
The model you print

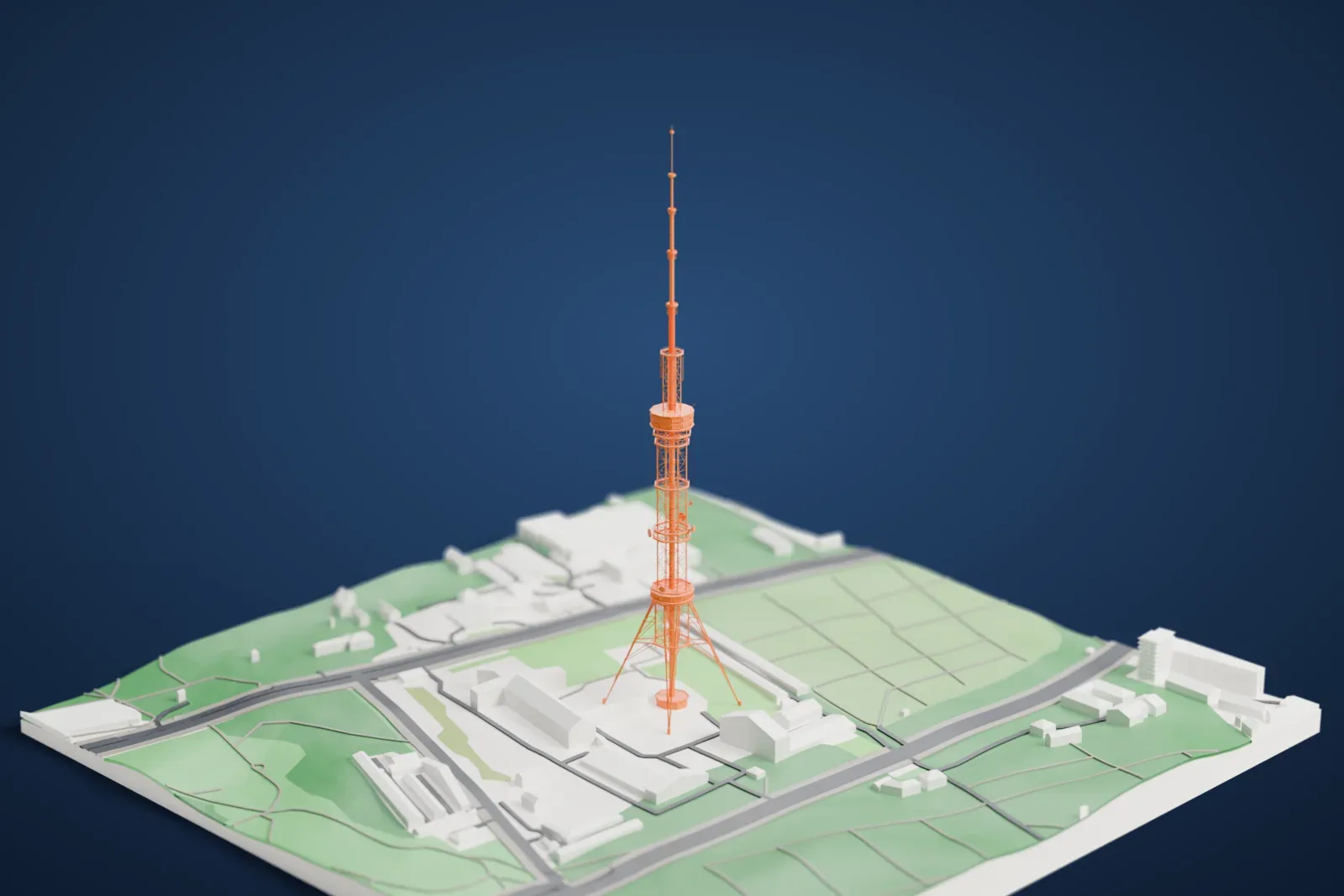

Kyiv TV Tower in 3D
The landmark on its own, at its size on a 160 mm print. Print friendly thickens thin parts for a 0.4 mm nozzle; Full detail keeps every part.
- Real height
- 385 m
- On a 160 mm print
- 104 mm
- Scale
- 1:3,750
385 m of the Kyiv TV Tower, 104 mm on your shelf
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- Open lattice and slender mast
The model is mostly open steel lattice around a thin core, topped by a long stepped antenna with fine collars. Full detail keeps the collars and galleries; Print friendly thins them for small prints.
- Tall, delicate tower
The tall open frame has many thin members and needs steady cooling. Print slowly, and use a 0.12–0.16 mm layer height to keep the lattice and cabin windows crisp.
- One piece with the ground
The Kyiv TV Tower is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. The Kyiv TV Tower takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About the Kyiv TV Tower
Ukraine's tallest structure is the Kyiv TV Tower, a lattice metal tower 385 m high (1,263 ft) on Oranzhereina Street in Kyiv. It dates from 1973, when Kyiv served as the capital of the Ukrainian SSR. Radio and television broadcasts come from it, and visitors cannot go inside. It ranks as the world's second tallest lattice tower and Europe's sixth tallest standing structure.
Moscow, then the Soviet capital, was the tower's first intended home, but its authorities preferred a more solid design, which became the Ostankino Tower. Kyiv later revived the project for its own tower. To keep it below Moscow's height, the Soviet government had the engineers shorten the tower by almost 30 percent. Building took place between 1968 and 1973, at a cost of about $12 million.
Steel pipe in various diameters and thicknesses forms the structure, which weighs 2,700 metric tons. A central core 4 meters (13 ft) across holds the elevator and is built from pipe 12 mm thick. The tower rests on a four-legged base about 100 meters (330 ft) tall, and enclosed equipment levels sit higher up. Rivets and other mechanical fasteners are absent: every joint, pipe and fixture is welded, and it was the world's first fully welded tower.
About this model
The Kyiv TV Tower is one of more than 4,900 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
