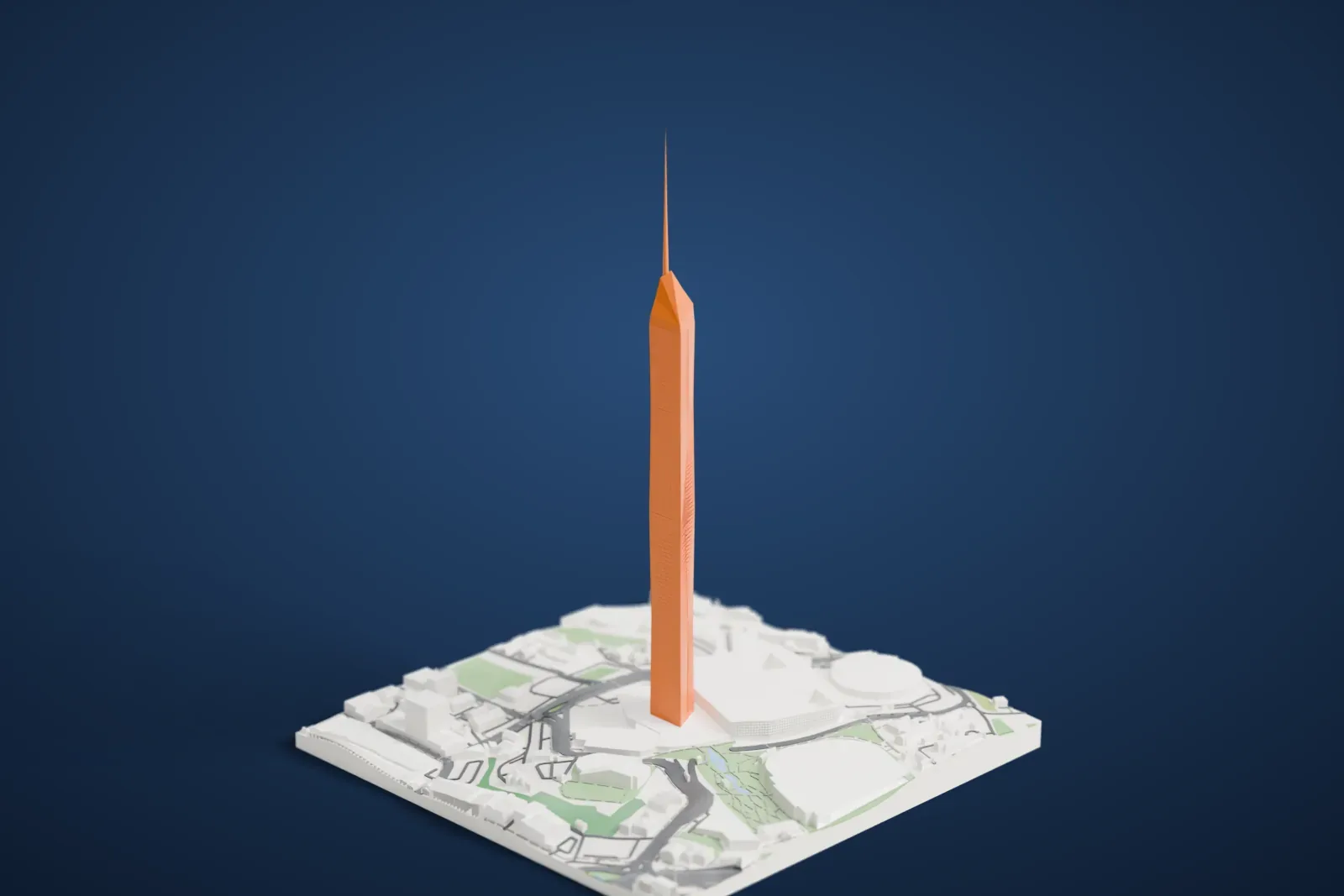

3D print Merdeka 118
A free, printable model of Merdeka 118 and the low blocks, roads and parks of central Kuala Lumpur around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About Merdeka 118
Merdeka 118 rises in the Merdeka Precinct of Kuala Lumpur, Malaysia. It has 118 stories and stands 678.9 m (2,227 ft) tall, which makes it the world's second tallest building. Taller than the 451.9 m (1,483 ft) Petronas Twin Towers, it is Malaysia's tallest building; it also tops Landmark 81, at 462 m (1,516 ft), as the tallest in Southeast Asia. The spire was finished in December 2022. Measured from sea level instead of the ground, it reaches 700.9 m (2,300 ft).
The name Merdeka means "independence" in Malay and is inspired by the tower's proximity to Stadium Merdeka. Its diamond-shaped glass facades are meant to signify the diversity of Malaysians, and the design resembles the outstretched hand gesture of Tunku Abdul Rahman, who proclaimed the independence of Malaya on August 31, 1957. The cladding was planned to use 18,144 panels. The tower has two observation decks, one inside the building and one inside the spire, and its observatory is described as Southeast Asia's highest observation deck.
The project was announced on September 12, 2007. The 7.7-hectare (19-acre) precinct around it was financed by PNB, short for Permodalan Nasional Berhad, a company the Malaysian government owns, and the tower was built in three phases. The building mixes office space, hotels and retail outlets. Its concrete core reached 118 floors in August 2020, the whole tower topped out in November 2021, and its structure was finished in November 2023.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 183 mm | 1:3,750 |
| 200 mm | 229 mm | 1:3,000 |
| 256 mm | 293 mm | 1:2,344 |
-

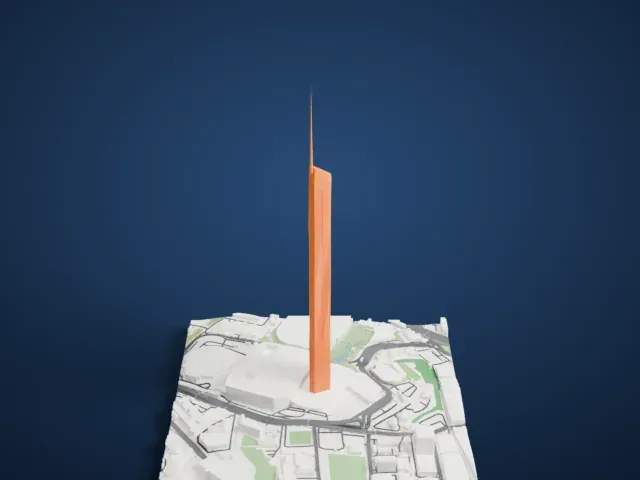

North
-

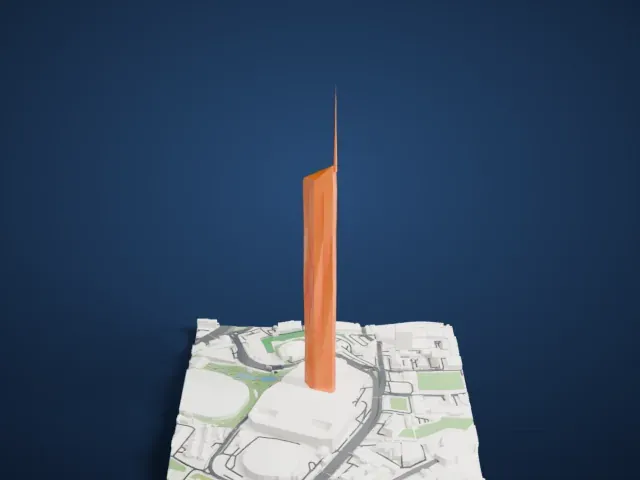

East
-
South
-

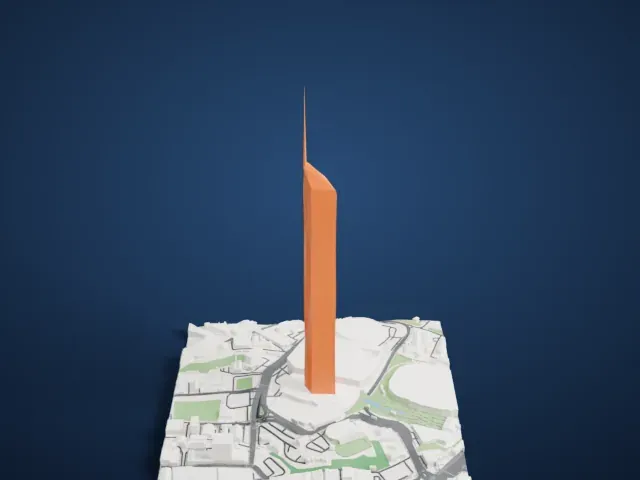

West
- Very tall, very slender
- The shaft is extremely slim for its height, so it is the part to watch. Print slowly with good cooling and 0.12 to 0.16 mm layers, and choose a larger print size for a wider shaft.
- Needle spire on an angled crown
- The top ends in an angled crown and a needle-thin spire. Print friendly adapts the spire to the print scale; Full detail keeps all of it on larger prints or with a fine nozzle.
- One piece with the ground
- Merdeka 118 is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Merdeka 118 takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
Merdeka 118 is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a Merdeka 118 STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. Merdeka 118 grows with the print: about 183 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
