3D print Palais Royale, Mumbai
A free, printable model of Palais Royale, an octagonal tower with stacked balconies, vertical piers and open roof frames, surrounded by city buildings and generated from real map data in your browser.
-

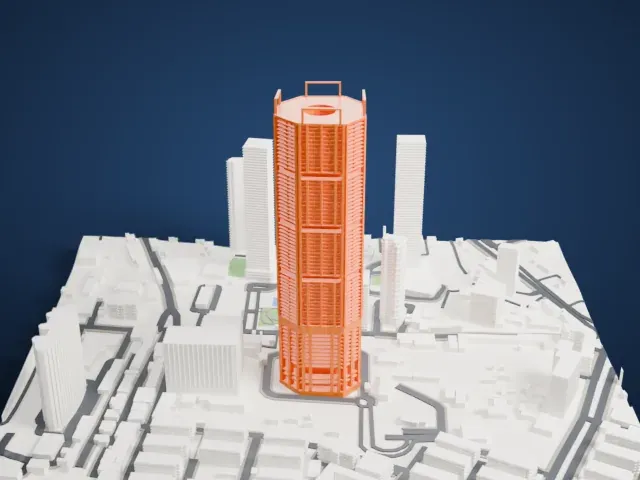

North
-

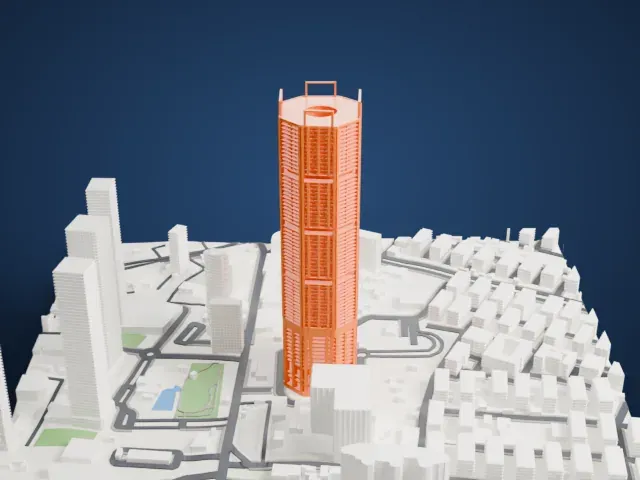

East
-
South
-

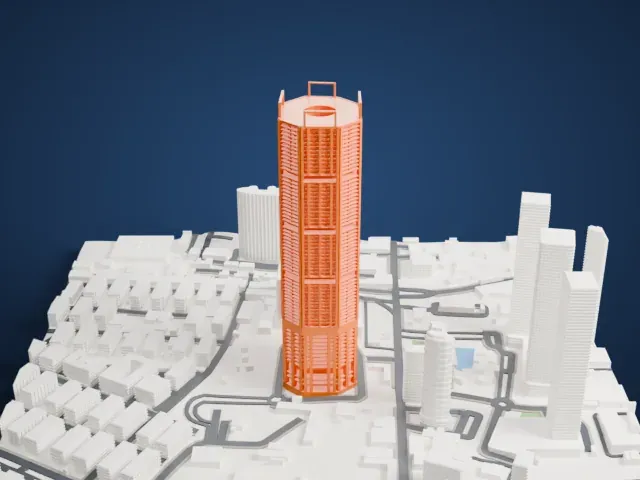

West
The model you print

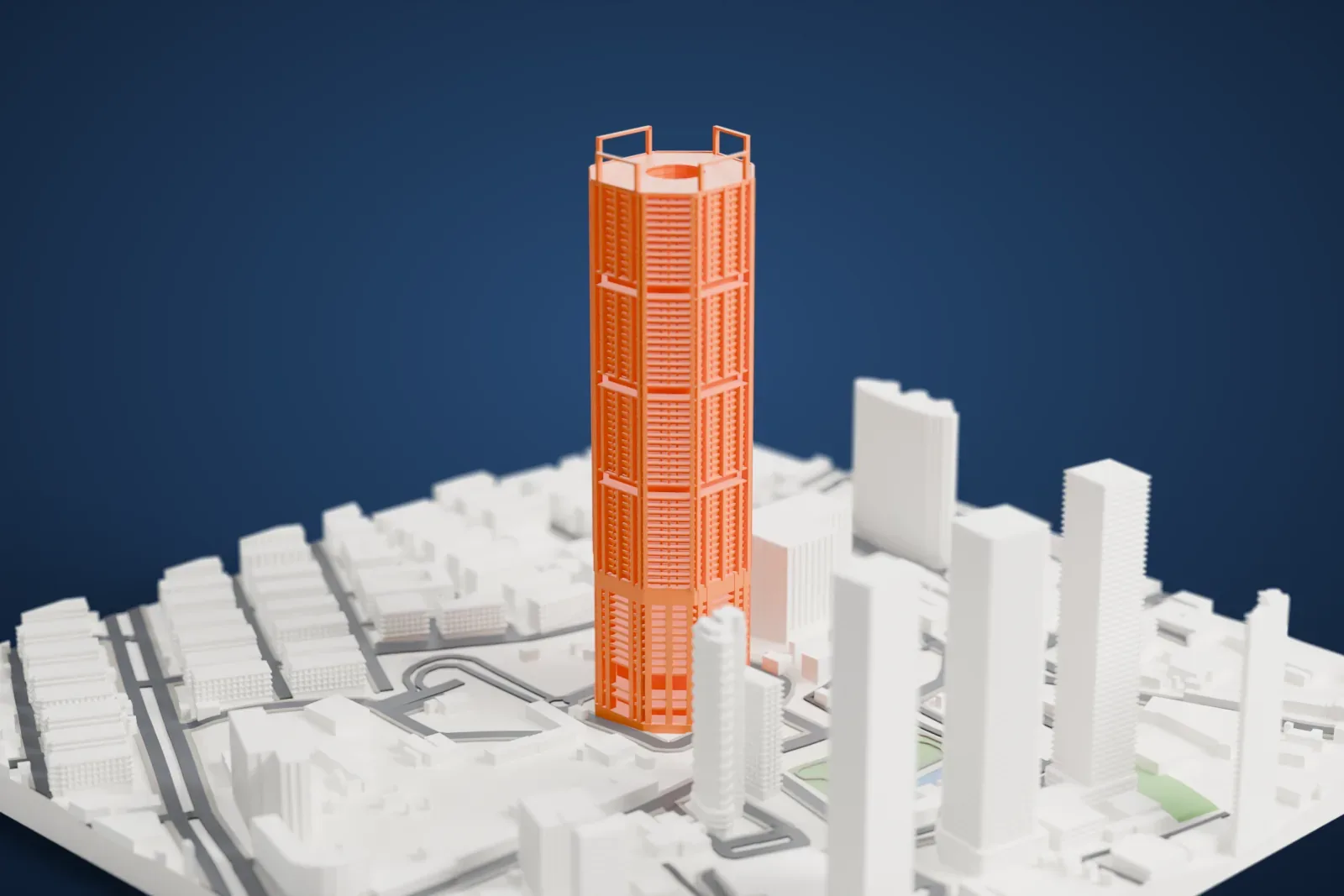

Palais Royale, Mumbai in 3D
The landmark on its own, at its size on a 160 mm print. Print friendly thickens thin parts for a 0.4 mm nozzle; Full detail keeps every part.
- Real height
- 298 m
- On a 160 mm print
- 80 mm
- Scale
- 1:3,750
298 m of Palais Royale, Mumbai, 80 mm on your shelf
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- Octagonal shaft and balconies
The eight-sided shaft carries closely stacked balcony plates, deep horizontal belts and strong vertical piers. Print friendly groups the finest floor lines; Full detail keeps the balcony edges on a larger print.
- Open roof frames
Raised rectangular frames stand around a flat roof and an open central well. A 0.12–0.16 mm layer height and a bigger print keep their thin edges crisp.
- One piece with the ground
Palais Royale, Mumbai is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Palais Royale, Mumbai takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About Palais Royale, Mumbai
Palais Royale is a residential skyscraper in Mumbai, India, built on land that Shree Ram Mills Ltd had owned. At 297.50 meters (976 ft), it has 84 floors and is among India's tallest residential buildings. The firm Talati Panthaky Associates designed it, and the building topped out in 2018.
The tower's eight-sided layout comes from concentric circles, a form that improves wind resistance and follows Vastu principles. It wraps a central atrium about 215 meters high, known as the world's tallest. The structure is all concrete, with M-80 self-compacting concrete, a 9-meter-deep transfer girder and a 3.5-meter raft foundation.
Construction permits were granted in 2005 and building work began in 2008. Public interest suits from Janhit Manch and UHRF of Delhi stalled the project; the Supreme Court of India disposed of them in October 2019, finding the suits inconsistent and without bona fides. Palais Royale was the first residential skyscraper in India to earn LEED Platinum. Its facade uses DuPont Corian and double-glazed windows.
About this model
Palais Royale, Mumbai is one of more than 4,900 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
