3D print Paramount Plaza
A free, printable model of the tall slab tower, with the dense Midtown towers around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About Paramount Plaza
Once called the Uris Building and also known by its address, 1633 Broadway, Paramount Plaza is a 48-story skyscraper in New York City's Midtown Manhattan. The architects were Emery Roth and Sons, and the Uris brothers developed it. By 1980 the Paramount Group, a former owner, had lent its name to the building. Broadway runs along the east side of the site, with 51st Street on the north and 50th Street on the south. The roof is 669 ft (204 m) up.
The building has a slab-like form and climbs in a straight line from the street to its roof. Two Broadway theaters share the building: the Gershwin Theatre, with 1,900 seats, on the second floor, and, in the basement, the Circle in the Square Theatre, with 650 seats. A sunken plaza gives access to the 50th Street subway station, while a pedestrian corridor and a driveway pass beneath the western side.
In 1967 the Uris Buildings Corporation took a lease on the Capitol Theatre's site and put forward a plan for a skyscraper. In return for building the two theaters, the developer gained additional floor area, which meant four more stories than would usually have been allowed. Unlike many high-rises, the building kept a 13th floor and did not renumber it for superstitious reasons.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 55 mm | 1:3,750 |
| 200 mm | 69 mm | 1:3,000 |
| 256 mm | 88 mm | 1:2,344 |
-

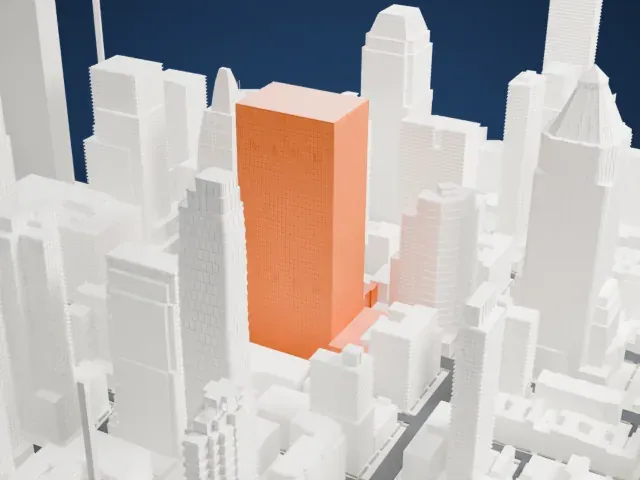

North
-

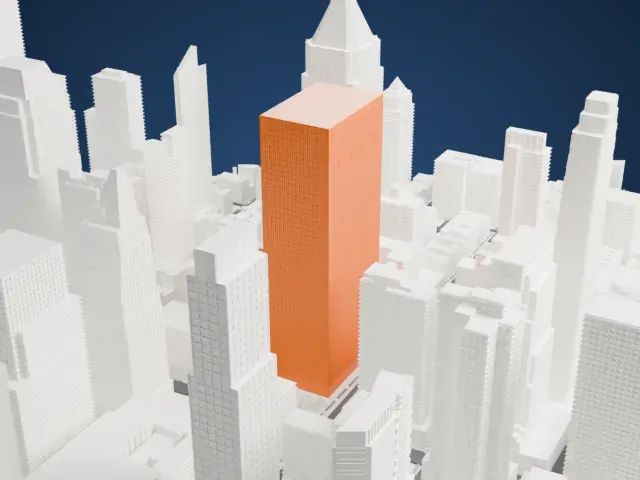

East
-

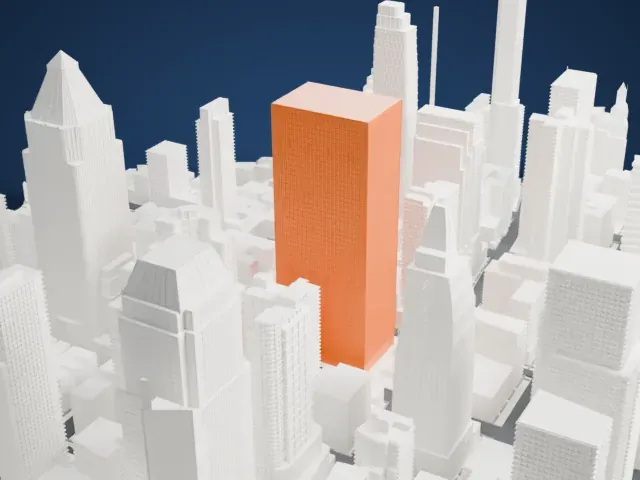

South
-

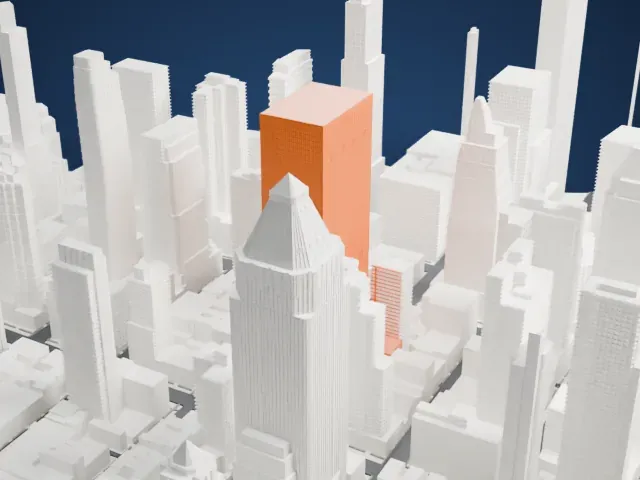

West

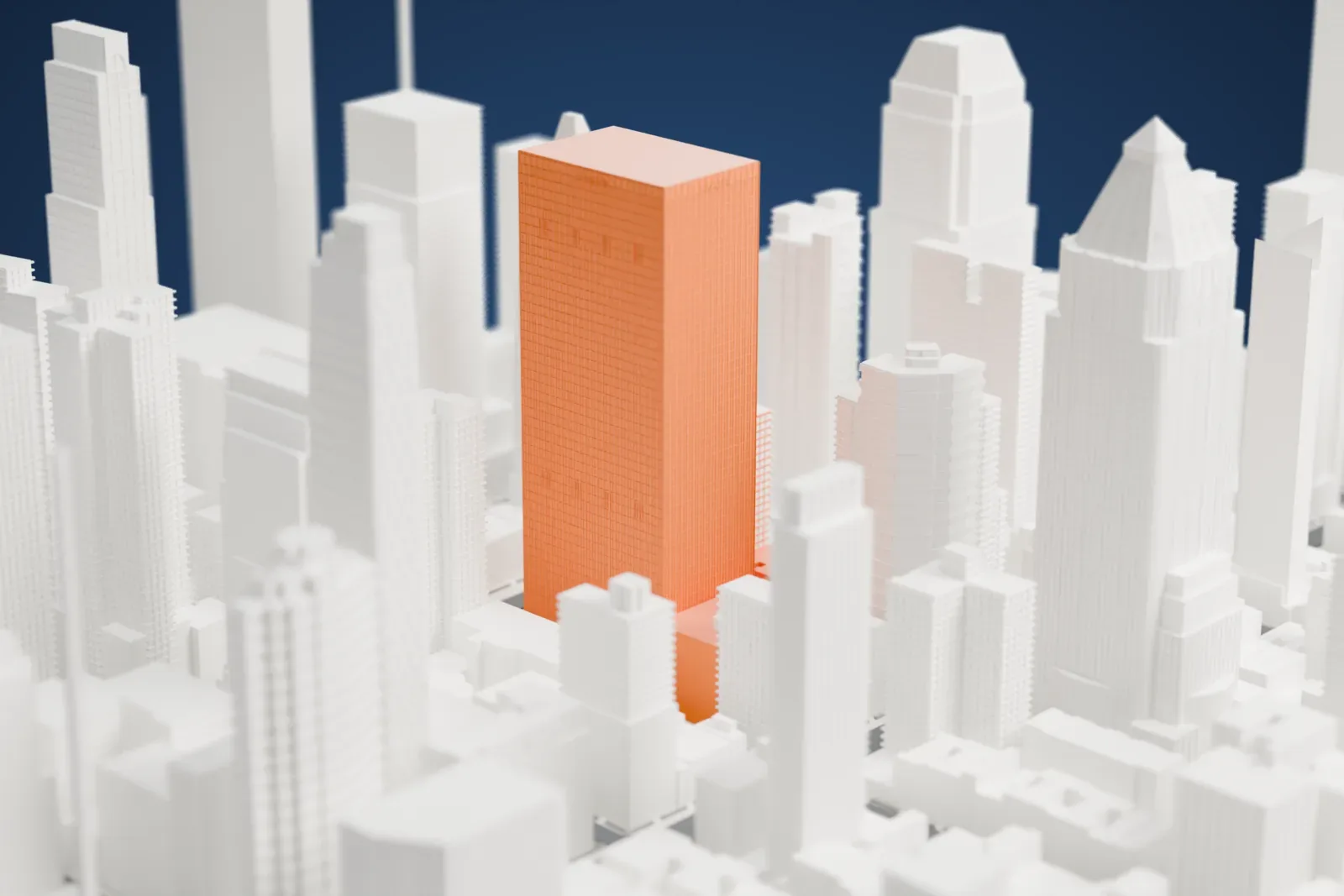

- A tall slab with fine lines
- The tower is a plain tall block with fine vertical lines on its walls. Printing slowly with good cooling suits a tall shape, and layers of 0.12 to 0.16 mm keep those lines crisp.
- Bigger print, more detail
- Dense buildings crowd the tower on every side. A larger print size keeps more of the small facade detail, and Full detail suits larger prints or a fine nozzle.
- One piece with the ground
- Paramount Plaza is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Paramount Plaza takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
Paramount Plaza is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a Paramount Plaza STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. Paramount Plaza grows with the print: about 55 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
