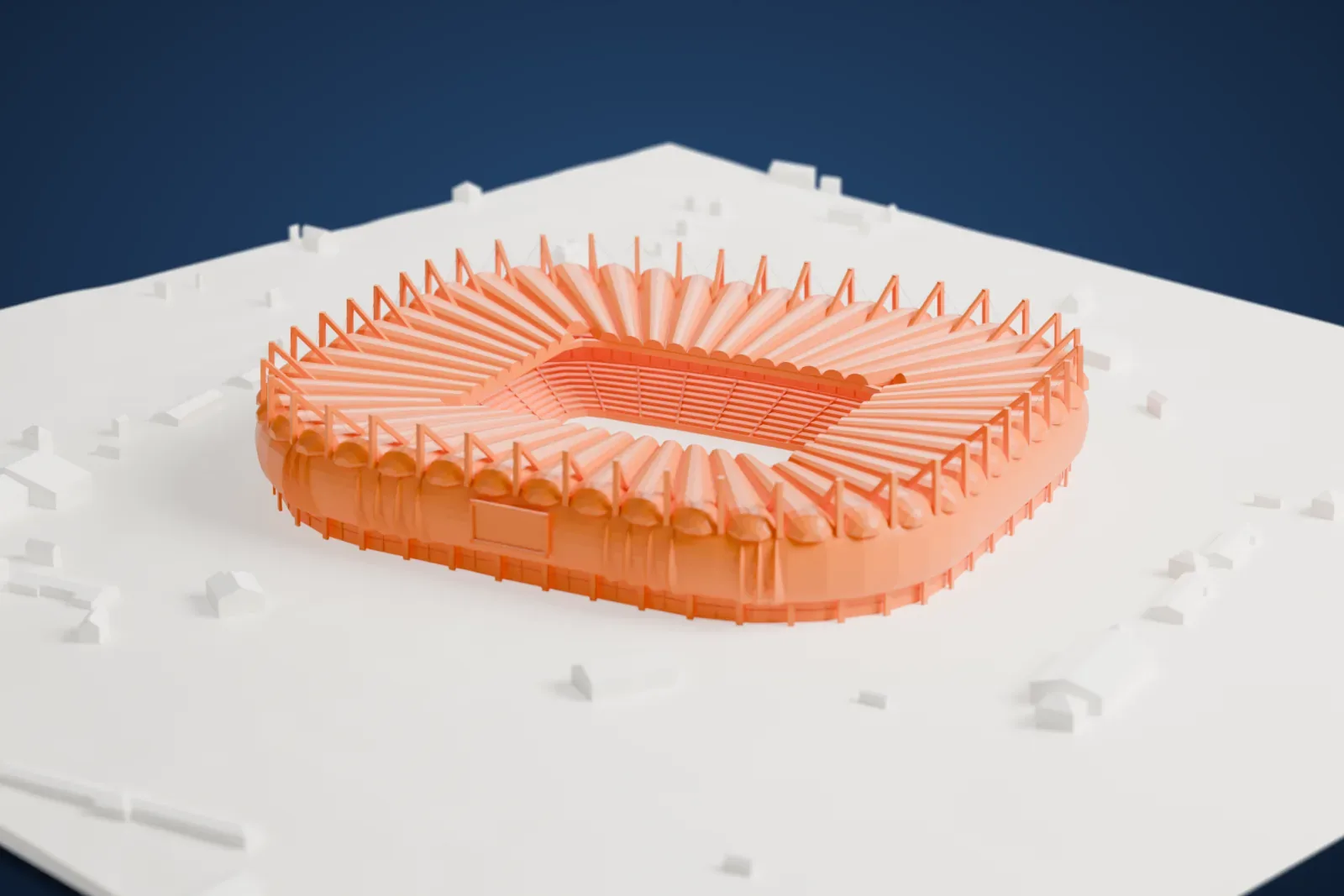

3D print Rostov Arena
A free, printable model of Rostov Arena, a bulging skin, a pillowed roof and masts round the rim, amid the surrounding streets and buildings, generated from real map data in your browser.
-

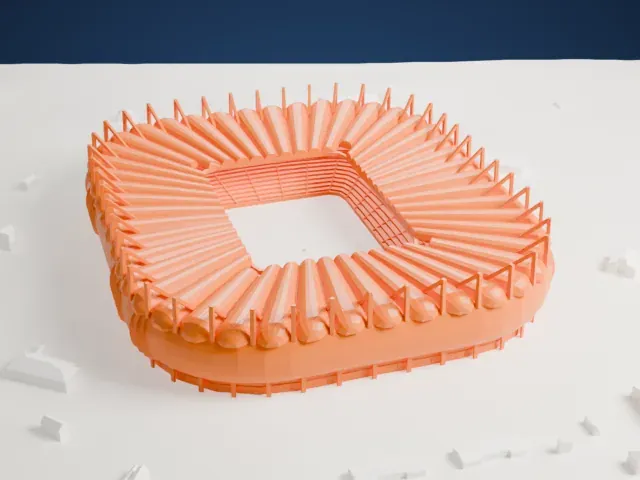

North
-

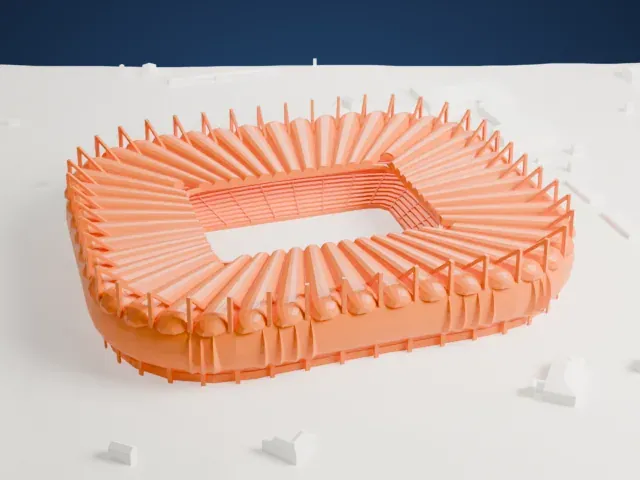

East
-

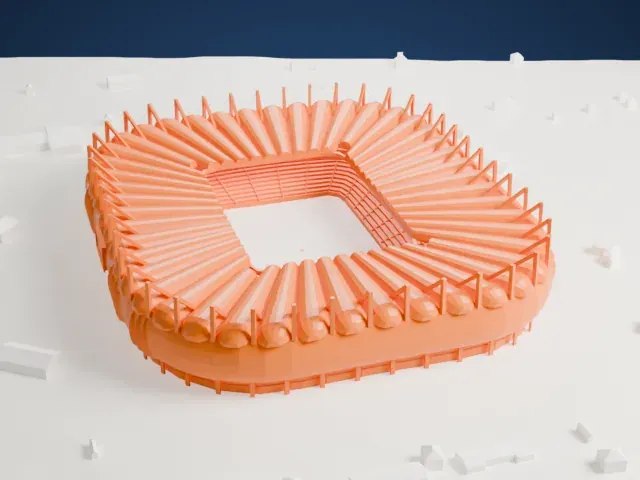

South
-

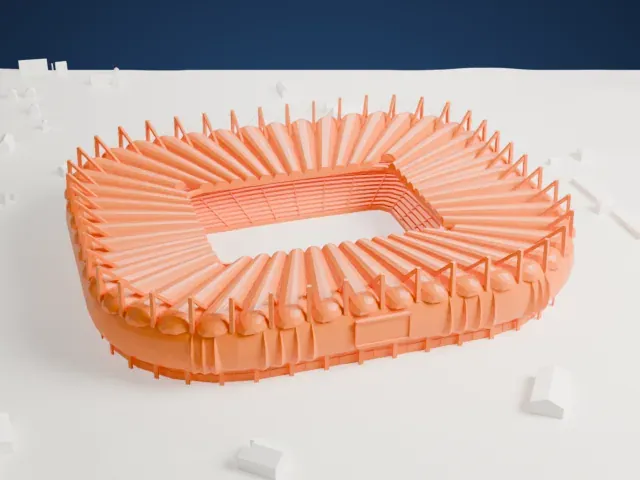

West
- On a 160 mm print
- 13 mm
- Scale
- 1:4,063
13 mm tall on a 160 mm print
Make this print opens the generator on a 650 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- Masts and stays round the rim
The masts stand round the rim, each with a back leg raking in over the roof and thin stays running to the pillows either side. Print slowly with cooling, and keep Full detail for the stays.
- Scalloped edge of the roof
The roof is a ring of pillowed bays whose outer ends bulge over the skin in a scalloped line. Layers of 0.12 to 0.16 mm keep the scallops and the grooves between the bays readable.
- One piece with the ground
Rostov Arena is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. Rostov Arena takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About Rostov Arena
The ground lies in Rostov-on-Don, Russia, and was built for the 2018 FIFA World Cup. FC Rostov, which plays in the Russian top division, has its home there after leaving the Olimp – 2 ground, and the capacity stands at 45,000. Populous presented the final design in 2011, and the irregular roof and stands are what distinguish it.
Groundbreaking in June 2013 uncovered five Second World War shells, almost perfectly preserved. The foundation was done by May 2014, concrete work on the main bowl by November 2016, and the whole building by December 22, 2017. FC Rostov met FC SKA-Khabarovsk in the first game on April 15, 2018, and a friendly against FK Ural marked the official opening on May 13, 2018.
Some of the seating was built as temporary for the World Cup, and without it the capacity would be 42,000. Five tournament matches were played there in 2018, and it was the first big project to go up south of the Don, with the rest of the city sitting to the north.
About this model
Rostov Arena is one of more than 4,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
