3D print 15 Broad Street
A free, printable model of 15 Broad Street, a stepped, setback tower, and the crowded Financial District skyscrapers that surround it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About 15 Broad Street
Facing Broad Street's east side, between Wall Street and Exchange Place in Lower Manhattan's Financial District, stands 15 Broad Street, formerly the Equitable Trust Building. It has entrances at 35 Wall Street and 51 Exchange Place. The Equitable Trust Company had the neoclassical building put up, and it was completed in 1928. By 1931 it ranked among the twenty largest office buildings in the world.
Trowbridge & Livingston were the architects, and the same firm drew plans for 23 Wall Street, 14 Wall Street and the New York Stock Exchange Building annex next door. Thompson–Starrett Co. built it. The building has 43 floors and stands 540 feet high, with a gray brick and stone facade above a limestone base that echoes its neighbor at 23 Wall Street. Its plan is L-shaped, wrapping around that neighbor.
The tower replaced the 10-story Mills Building, which was finished in 1882, and one other building. The skyscraper has a truss spanning above 23 Wall Street, and J.P. Morgan & Co., which occupied that building, sold the air rights above it to the Equitable Trust Company to allow this. Heavy timbers on 23 Wall Street's roof protected the older structure during construction.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 46 mm | 1:3,750 |
| 200 mm | 57 mm | 1:3,000 |
| 256 mm | 73 mm | 1:2,344 |
-

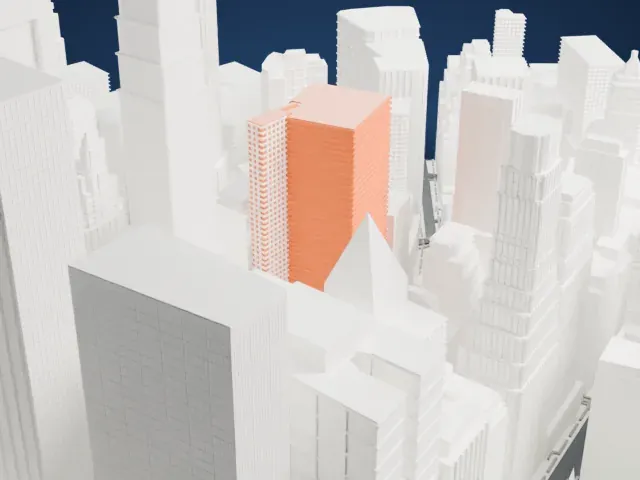

North
-

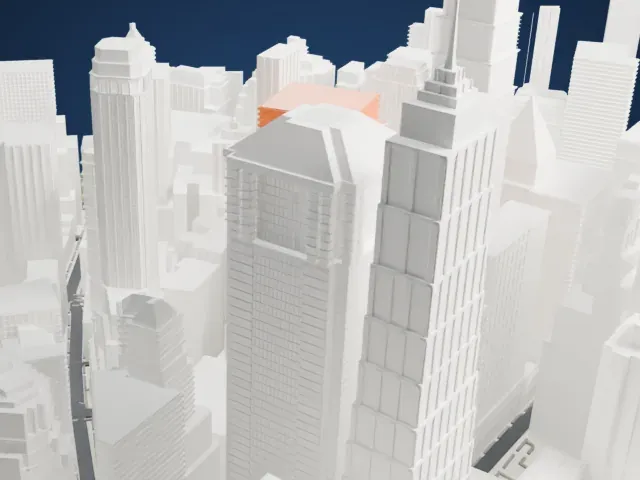

East
-
South
-

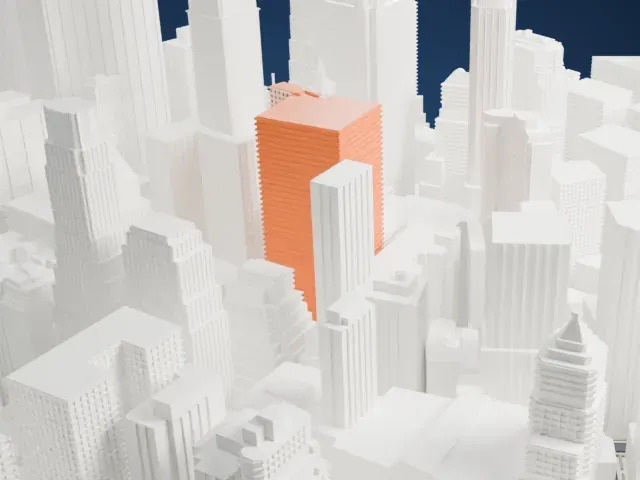

West

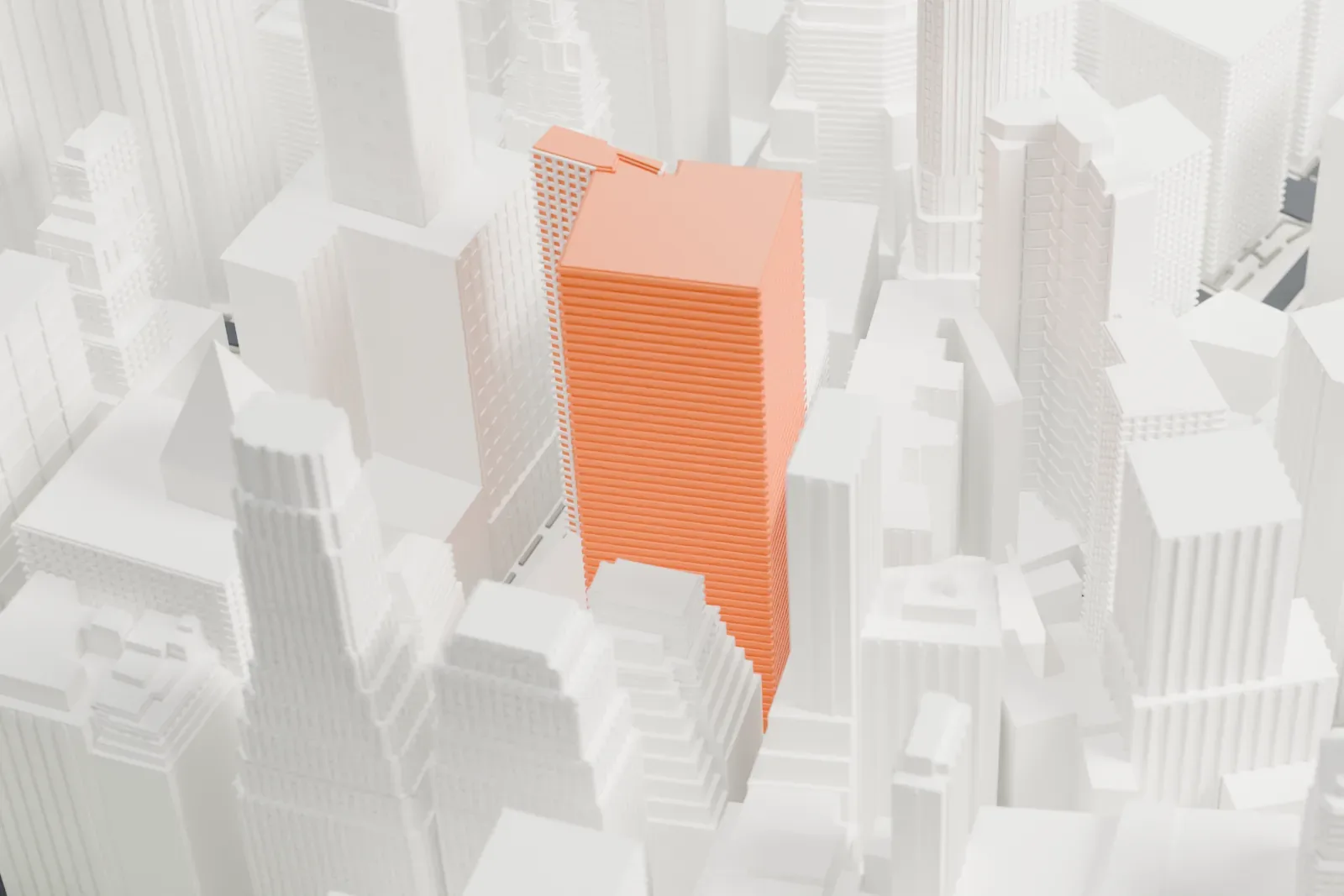

- Stepped crown
- The top of the tower narrows in several small steps. Print friendly adapts these ledges to the print scale; Full detail keeps them on larger prints.
- Tight among skyscrapers
- Neighboring towers rise close on every side, so only the upper floors stand clear. A larger print size and a layer height of 0.12–0.16 mm keep its crown crisp.
- One piece with the ground
- 15 Broad Street is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. 15 Broad Street takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
15 Broad Street is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a 15 Broad Street STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. 15 Broad Street grows with the print: about 46 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
