3D print 70 Pine Street

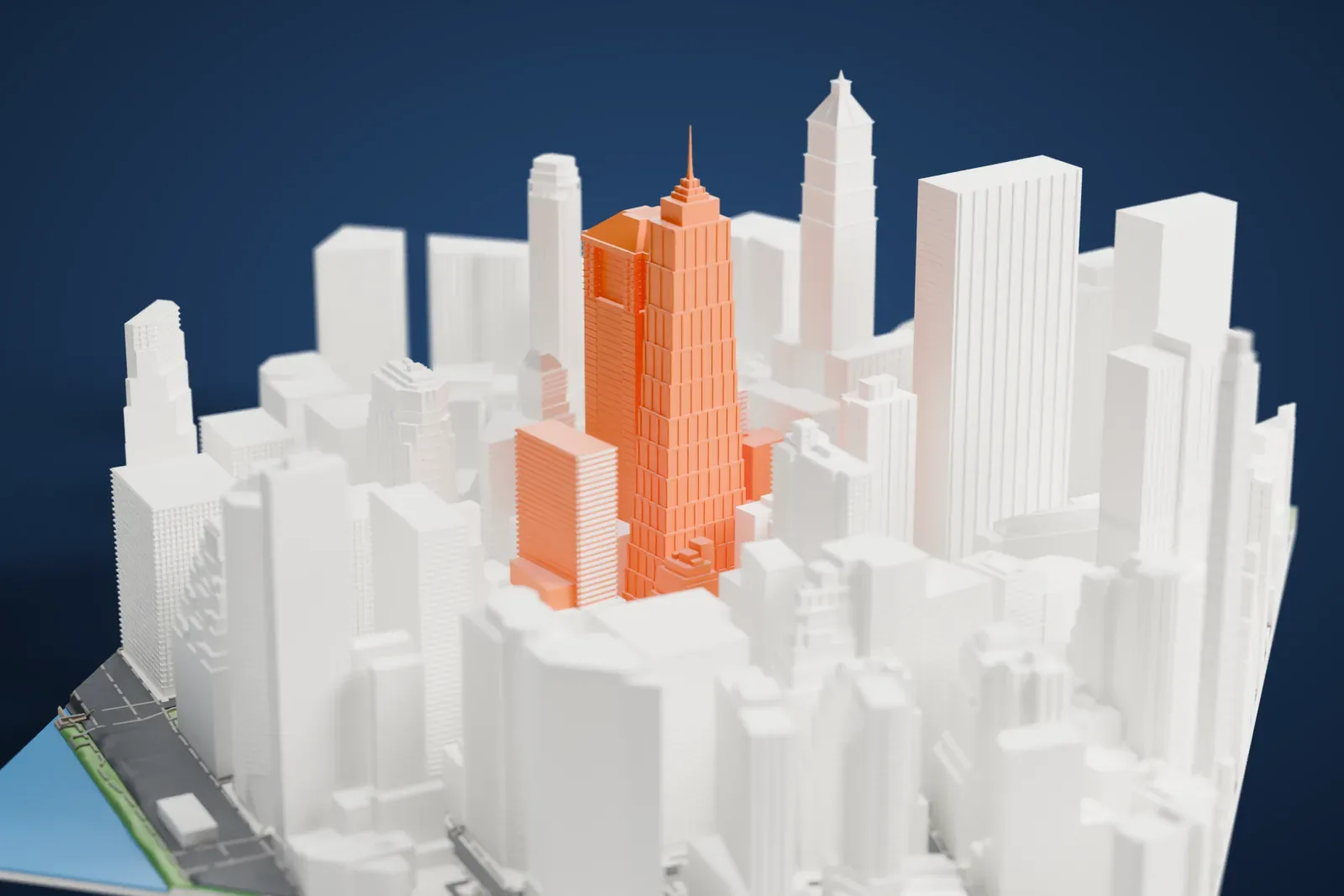

A free, printable model of 70 Pine Street, its stepped tower and slim spire, surrounded by many other tall buildings, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About 70 Pine Street
70 Pine Street stands in Lower Manhattan's Financial District, rising 290 m (952 ft) over 67 stories. Earlier names include the 60 Wall Tower, the Cities Service Building and the American International Building. Clinton & Russell, Holton & George, an architectural firm, designed it in the Art Deco style, and it was built as an office building from 1930 to 1932. Its first tenant, Cities Service Company, an energy conglomerate that later became Citgo, gave it its first name. The building, plus the interior of its first floor, gained New York City landmark status in June 2011.
On completion, only Midtown's Chrysler Building and Empire State Building stood taller anywhere in the world, and that held until the World Trade Center's North Tower passed it in 1969. It topped 40 Wall Street by 7.6 m (25 ft) to become Lower Manhattan's tallest. Numerous setbacks shape the tower; required by the 1916 Zoning Resolution, they later became a hallmark of Art Deco. Above the 67th-floor observation deck, a spire rises 38 m (124 ft): a glass lantern of 8.2 m (27 ft) capped by a stainless steel pinnacle of 30 m (97 ft).
Indiana limestone covers the lower stories, resting on a Minnesota granite water table, and Morton Gneiss, in red and black, surrounds the ground floor. Four shades of buff brick, darkening toward the top, clad the upper stories. The facade was among the earliest to rely extensively on aluminum, including door reliefs of butterflies and sunflowers. Solar motifs and the triangular Cities Service logo decorate it. A three-story penthouse meant for Henry Latham Doherty, the founder of Cities Service, became a public observatory instead.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 79 mm | 1:3,750 |
| 200 mm | 98 mm | 1:3,000 |
| 256 mm | 126 mm | 1:2,344 |
-

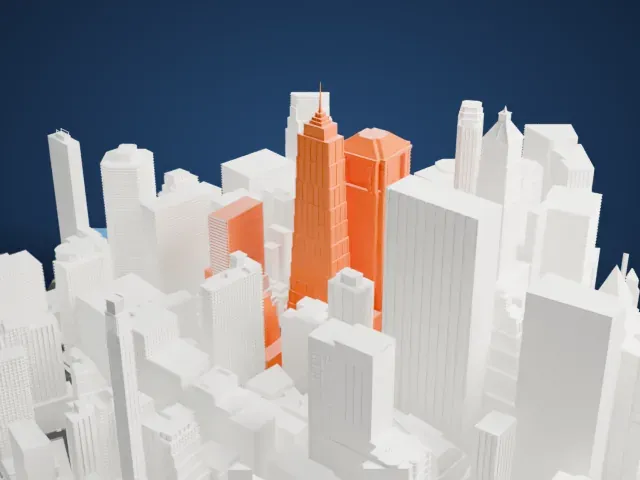

North
-

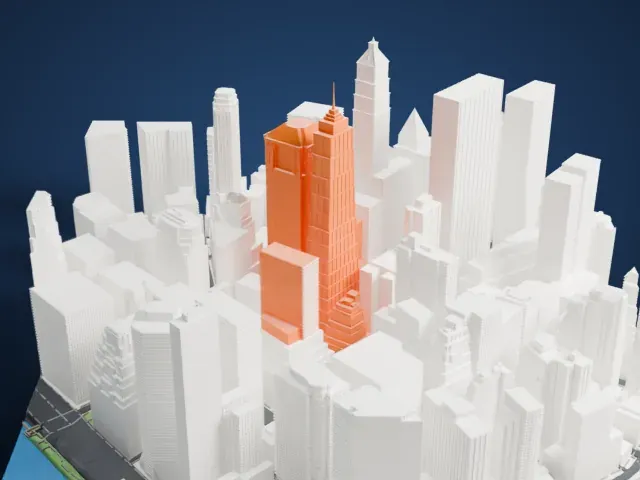

East
-
South
-

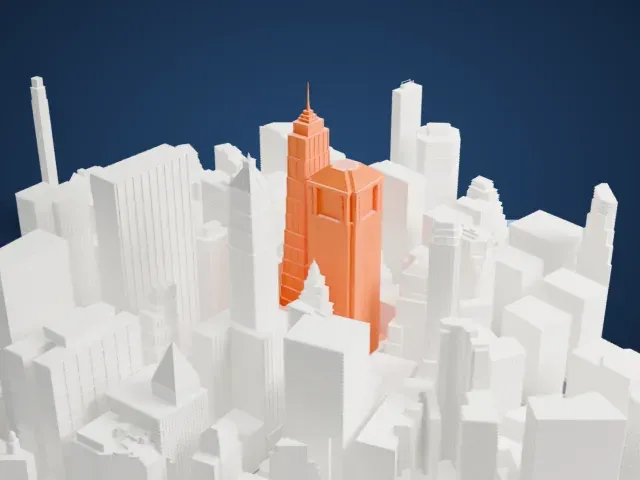

West
- Slim spire at the top
- The slim spire is the thinnest part of the tower. Print friendly adapts it to the print scale; Full detail keeps it, which suits a larger print. Printing slowly with good cooling helps tall, thin tips form cleanly.
- Stepped setbacks and ribs
- The tower narrows in many setbacks with fine vertical ribs. A bigger print size keeps the ribs distinct, and layers of 0.12 to 0.16 mm keep the steps crisp.
- One piece with the ground
- 70 Pine Street is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. 70 Pine Street takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
70 Pine Street is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a 70 Pine Street STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. 70 Pine Street grows with the print: about 79 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
