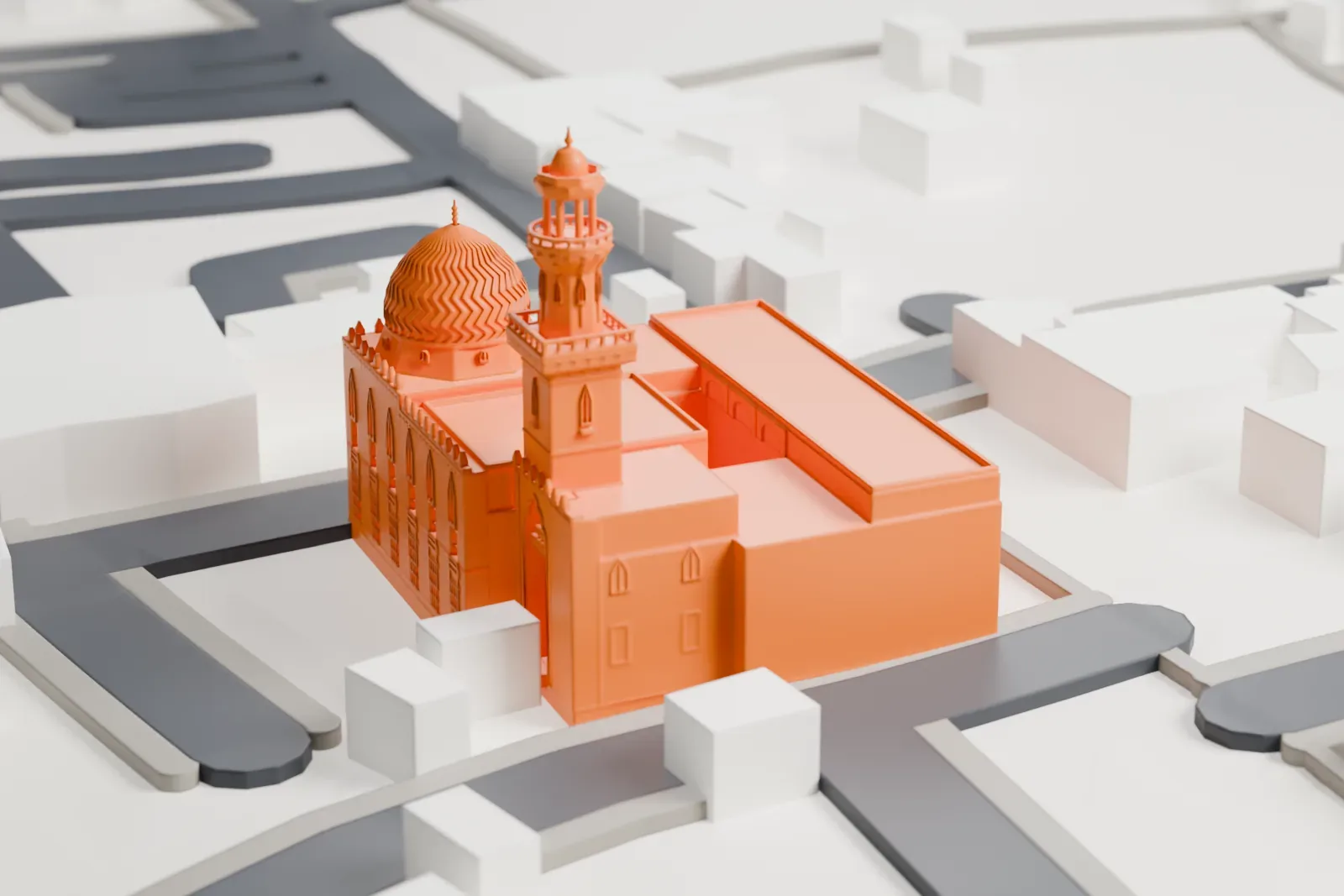

3D print the Al-Ashraf Mosque
A free, printable model of the Al-Ashraf Mosque and the streets and buildings around it in Islamic Cairo, generated from real map data in your browser.
-

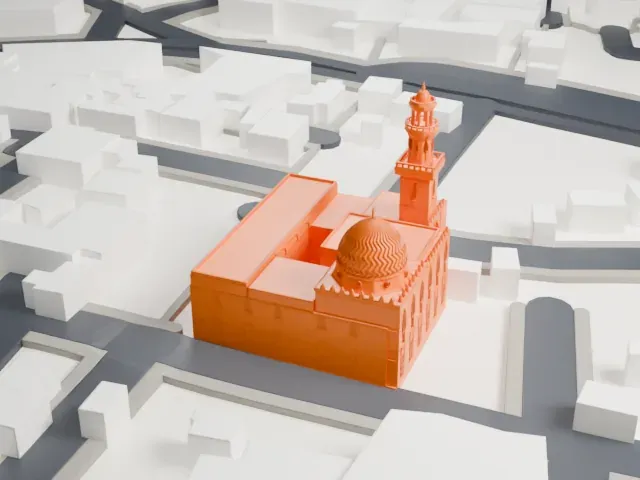

North
-

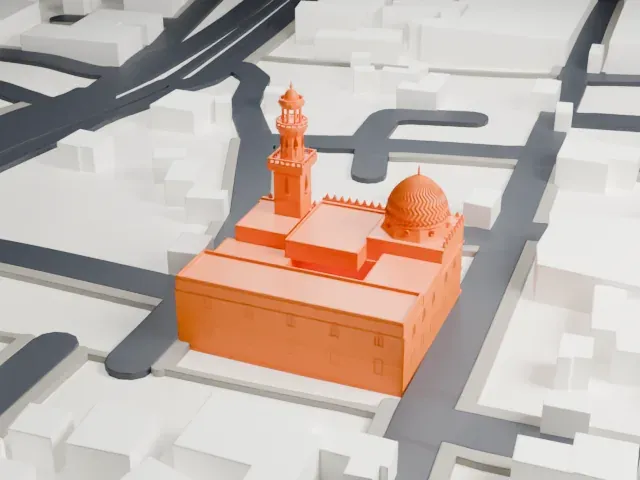

East
-

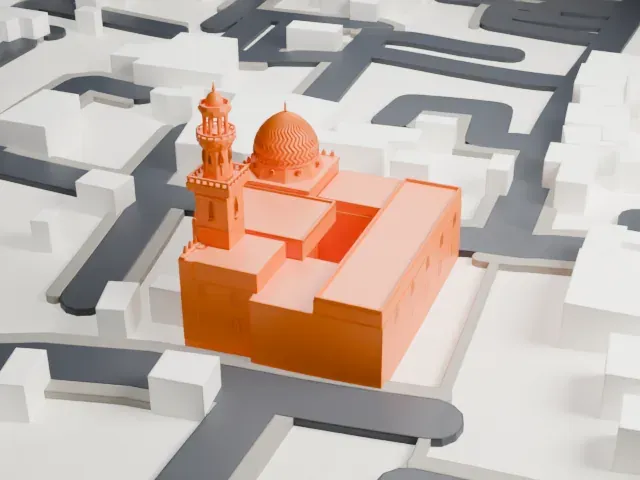

South
-

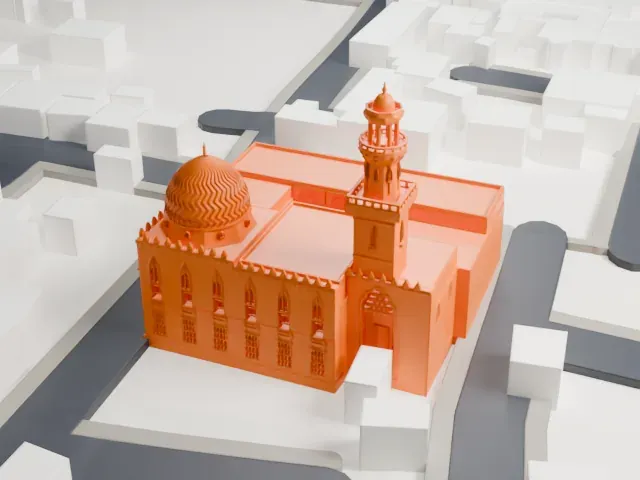

West
- On a 160 mm print
- 10 mm
- Scale
- 1:3,750
10 mm tall on a 160 mm print
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
- A dense Mamluk complex
A complex of this kind packs several parts closely together. Print at a larger size so they stay distinct, with 0.12–0.16 mm layers.
- One piece with the ground
The Al-Ashraf Mosque is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
Buildings, roads, water and ground arrive as separate filament slots in the 3MF. The Al-Ashraf Mosque takes the building color.
- File format
You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About the Al-Ashraf Mosque
The Al-Ashraf Mosque is also known as Sultan al-Ashraf Barsbay's mosque-madrasa. It is a Mamluk funerary complex in Islamic Cairo, Egypt, on Muizz Street, and it brings together a mosque, a madrasa, a mausoleum and a khanqah. Al-Ashraf Al-Barsbay, a Burji sultan, built it during the Mamluk period, and work began in 826 AH, or 1422/1423 CE.
It sits within Sultan Al-Ashraf Barsbay's larger complex, which brought together two sabils, Sufi lodgings, a mausoleum and a mosque-madrasa. The mosque measures 20 by 15 meters (66 by 49 ft). Its design includes marble and stained-glass windows, and the dome in its sahn was an early example of a geometrically carved dome surface.
Inside, the mosque has marble mosaic paving, a center aisle with raised iwans, arcades whose capitals are classical, and windows in two rows. The mihrab and minbar stand on the southeast wall, and Barsbay's marble cenotaph sits in front of the mihrab. An inscription around the vaulted iwans records how money for upkeep was to be spent.
About this model
The Al-Ashraf Mosque is one of more than 4,400 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
