3D print the Shrine of the Most Holy Redeemer
A free, printable model of Las Vegas's Shrine of the Most Holy Redeemer, a church with a sloping roof and a cross, and the roads around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About the Shrine of the Most Holy Redeemer
Las Vegas's Shrine of the Most Holy Redeemer stands at the southern end of the Strip as a Catholic church and shrine. At its dedication in 1993 it was Nevada's largest church building. Hotels surround it, and Tropicana Las Vegas and Luxor Las Vegas stand next door. Three bronze statues of Jesus flank the entrance. Inside is a small chapel to Our Lady of Guadalupe, with murals of Catholic figures that former bishop Daniel F. Walsh commissioned.
The church exists because Guardian Angel Cathedral, the archdiocese's seat on the north side of the Strip, could not keep up with the growth of resorts at the south end in the early 1990s, even after its expansion. Bishop Daniel F. Walsh picked an empty parcel off Reno Avenue. The diocese's construction fund already held $1.5 million, and it raised another $2 million. The 2.8 ha (7 acres) site cost $2.7 million; the 2,400 m2 (26,000 sq ft) shrine itself cost $3.5 million.
Construction started in 1992, led by Marnell Corrao Associates. Kirk Kerkorian and other casino executives gave money, as did small donors. Dedication came on February 2, 1993, the feast day of the Presentation of Jesus. Seating began at 2,200 and dropped to 2,000 in 2014, when renovations replaced the pews. Donations to the building fund covered the work, which also produced a new roof and flooring and upgraded the cooling and sound systems.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 5 mm | 1:3,750 |
| 200 mm | 6 mm | 1:3,000 |
| 256 mm | 8 mm | 1:2,344 |
-

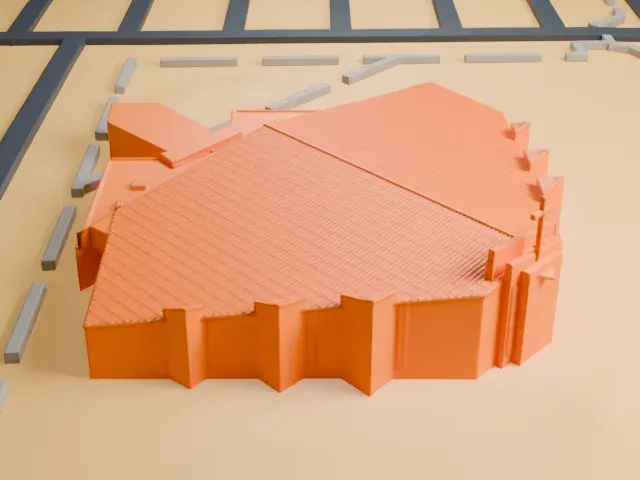

North
-

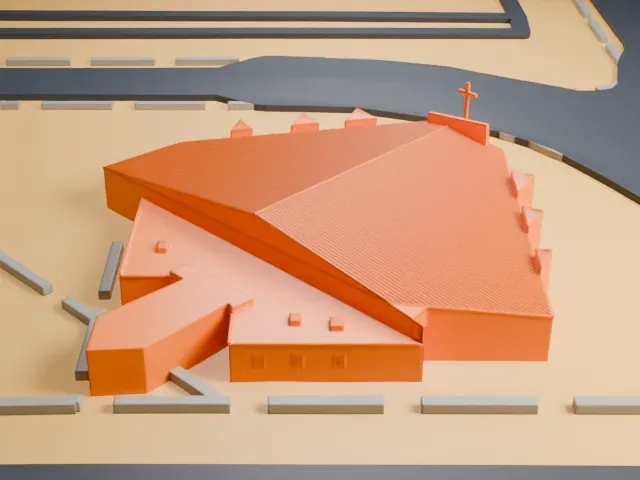

East
-
South
-

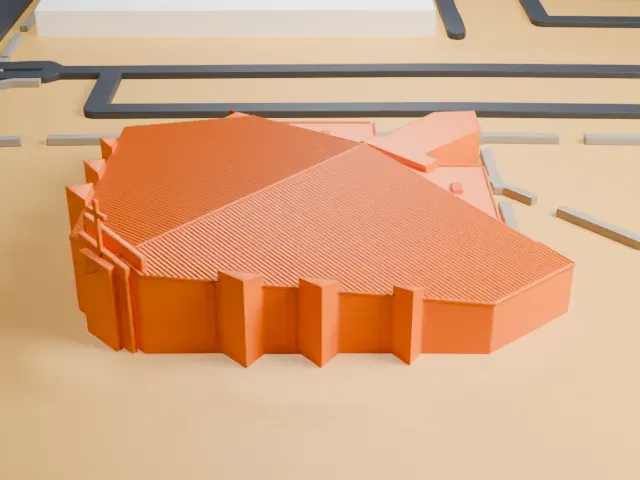

West
- Slim cross and small cupolas
- A slim cross stands at the front and three small cupolas sit along the roof ridge. Print slowly with good cooling, and use Print friendly to adapt these small parts to the print scale.
- Large textured roof
- The big sloping roof carries a fine ridged texture. Layers of 0.12–0.16 mm and a larger print size keep that texture clear.
- One piece with the ground
- The Shrine of the Most Holy Redeemer is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. The Shrine of the Most Holy Redeemer takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
The Shrine of the Most Holy Redeemer is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a Shrine of the Most Holy Redeemer STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. The Shrine of the Most Holy Redeemer grows with the print: about 5 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
