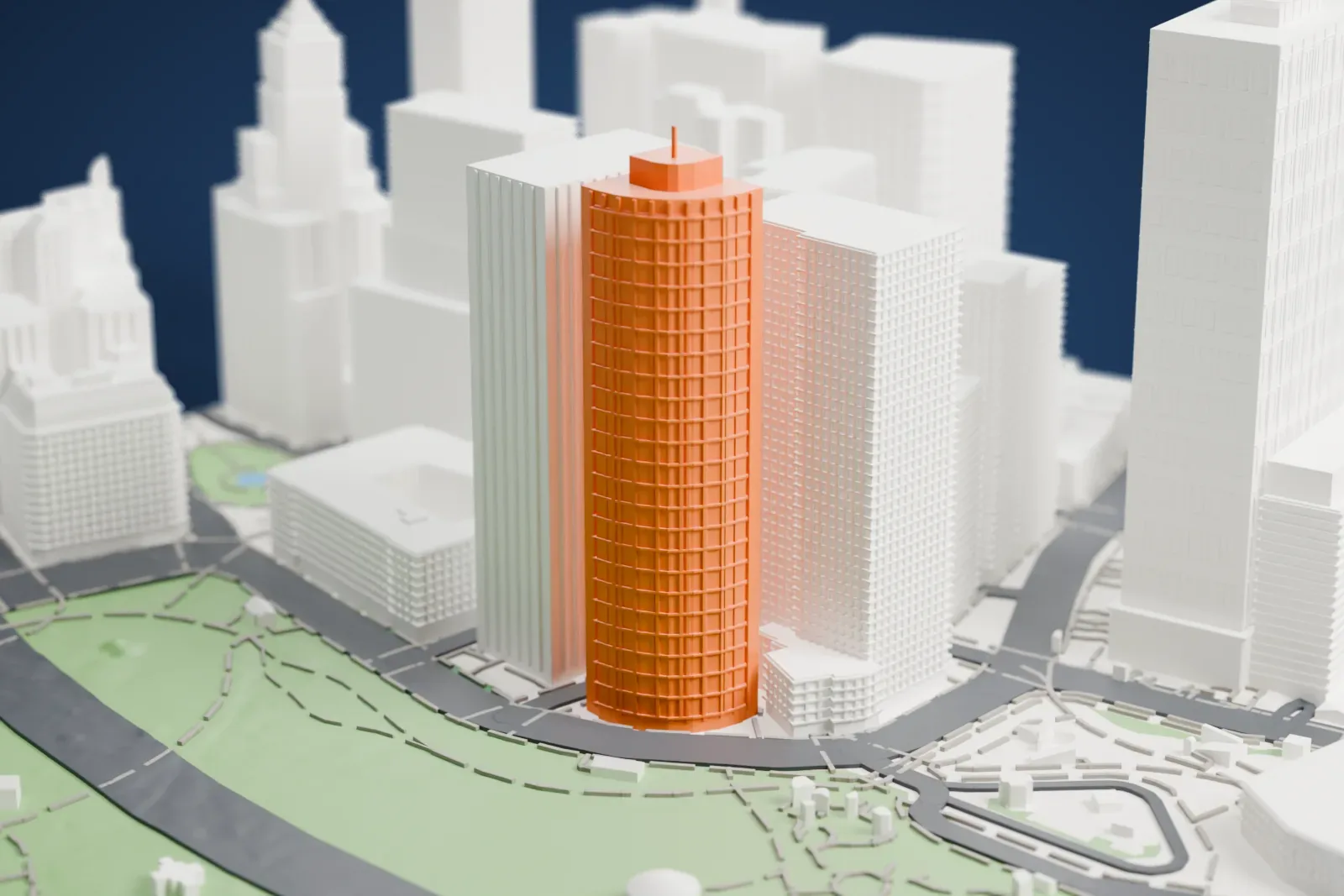

3D print 17 State Street
A free, printable model of 17 State Street and the park, streets and neighboring towers around it, generated from real map data in your browser.
Free, in your browser. Exports a slicer-ready 3MF.
About 17 State Street
The 42-story office building at 17 State Street faces Battery Park from the Financial District of Lower Manhattan, New York City. It was completed in 1988. Roy Gee of Emery Roth and Sons was the designer, working for two developers, JMB Realty and the William Kaufman Organization. The tower takes the form of a quarter round, and its curved glass facade faces New York Harbor.
Large aluminum columns ring the ground-level lobby and elevator hall. Alongside the lobby stood "New York Unearthed", a public exhibition space that the South Street Seaport Museum operated from 1990 to 2005. The exhibition space was built after a controversy about artifacts that might have been destroyed on the site. The total floor area is 525,000 ft2 (48,800 m2), and the floors were laid out with small tenants in mind.
The building was a speculative development. A 23-story Seamen's Church Institute headquarters, finished by 1969, stood there before it. Work on the current skyscraper began in 1985, and three years later, at completion, the building was nearly empty. Its position close to the southern end of Manhattan makes it visible from a distance.
How it prints
Make this print opens the generator on a 600 m square around the landmark. Buildings print at close to true scale, so the landmark grows with the print size.
| Print size | Landmark height | Scale |
|---|---|---|
| 160 mm default | 44 mm | 1:3,750 |
| 200 mm | 55 mm | 1:3,000 |
| 256 mm | 71 mm | 1:2,344 |
-

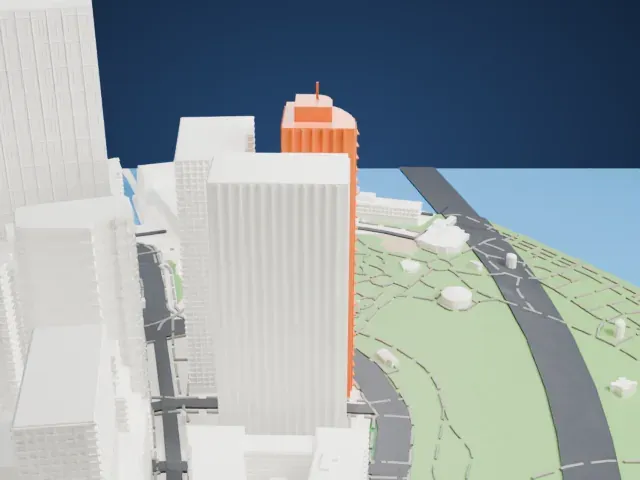

North
-

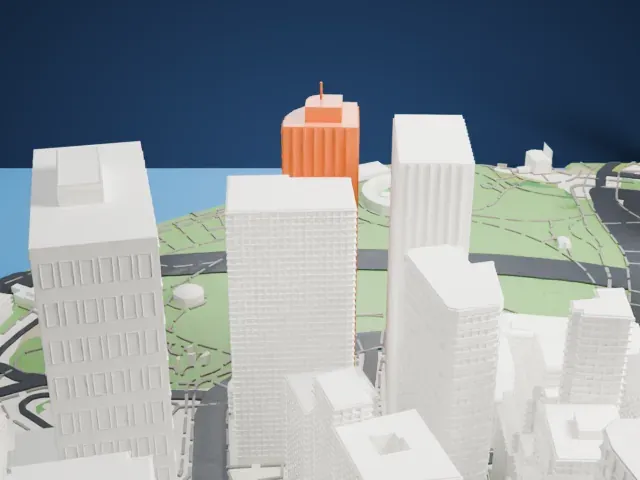

East
-

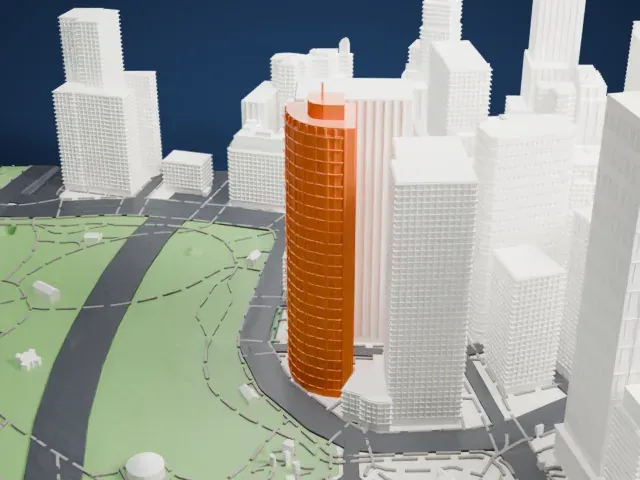

South
-

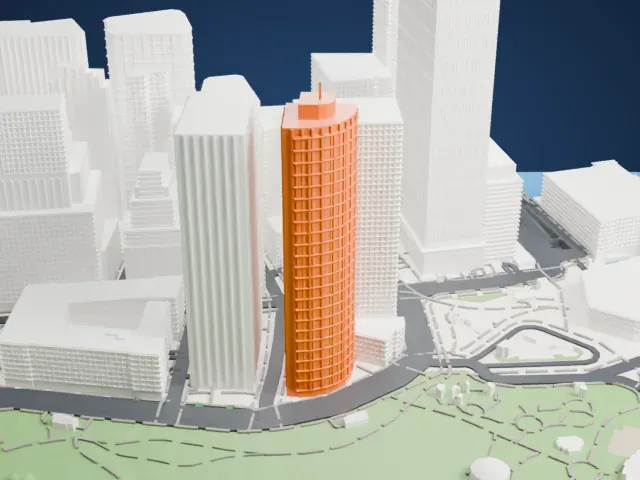

West
- Curved face and slim crown
- The sweeping curved front and the small stepped crown reward fine layers. Slice at 0.12–0.16 mm, and print slowly with good cooling for the tall, narrow shaft.
- Open columns at the base
- The angled supports at the foot are slender. A larger print or Full detail keeps them; Print friendly adapts them when the model is small.
- One piece with the ground
- 17 State Street is joined to the ground in the exported file, and the four-side check found no floating parts, so nothing needs gluing.
- Pick the detail for your nozzle
- In the Buildings settings, set Landmark detail to Print friendly to adapt thin parts and small details to the print scale. Full detail keeps every modeled feature, for larger prints or a finer nozzle.
- Colors
- Buildings, roads, water and ground arrive as separate filament slots in the 3MF. 17 State Street takes the building color.
- File format
- You get a 3MF for Bambu Studio, OrcaSlicer or PrusaSlicer. Any of them can save it as STL if you need one.
About this model
17 State Street is one of more than 2,300 landmark models in Mini Skyline. They are made with AI, and each one is checked from four sides in its real surroundings before release. Everything around it is built from OpenStreetMap and Overture map data. If you would rather print the shape from map data, turn off Landmark models in the Buildings settings.
Common questions
Is there a 17 State Street STL I can download?
Mini Skyline builds the file for you in your browser and exports 3MF, which every major slicer opens. If you need an STL, open the 3MF in your slicer and export it from there.
How big can I print it?
Any print size from 40 mm across. 17 State Street grows with the print: about 44 mm tall on the default 160 mm print. For a model larger than your printer bed, Project Mode splits the area into tiles.
Is it free?
Yes. Generation runs in your browser, with no account and nothing behind a paywall.
